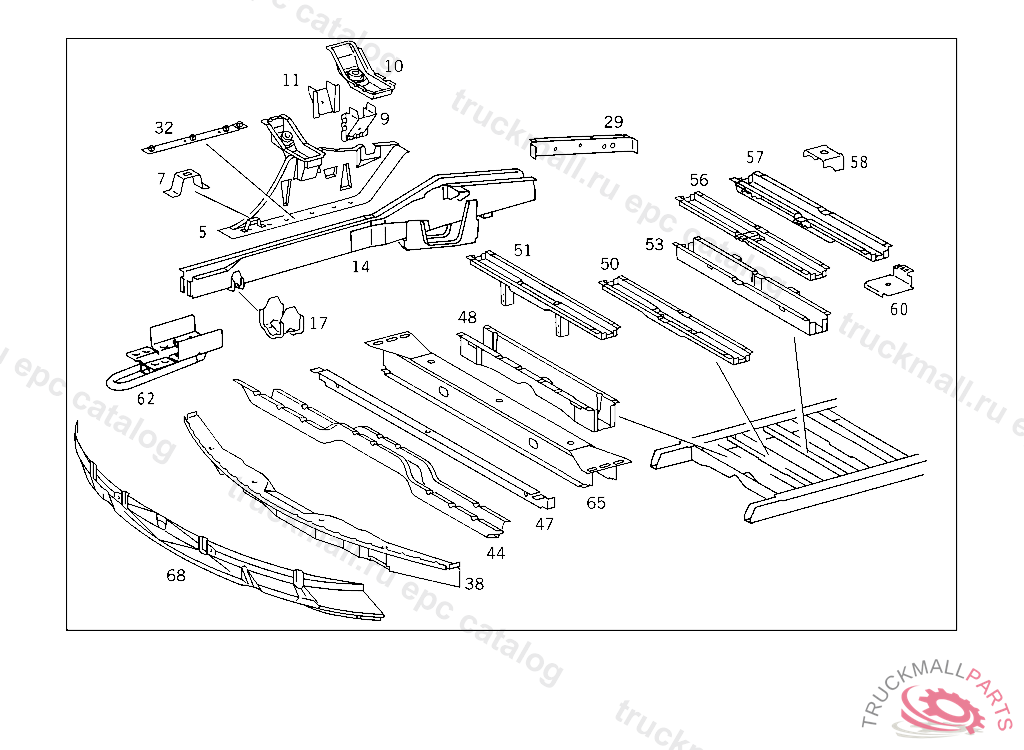

311 CDI,313 CDI - 690.641 - 31 FRAME
Поз.
Артикул
Описание
5
CONSOLE BODY SUPPORT,RIGHT
5
CONSOLE LEFT, TO BE PROCURED FROM MBA ONLY
7
BRACKET , Replaced By: A9013100063
7
CONSOLE
9
CONSOLE
10
REINFORCEMENT LEFT
10
REINFORCEMENT RIGHT
11
REINFORCEMENT
14
SIDE MEMBER RIGHT FRONT
14
SIDE MEMBER LEFT FRONT
17
CLAMP
29
BRACKET
32
RAIL FRONT LEFT AND RIGHT
38
CROSS MEMBERNO.1
44
CROSS MEMBER SEAT MOUNTING "2"
47
CROSS MEMBERNO.2A
48
CROSS MEMBERNO.3
48
CROSS MEMBERNO.3
56
CROSS MEMBERNO.6A.1
57
CROSS MEMBER , TO BE PROCURED FROM MBA ONLY
58
BODY SUPPORT
60
REINFORCEMENTTO A690 310 81 37
62
TOW HOOK AT RIGHT SIDE MEMBER
68
COVER
