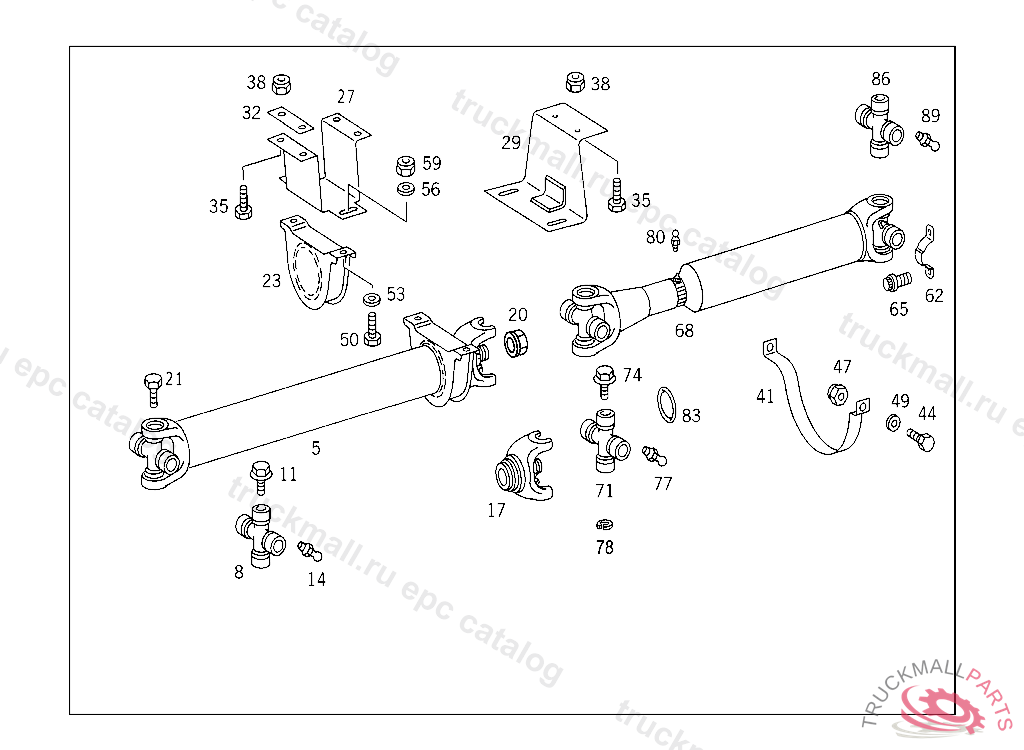

Поз.
Артикул
Описание
5
27
41
REBOUND STRAP
44
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
47
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
50
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
53
WASHER SUPPORT TO FRAME,D 127794
56
WASHER PROPELLER SHAFT TO BRACKET
59
NUT BRACKET TO SIDE MEMBER M12X1.5
62
CLAMP PROPELLER SHAFT TO TRANSMISSION
65
SCREW PROPELLER SHAFT TO TRANSMISSION
68
71
UNIVERSAL JOINT CROSS WITH BUSHINGS
74
SCREW
77
GREASE NIPPLE
80
GREASE NIPPLE
83
SEAL RING NOTE THREAD DIAMETER 2 1/4"
83
SEAL RING NOTE THREAD DIAMETER 2 1/2"
86
UNIVERSAL JOINT CROSS WITH BUSHINGS
89
GREASE NIPPLE
