Поз.
Артикул
Описание

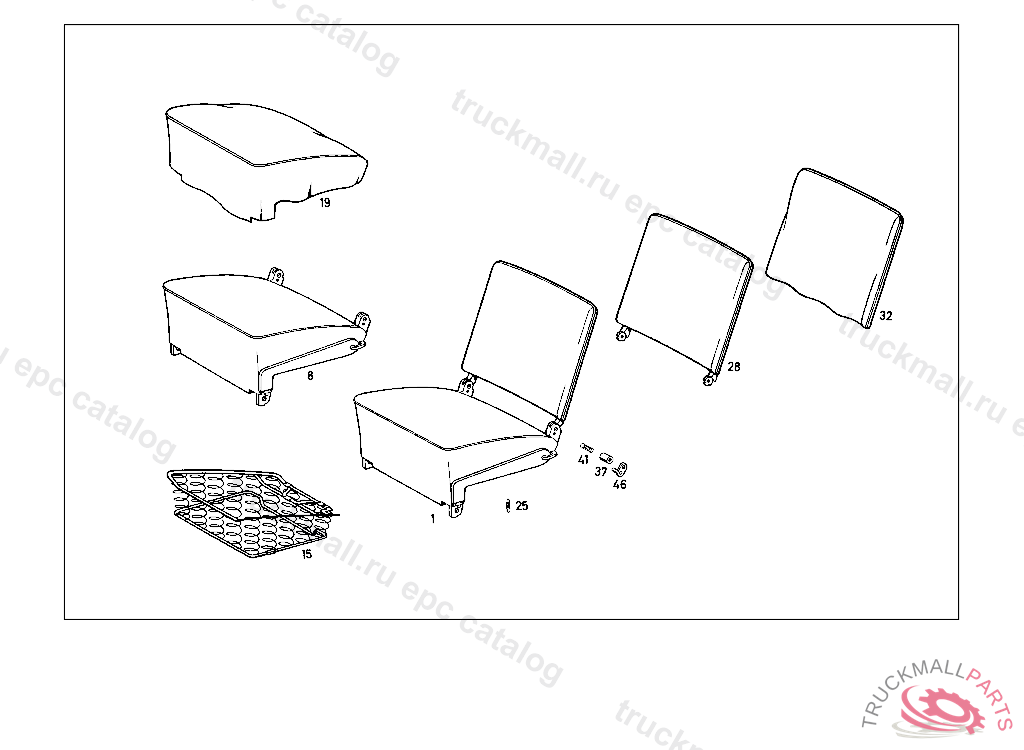

1
FOLDING SEAT LEFT
8
SEAT CUSHION LEFT
15
SPRING CORE LEFT
19
COVER LEFT
25
SPRING
28
BACKREST
32
COVER
37
BUSHING BACKREST TO SEAT FRAME
41
SPRING BACKREST TO SEAT FRAME
46
BRACKET BACKREST TO SEAT FRAME
999
LOCK WASHER T-FITTING TO BRACKET
999
COUNTERSUNK WASHER , FROM CHASSIS 002181
999
SHEET METAL SCREW BRACKET TO CAB
999
LOCK PLATE
999
NUT , 023 005178 043 009444
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
COVER RIGHT
999
COVER LEFT
999
COVER RIGHT
999
SEAT CUSHION RIGHT
999
SEAT CUSHION FRAME RIGHT, FROM CHASSIS 002181
999
FOLDING SEAT RIGHT
999
SEAT CUSHION LEFT
999
PANELLING LEFT, FROM CHASSIS 002181
999
FOLDING SEAT LEFT
999
COVER
999
BACKREST
999
SEAT CUSHION RIGHT
999
FOLDING SEAT RIGHT
999
SPRING CORE RIGHT
