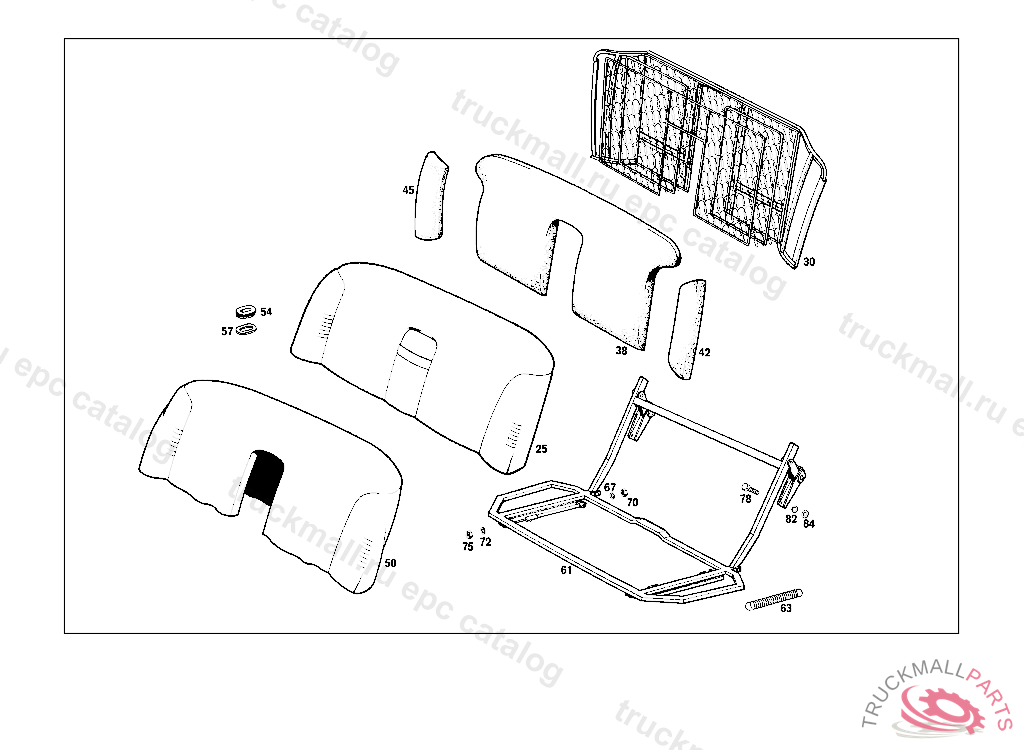

Поз.
Артикул
Описание
25
BACKREST DRALON-VELOURS, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000007 GREY: UP TO CHASSIS 000672, BLUE: UP TO CHASSIS 000598, BEIGE: UP TO CHASSIS 000567, GREY-BEIGE: UP TO CHASSIS 000610, 012, GR EEN-BEIGE: UP TO CHASSIS 000969
30
BACKREST FRAME , FROM CHASSIS 000007-001557
38
PAD VELOURS, FROM CHASSIS 000007-001557
42
INSERT
45
INSERT
50
COVER DRALON-VELOURS, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000007 GREY: UP TO CHASSIS 000672, BLUE: UP TO CHASSIS 000598, BEIGE: UP TO CHASSIS 000567, GREY-BEIGE: UP TO CHASSIS 000610, 012, GR EEN-BEIGE: UP TO CHASSIS 000969
54
EYE
54
EYE , Replaced By: A1269880182
57
EYE , Replaced By: A1239880382
57
EYE
61
SEAT ADJUSTER
63
SPRING ,000110
67
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
70
NUT
70
NUT , Replaced By: N304032008006
72
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
75
NUT BALL PIVOT TO LEVER
78
SCREW , Replaced By: N304017008034
78
SCREW BRACKET TO CROSS CONNECTION STRUT
82
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
84
WASHER , Replaced By: N000125008443
84
WASHER EXHAUST MUFFLER TO STRAP
999
NUT
999
SCREW LICENSE PLATE TO BRACKET
999
CAP NUT SWITCH TO CAB FRONT PANEL
999
SCREW DISTRIBUTOR TO CAB
999
SCREW , Replaced By: N304017006020
999
SCREW SPRING STOP
999
NUT , Replaced By: N304035008001
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
PAD ,001558
999
PAD VELOURS, FROM CHASSIS 001558
999
PAD OUTSIDE RIGHT
999
PAD OUTSIDE LEFT
999
COVER WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING001558
999
COVER WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING001558
999
COVER WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING GREY: FROM CHASSIS 000673, BLUE: FROM CHASSIS 000599, BEIGE: FROM CHASSIS 000568, GREY-BEIGE: FROM CHASSIS 000611, 012, GREEN- BEIGE: FROM CHASSIS 000970001557
999
BACKREST FRAME
999
COVER WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING GREY: FROM CHASSIS 000673, BLUE: FROM CHASSIS 000599, BEIGE: FROM CHASSIS 000568, GREY-BEIGE: FROM CHASSIS 000611, 012, GREEN- BEIGE: FROM CHASSIS 000970001557
999
BACKREST FRAME , EXHAUST STOCK OF OLD PARTS, FROM CHASSIS 001558-002174 EXCEPT FOR 002169,002172,002173, Replaced By: A1009201532
999
BACKREST WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 001558
999
BACKREST WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING GREY: FROM CHASSIS 000673, BLUE: FROM CHASSIS 000599, BEIGE: FROM CHASSIS 000568, GREY-BEIGE: FROM CHASSIS 000611, 012, GREEN- BEIGE: FROM CHASSIS 000970001557
999
REAR SEAT CUSHION WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING001558
999
BACKREST , Replaced By: A1009201130
999
REAR SEAT CUSHION WOOL-VELOURS, STATE COLOR NUMBER WHEN ORDERRING GREY: FROM CHASSIS 000673, BLUE: FROM CHASSIS 000599, BEIGE: FROM CHASSIS 000568, GREY-BEIGE: FROM CHASSIS 000611, 012, GREEN- BEIGE: FROM CHASSIS 000970001557
999
SPRING CORE , Replaced By: A1009200440
999
CLIP COVER TO REAR SEAT BENCH BACKREST FRAME, 010 UP TO CHASSIS 068345, 110 UP TO CHASSIS 105977
999
CLIP BLOWER COVERING
999
CLIP COVER TO PAD
