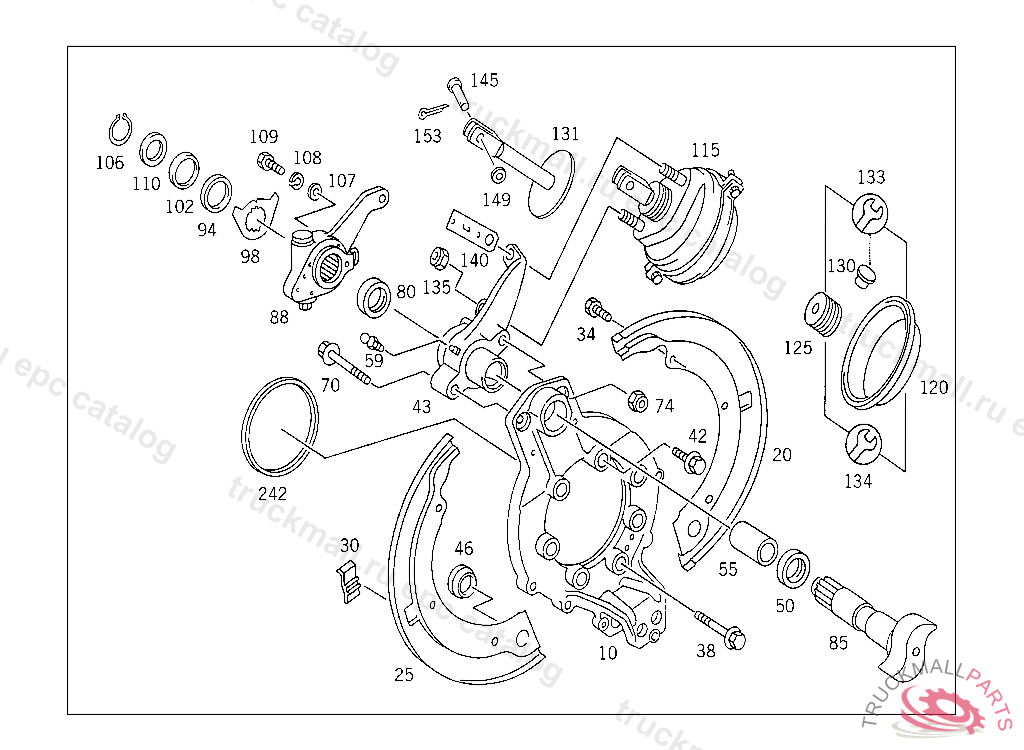

Поз.
Артикул
Описание
10
BRAKE ANCHOR (BRAKE ANCHOR)
20
PROTECTIVE PLATE , Replaced By: A6954200044
25
PROTECTIVE PLATE , Replaced By: A6954200044
30
PLUG PROTECTIVE PLATE
34
SCREW BRACKET TO STEERING
38
SCREW , Replaced By: A3469902604
38
SCREW , Replaced By: A3469900904
42
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
42
SCREW BRAKE ANCHOR TO AXLE CASING
43
BEARING BRACKET , Replaced By: A6234202278
43
BRAKE ANCHOR RIGHT
43
BEARING BRACKET , Replaced By: A6234201978
43
BEARING BRACKET , Replaced By: A6234202078
43
BEARING BRACKET , Replaced By: A6524200978
43
BEARING BRACKET , Replaced By: A6524201078
43
BEARING BRACKET
43
BEARING BRACKET , Replaced By: A6234202078
43
BEARING BRACKET , Replaced By: A6524211206
46
SEAL RING , Replaced By: A0129973747
46
SEAL RING , Replaced By: A0129973647
46
SEAL RING OUTSIDE BEARING BRACKET
46
SEAL RING OUTSIDE BEARING BRACKET
46
SEAL RING OUTSIDE BEARING BRACKET
50
SEAL RING INSIDE BEARING BRACKET
50
SEAL RING INSIDE BEARING BRACKET
50
SEAL RING , Replaced By: A0149972247
50
SEAL RING INSIDE BEARING BRACKET
50
SEAL RING , Replaced By: A0129974147
55
BUSHING INSIDE
55
BUSHING OUTSIDE
59
GREASE NIPPLE , Replaced By: N071412008102
70
SCREW BEARING BRACKET TO BRAKE ANCHOR
74
NUT BEARING BRACKET TO BRAKE ANCHOR
74
NUT , Replaced By: A0009905750
80
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
85
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
85
BRAKE CAMSHAFT , Replaced By: A6234210136
85
BRAKE CAMSHAFT , Replaced By: A6234210236
85
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
88
ADJUSTER
94
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
94
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
94
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
94
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
98
STOP WASHER ADJUSTER TO BEARING BRACKET
102
SPACER WASHER ADJUSTER
106
LOCK RING CLUTCH LEVER TO PEDAL SHAFT
115
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
115
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) BOSCH
115
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) GRAU
115
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
120
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
120
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
120
DIAPHRAGMTO 008 420 61 18,009 420 22 18
120
DIAPHRAGM , Replaced By: A0004314128
120
DIAPHRAGM , Replaced By: A0004314128
120
DIAPHRAGMBOSCH, Replaced By: A0004314028
125
CUPBOSCH/WABCO
125
CUPTO 007 420 68 18,WABCO
125
DIAPHRAGMTO 007 420 42 18,KNORR
125
CUPGRAU
130
PLUGTO 694 420 71 18/72 18
130
PLUGTO 009 420 22 18,008 420 20 18
131
PISTONTO 006 420 94 18,BOSCH
135
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
140
BRACKET LINE TO REAR AXLE, NOT USED
145
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
145
PIN , Replaced By: A3619910005
149
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
153
COTTER PIN STRAP TO SUPPORT
242
OIL BAFFLE (BRAKE ANCHOR)
999
YOKE BRAKE CYLINDER
999
ROLLER , Replaced By: A3354200039
999
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
999
SEAL RING BRAKE CAMSHAFT BEARING
