Поз.
Артикул
Описание

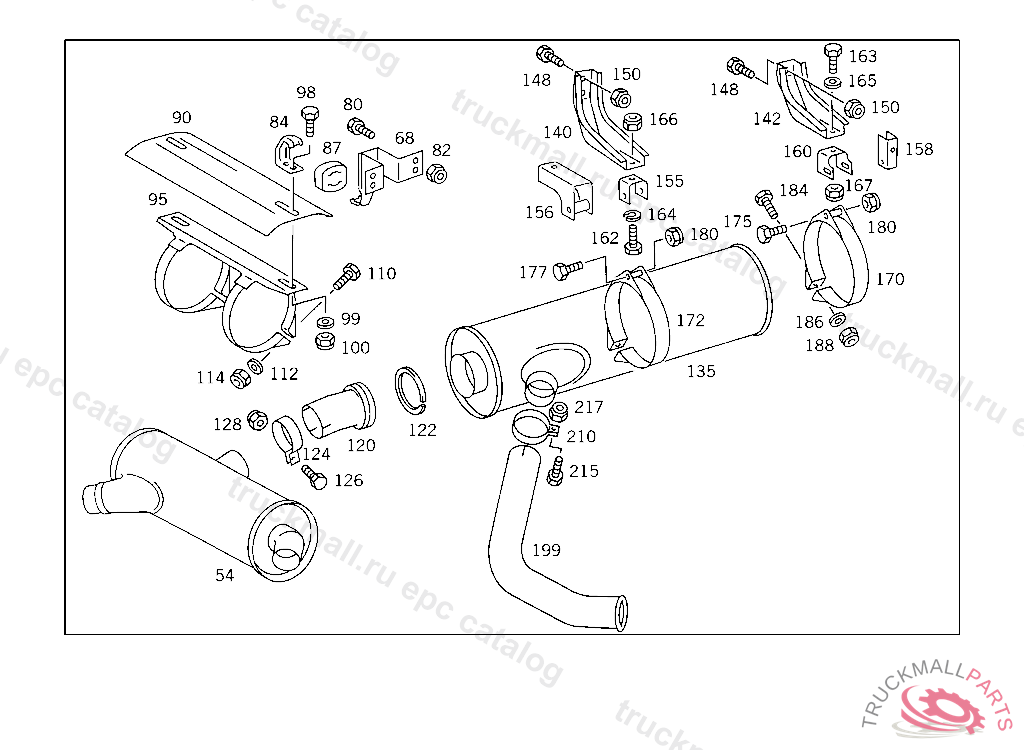

54
EXHAUST MUFFLER FRONT,5 193594
68
SUPPORT PARTICLE FILTER,FRONT
80
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
80
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
82
NUT BRACKET TO SIDE MEMBER
84
BRACKET PARTICLE FILTER
87
DAMPING PAD PARTICLE FILTER
90
PROTECTIVE PLATE EXHAUST MUFFLER SUSPENSION,5 129244
95
SUPPORT FRONT EXHAUST MUFFLER,5 193594
98
SCREW PIPE CLAMP
99
WASHER EXHAUST MUFFLER TO STRAP
100
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW SHOCK ABSORBER TO CONSOLE
112
WASHER EXHAUST MUFFLER TO STRAP
114
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
EXHAUST PIPE FRONT AND REAR EXHAUST MUFFLERS,5 129244
122
SEAL RING ,5 193594
124
CLAMP EXHAUST PIPE
126
SCREW END PIECE TO EXHAUST PIPE M 10X25
128
NUT STRAP TO BRACKET
135
EXHAUST MUFFLER REAR
140
CONSOLE REAR EXHAUST MUFFLER 178 MM
142
CONSOLE REAR EXHAUST MUFFLER 132 MM
148
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
150
NUT SUPPORT TO SIDE MEMBER
155
BRACKET EXHAUST MUFFLER
162
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
163
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
165
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
166
NUT STRAP TO BRACKET
167
NUT BRACKET TO SIDE MEMBER
170
STRAP EXHAUST MUFFLER TO BRACKET
175
SCREW STRAP TO BRACKET
180
NUT STRAP TO BRACKET
184
SCREW EXHAUST MUFFLER TO STRAP
186
WASHER EXHAUST MUFFLER TO STRAP
188
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
210
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
215
SCREW BRACKET TO SIDE MEMBER
217
NUT STRAP TO BRACKET
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
