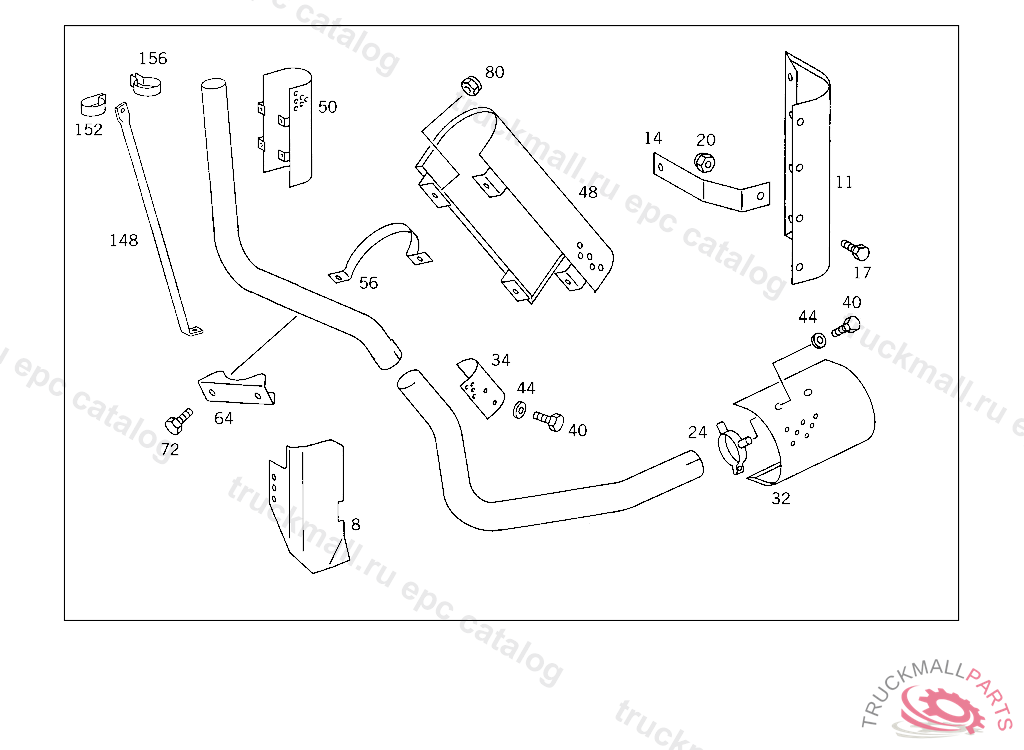

Поз.
Артикул
Описание
8
PROTECTIVE PLATE PROTECTIVE PLATE TO BRACKET
11
PROTECTIVE PLATE FRONT EXHAUST PIPE
14
BRACKET PROTECTIVE PLATE TO BRACKET
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
24
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
24
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
32
PROTECTIVE PLATE TOP 255 MM
32
PROTECTIVE PLATE275 MM
34
PROTECTIVE PLATE
40
SCREW , Replaced By: N304017008039
40
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
44
WASHER , Replaced By: N000125008443
44
WASHER EXHAUST MUFFLER TO STRAP
48
PROTECTIVE PLATE , Replaced By: A6594900330
48
PROTECTIVE PLATE (HEAT SHIELD)
48
PROTECTIVE PLATE
50
PROTECTIVE PLATE (HEAT SHIELD)
56
CLAMP , Replaced By: A6204901341
56
CLAMP , Replaced By: A3464920040
56
CLAMP EXHAUST PIPE TO BRACKET
56
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE,TOP
64
BASE PLATE HEAT SHIELD TO TAILPIPE
72
SCREW PIPE CLAMP
72
SCREW , Replaced By: N304017008021
80
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
NUT , Replaced By: N913004008001
148
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 464366, Replaced By: A6554901140
152
CLAMP STRUT TO EXHAUST PIPE
156
CLAMP EXHAUST PIPE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SCREW , Replaced By: N304017010002
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE , NOT USED
999
CLAMP , Replaced By: A6454900341
999
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3184924841
