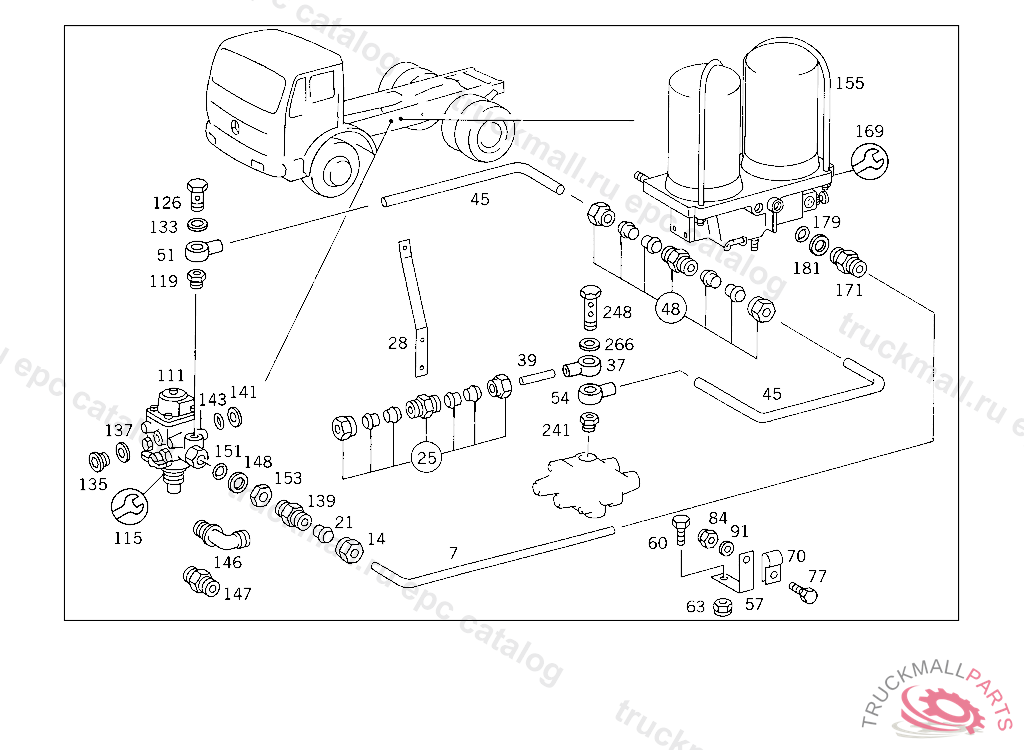

Поз.
Артикул
Описание
7
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
14
UNION NUT BUTT SCREW CONNECTION
14
UNION NUT BUTT SCREW CONNECTION
14
UNION NUT LINE CONNECTION
21
GLAND LINE CONNECTION
21
GLAND LINE CONNECTION
25
FITTING , Replaced By: A0029906171
25
FITTING (PARTS KIT),LINE RUPTURE
28
BRACKET BREATHER LINE
37
BANJO UNION , Replaced By: N915052009009
37
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
39
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
45
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
48
FITTING , Replaced By: A0029905971
48
FITTING (PARTS KIT),LINE RUPTURE
51
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
54
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
57
ANGLE LINE MOUNTING
57
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
60
SCREW , Replaced By: A4609900601
60
SCREW EXHAUST PIPE TO BRACKET
60
SCREW , Replaced By: N304017008027
60
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
60
SCREW EXHAUST PIPE TO BRACKET
60
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
63
NUT , Replaced By: N913004008001
63
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
CLAMP , Replaced By: A6739950001
70
CLAMP DELIVERY AND SUCTION LINES TO STEERING
77
SCREW , Replaced By: N304017006020
77
SCREW LICENSE PLATE TO BRACKET
84
NUT , Replaced By: N910113006001
84
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
84
NUT , Replaced By: N913004006001
84
NUT PUMP TO BRACKET
91
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
91
WASHER COMPRESSED AIR LINE TO BRACKET
111
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
111
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
111
VALVE ,5 161700, Replaced By: A0024314706
111
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
111
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
111
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
111
PRESSURE REGULATOR ,5 161700, Replaced By: A0024314606
111
PRESSURE REGULATORKNORR
111
PRESSURE REGULATORWABCO
111
PRESSURE REGULATORKNORR
115
REPAIR KIT , Replaced By: A0004301107
115
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
115
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
115
REPAIR KIT DIAPHRAGM PART BOSCH,209
115
REPAIR KIT SEAL RING BOSCH,209
115
REPAIR KIT PRESSURE REGULATOR BOSCH,241
115
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
115
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
115
REPAIR KIT DIAPHRAGM PART BOSCH,209
115
REPAIR KIT SEAL RING BOSCH,209
115
REPAIR KIT PRESSURE REGULATOR BOSCH,241
115
REPAIR KIT PRESSURE REGULATOR WABCO
115
REPAIR KIT PRESSURE REGULATOR KNORR
115
REPAIR KIT PRESSURE REGULATOR KNORR
119
FITTING PRESSURE REGULATOR,CONNECTION: "4",5 161700
119
FITTING PRESSURE REGULATOR,CONNECTION: "4",5 161700
126
HOLLOW SCREW HEATING CONNECTION
126
HOLLOW SCREW HEATING CONNECTION
133
SEAL RING LINE CONNECTION
133
SEAL RING LINE CONNECTION
135
SCREW PLUG , Replaced By: N000908012009
135
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
137
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
139
FITTING AIR RESERVOIR,CONNECTION: "13"
139
FITTING AIR RESERVOIR,CONNECTION: "13"
139
FITTING AIR RESERVOIR,CONNECTION: "13"
139
FITTING AIR RESERVOIR,CONNECTION: "13"
141
THRUST RING BUTT SCREW CONNECTION
141
THRUST RING BUTT SCREW CONNECTION
143
SEAL RING , Replaced By: N007603012121
143
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
143
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
146
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
146
ELBOW FITTING ,5 433281
147
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
148
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
148
THRUST RING CHECK VALVE TO AIR RESERVOIR
148
THRUST RING CHECK VALVE TO AIR RESERVOIR
151
O-RING CHECK VALVE TO AIR RESERVOIR
151
O-RING CHECK VALVE TO AIR RESERVOIR
153
NUT CHECK VALVE TO AIR RESERVOIR
153
NUT CHECK VALVE TO AIR RESERVOIR
155
AIR DEHYDRATOR
169
REPAIR KIT CHECK VALVE WABCO
169
REPAIR KITWABCO
171
FITTING AIR RESERVOIR,CONNECTION: "13"
179
O-RING CHECK VALVE TO AIR RESERVOIR
181
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
181
THRUST RING CHECK VALVE TO AIR RESERVOIR
241
FITTING AIR RESERVOIR,CONNECTION: "11"
248
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
266
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
COVERING ANTI-FREEZE DEVICE,6 900023
999
BATTERY SUPPORT , Replaced By: A6165400316
999
BRACKET AIR CLEANER,5 088361
999
RUBBER SECTION , Replaced By: A3634750320
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FILTER , Replaced By: A0004315934
999
RESERVOIR , Replaced By: A0034321201
999
RESERVOIR , Replaced By: A0014327501
999
ANTI-FREEZE DEVICE , Replaced By: A0004314615
999
AIR CLEANERBOSCH
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
