Поз.
Артикул
Описание

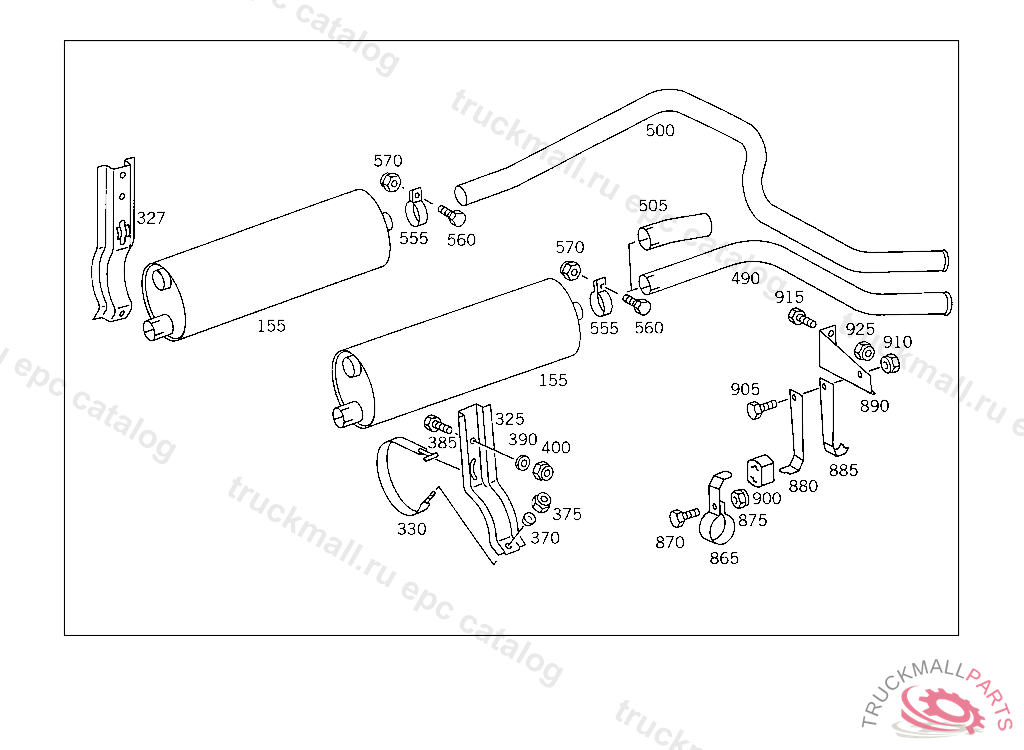

155
EXHAUST MUFFLER LEFT AND RIGHT,4 913283
325
BRACKET EXHAUST MUFFLER SUSPENSION
325
BRACKET EXHAUST MUFFLER SUSPENSION
325
BRACKET EXHAUST MUFFLER SUSPENSION
330
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
370
SPHERICAL WASHER STRAP TO BRACKET
375
NUT STRAP TO BRACKET
375
NUT , Replaced By: N910113010000
385
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
390
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
400
NUT BRACKET TO SIDE MEMBER
400
NUT , Replaced By: N910113014001
490
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
490
REAR EXHAUST PIPE LEFT
500
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT,5 149102
500
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827815
500
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827814
505
REAR EXHAUST PIPE ,5 193595
555
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
560
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
570
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
865
BRACKET RUBBER BUFFER,5 129244
865
BRACKET RUBBER BUFFER,5 129244
870
SCREW BRACKET TO SIDE MEMBER
870
SCREW BRACKET TO SIDE MEMBER
870
SCREW , Replaced By: N304017010002
875
NUT STRAP TO BRACKET
875
NUT STRAP TO BRACKET
875
NUT , Replaced By: N910113010000
880
BRACKET TAIL PIPE ON THE RIGHT
880
BRACKET TAIL PIPE ON THE RIGHT
885
BRACKET TAIL PIPE ON THE RIGHT
885
BRACKET TAIL PIPE ON THE RIGHT
890
BRACKET REAR EXHAUST PIPE TO FRAME
890
BRACKET EXHAUST PIPE TO SIDE MEMBER
900
DAMPING PAD PARTICLE FILTER
900
DAMPING PAD PARTICLE FILTER
905
SCREW PIPE CLAMP
905
SCREW , Replaced By: N304017008021
910
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
910
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
910
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
910
NUT , Replaced By: N913004008001
915
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
915
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
915
SCREW , Replaced By: N308676014020
925
NUT SUPPORT TO SIDE MEMBER
925
NUT BRACKET TO SIDE MEMBER
925
NUT , Replaced By: N910113014001
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
