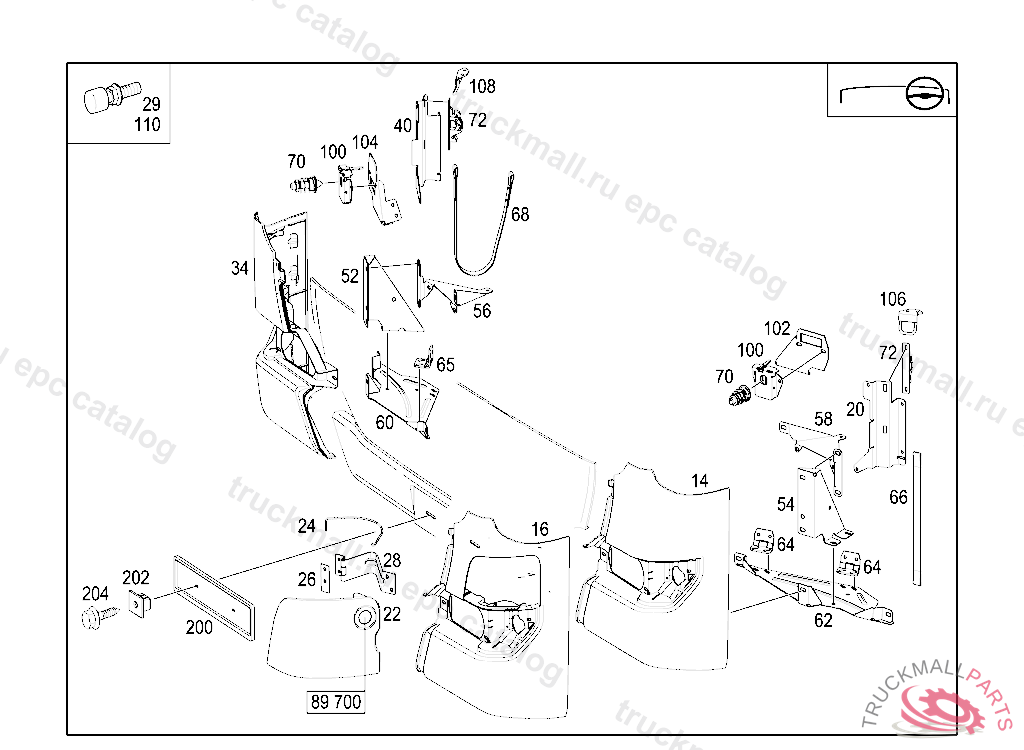

O530 - CITARO 12M, 2-TUERER - 628.083 - 88 ATTACHMENT PARTS
Поз.
Артикул
Описание
14
CORNER SECTION
14
BUMPERETTE
16
BUMPERETTE
16
BUMPERETTE
20
ANGLE
22
COVERING
22
COVERING
24
SPRING
26
BRACKET
28
HINGE
29
BUFFER LEFT, FROM CHASSIS: 010 077937
34
BUMPERETTE
40
ANGLE
52
BRACKET
54
BRACKET
56
BRACKET FOGLAMP
58
BRACKET FOGLAMP
60
BRACKET
62
BRACKET
64
HINGE
65
HINGE
66
BAND
68
BAND
68
BAND
70
FASTENER BUMPER
72
LOCK
100
FASTENER
102
BRACKET
104
BRACKET
106
BRACKET
108
BRACKET
110
BUFFER LEFT, FROM CHASSIS: 010 077937
200
BRACKET LINCENSE PLATE BRACKET
202
LOCK LICENSE PLATE TO BUMPER
204
COMBINATION BOLT VACUUM LINE TO SHOCK ABSORBER CONSOLE
999
LOCK. NUT , Replaced By: A0039941745
999
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
