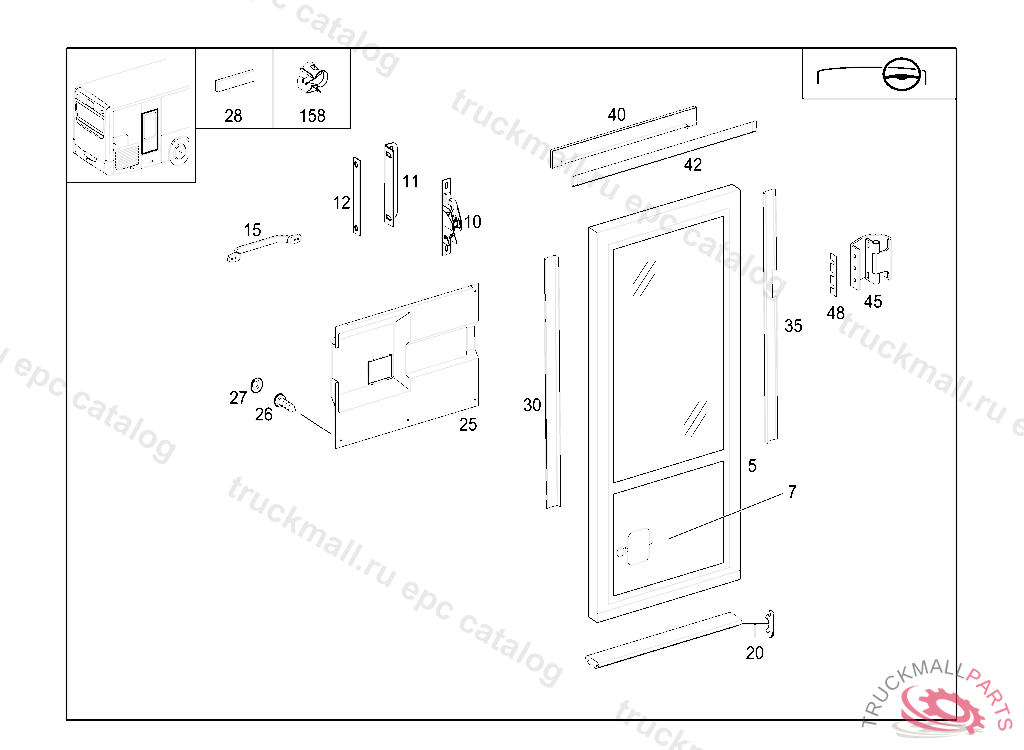

O530 - CITARO 12M, 2-TUERER - 628.083 - 73 DOORS
Поз.
Артикул
Описание
5
DOOR SHELL , NO.7365 INO.5856 INO.7327 IIII
7
PANELLING
10
LOCK (LOCK),LESS KEY
11
BRACKET LOCK
12
SHIM LOCK
15
HANDLE LEFT AND RIGHT, NO.7365I.......I.......I.......I.......I....... I
20
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
25
COVERING
26
SHEET METAL SCREW42X16
27
LOCKING CAP
28
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
30
COVERING LEFT
35
COVERING RIGHT
40
COVERING TOP
42
DRIP MOULDING
45
HINGE BOTTOM
45
HINGE TOP
48
SPACER ELEMENT
158
CLIP
999
VALVE 3/2-WAY VALVE
999
DOOR LOCK COMPLETE
