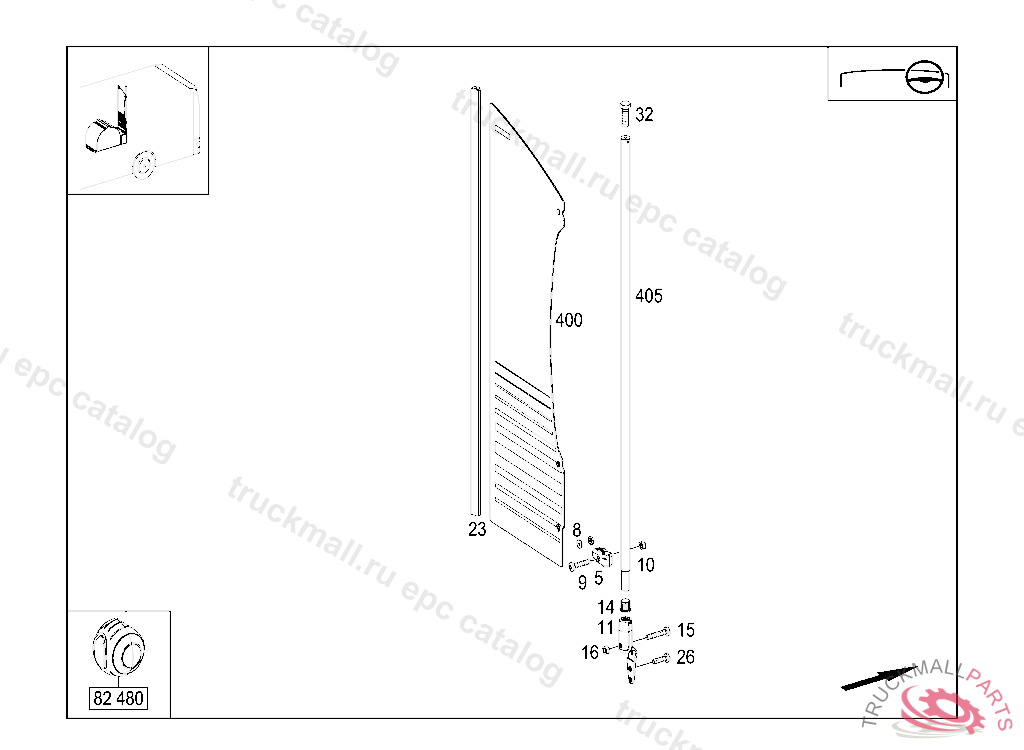

O530 - CITARO 12M, 2-TUERER - 628.083 - 71 PARTITION PANELS
Поз.
Артикул
Описание
5
BRACKET , .......I.......INO.7E87I.......I II
5
BRACKET , .......I.......INO.7E87I.......I
8
RUBBER SLEEVE
9
HEXALOBULAR BOLT
10
HEXAGON NUT. NUT L.H. THREAD
11
BRACKET
14
BUSHING
15
HEXALOBULAR BOLTM8X45
16
HEXAGON NUT. NUT L.H. THREAD
23
RUBBER SECTION GLASS PANE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
26
HEXALOBULAR BOLTM8X30
32
SCREW AT GRIP RAIL
400
GLASS PANE DOOR I ENTRANCE
405
GRIP RAIL , .......I.......INO.7E87I.......I
