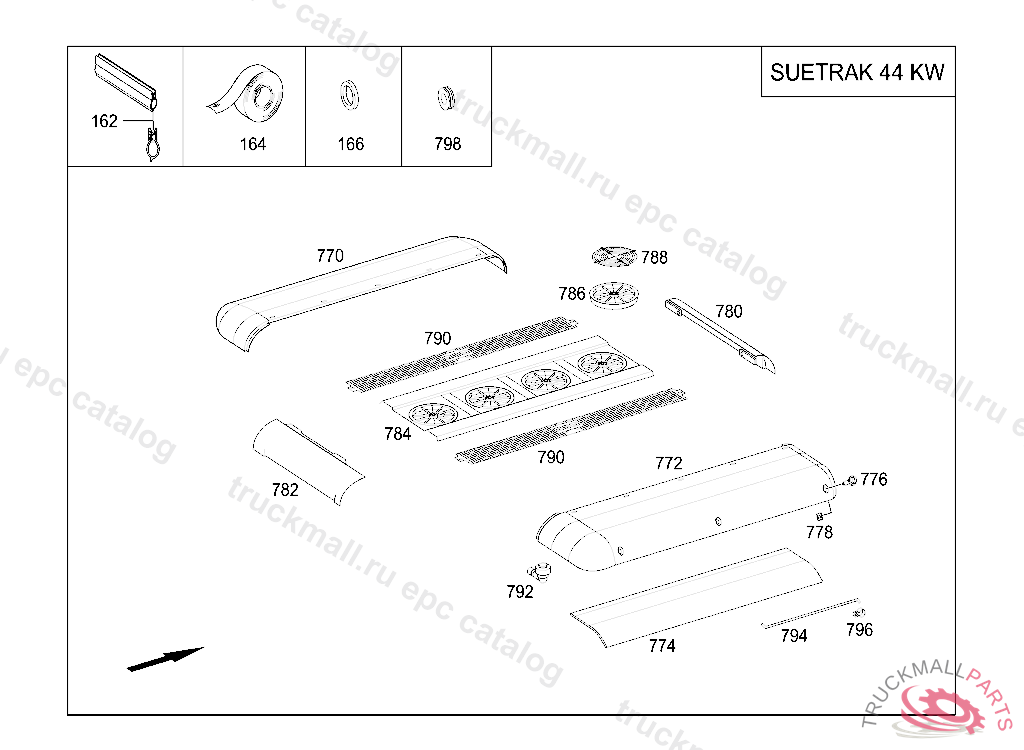

O530 - CITARO 12M, 2-TUERER - 628.083 - 83 HEATING AND VENTILATION

Поз.
Артикул
Описание
162
A6289871051
RUBBER SEAL
162
A6289870051
RUBBER SEAL
164
A0069896285
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
166
A0009979149
GASKET34X42 MM
770
A6288300713
COVER LEFT
772
A6288300613
COVER RIGHT
774
A0008352381
INSULATION
776
A0008310911
LOCKING PIN
778
A0029919070
RETAINING CLIP
780
A6288300913
COVER FRONT
782
A6288300813
COVER REAR
784
A0008302852
COVERING
786
A0038302408
AXIAL FAN
788
A0008355018
GRILLE
790
A0008800185
RADIATOR GRILLE
792
A0018320525
PIPE SOCKET
794
A0008800032
SUPPORT
796
A0019950202
CLAMP
798
A0009986205
GROMMET
798
A0009986105
GROMMETD32
999
A0005422292
CONNECTOR
999
A0005462318
COIL SOLENOID VALVE
999
A0008331520
LINK
999
A0008331620
LINK
999
A0008351588
ADHESIVE LABEL DO NOT ENTER
999
A0008360878
HOSE
999
A0009911871
RETAINING CLIP
999
A0009980222
PROTECTIVE CAP
999
A0029910770
CLIP
