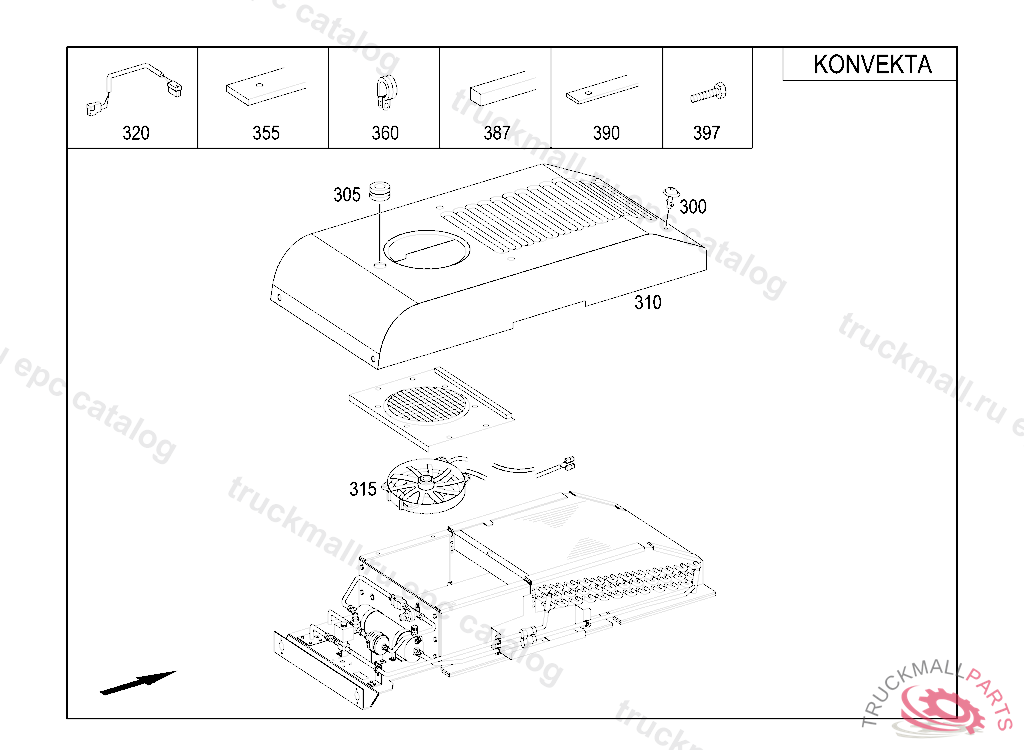

O530 - CITARO 12M, 2-TUERER - 628.083 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
300
PIN
305
GROMMET, OPEN, SMOOTH. GROMMET
310
COVERING
315
VENTILATOR
320
CABLE HARNESS
355
SEALING STRIP2000X100X10 MM, TO BE ADAPTED DURING ASSEMBLY
360
CLAMP12 - 15 MM
387
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
390
SEALING STRIP2000X30X10 MM, TO BE ADAPTED DURING ASSEMBLY
397
SCREW BRACKET TO CAB REAR PANEL M 8X20
999
CLIP
999
PROTECTIVE CAP
999
RETAINING CLIP
999
HOSE
999
ADHESIVE LABEL DO NOT ENTER
999
LINK
999
LINK
999
COIL SOLENOID VALVE
999
CONNECTOR
