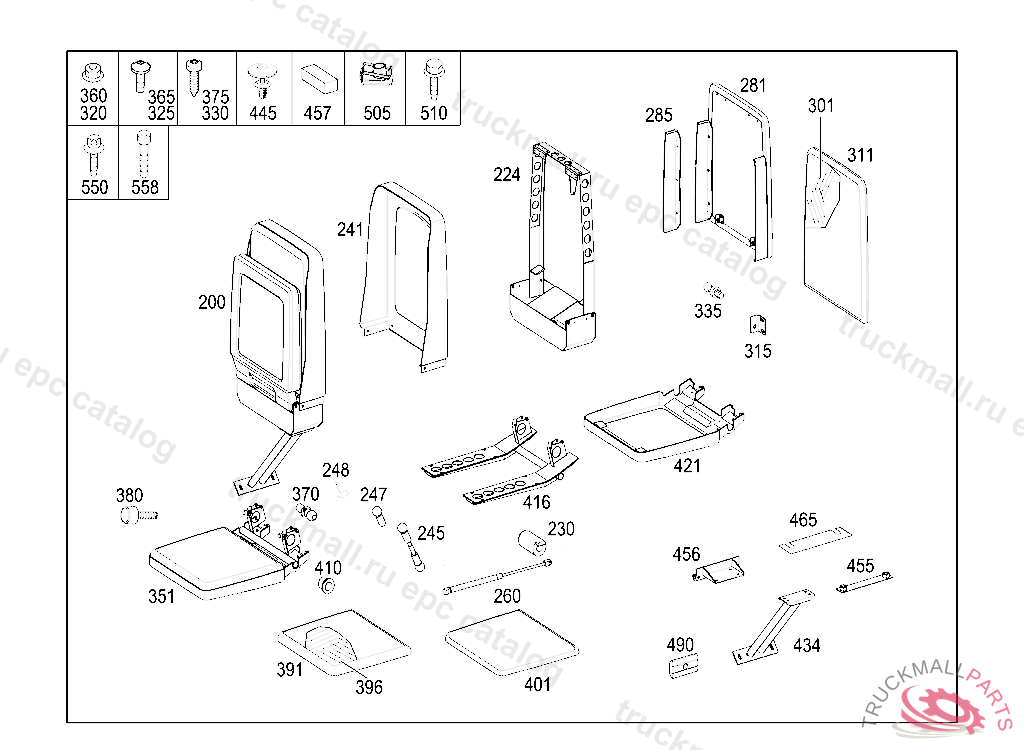

Поз.
Артикул
Описание
200
FOLDING SEAT SINGLE FOLDING SEAT, LEFT LATERAL TO DIRECTION OF TRAVEL
224
SEAT FRAMEWORK INDIVIDUAL FOLDING SEAT
230
SUPPORT SEAT FRAMEWORK
241
PANELLING BACKREST
241
PANELLING
245
ROD
247
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
248
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
260
GAS PRESSURE SPRING BACKREST
281
BACKRESTTO A6289300005 / A6289300105
285
COVERING LEFT, .......INO.7E86I.......I.......I II
285
COVERING RIGHT, .......INO.7E86I.......I.......I II
301
COVER , STATE COLOR WHEN ORDERING
311
PAD
315
ANGLE
320
NUT , Replaced By: N913023006001
325
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
330
TAPPING SCREW4,2X16
335
BALL PIVOT ACCELERATOR PEDAL,4 859026
351
SEAT CUSHIONTO A6289300005 / A6289300105
360
NUT BRACKET TO FIRE WALL
360
NUT , Replaced By: N913023006001
365
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
370
BALL PIVOT ACCELERATOR PEDAL,4 859026
375
TAPPING SCREW CONTROL UNIT TO FIRE WALL
380
BUFFER , Replaced By: A2019880511
391
SEAT CUSHIONTO A6289300621
396
COVER , STATE COLOR WHEN ORDERING
401
PAD
410
BUSHING
416
SEAT CUSHION FRAME
421
COVERING
434
SEAT BASE
445
RIVET COVERING TO BODY
455
PLATE
456
SUPPORT
457
MOUNTING STRIP80X30X20
465
PLATE TOLERANCE COMPENSATION
490
PLATE
505
NUT RETAINER , Replaced By: A3229900091
505
NUT RETAINER , Replaced By: A0019944745
510
SCREW , Replaced By: N910143008000
510
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
510
SCREW SHIFT LEVER TO BRACKET M8X30
510
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
510
SCREW , Replaced By: N914146006102
550
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
558
SCREWM8 X 16 MM
999
ADHESIVE TAPE15X4
