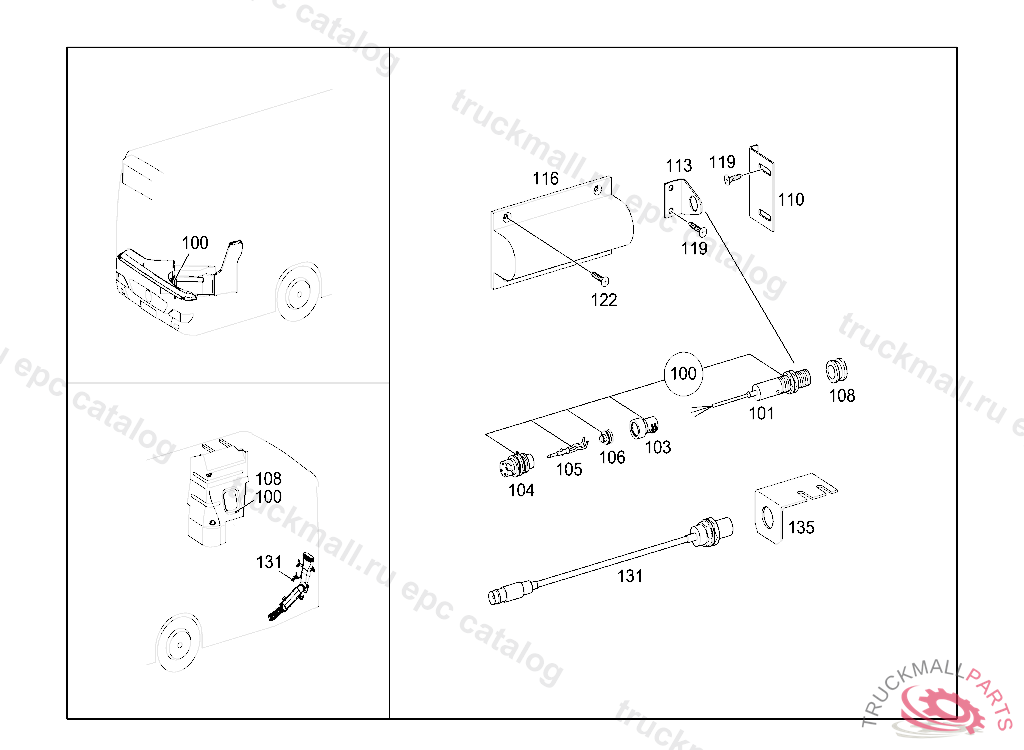

O530 - CITARO 12M, 3-TUERER - 628.085 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
100
SWITCH AT DRIVER'S DOOR
101
PROXIMITY SWITCH MAINTENANCE FLAP
103
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
104
PLUG HOUSING PRESSURE SENSOR
105
CONTACT PIN
106
WIRE SEAL GREY 0.5-1.0 MM2
108
GROMMET PLUG SOCKET
108
GROMMET FOR PASSAGE OF LINE
110
CONTACT PLATE
113
ATTACHMENT ANGLE BRACKET
116
COVER
119
TAPPING SCREW CONTROL UNIT TO FIRE WALL
122
TAPPING SCREW3,5 X 13
131
SWITCH FIRE-ALARM SYSTEM
135
BRACKET TEMPERATURE SWITCH
