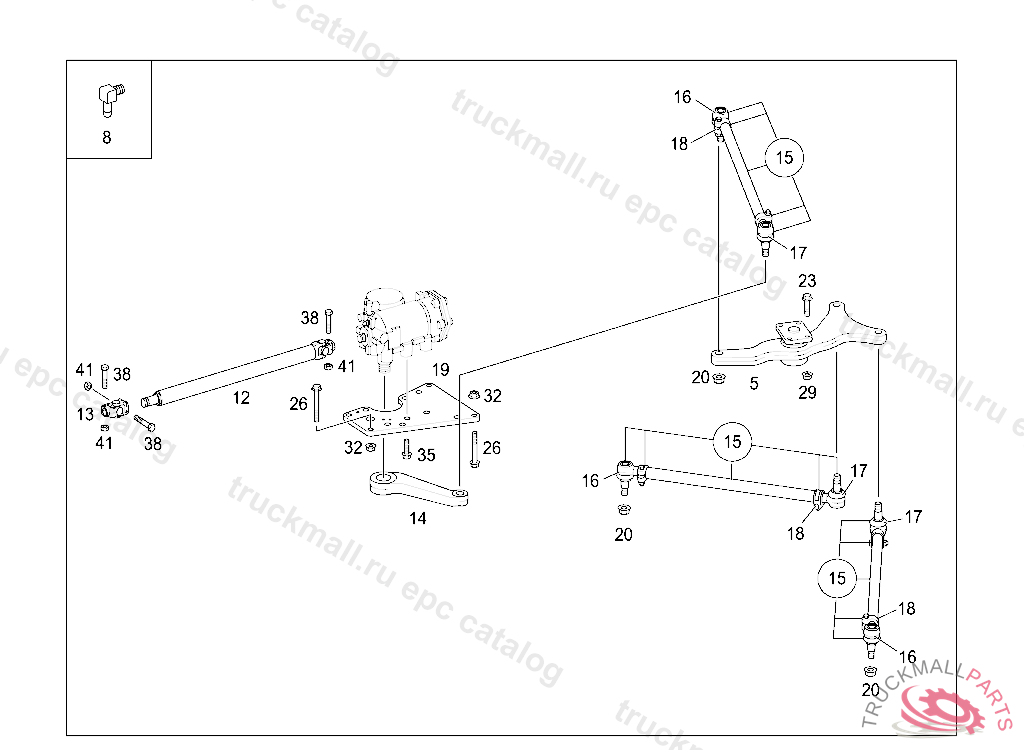

Поз.
Артикул
Описание
5
8
GREASE NIPPLE
12
13
UNIVERSAL JOINT ,5 463985
14
PITMAN ARM
15
TIE ROD
16
DRAG LINK END R.H. THREAD
17
18
CLAMP
19
PLATE
20
NUT DRAG LINK END M 24X1.5
23
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
26
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X120,V 207570
29
NUT STEERING SUPPORT TO FRAME,D 523394
29
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
29
NUT SUPPORT TO FRAME
32
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
35
SCREWM20X1.5X40
38
SCREW STEERING SHAFT TO STEERING M 8X42
41
NUT STRAP TO BRACKET
