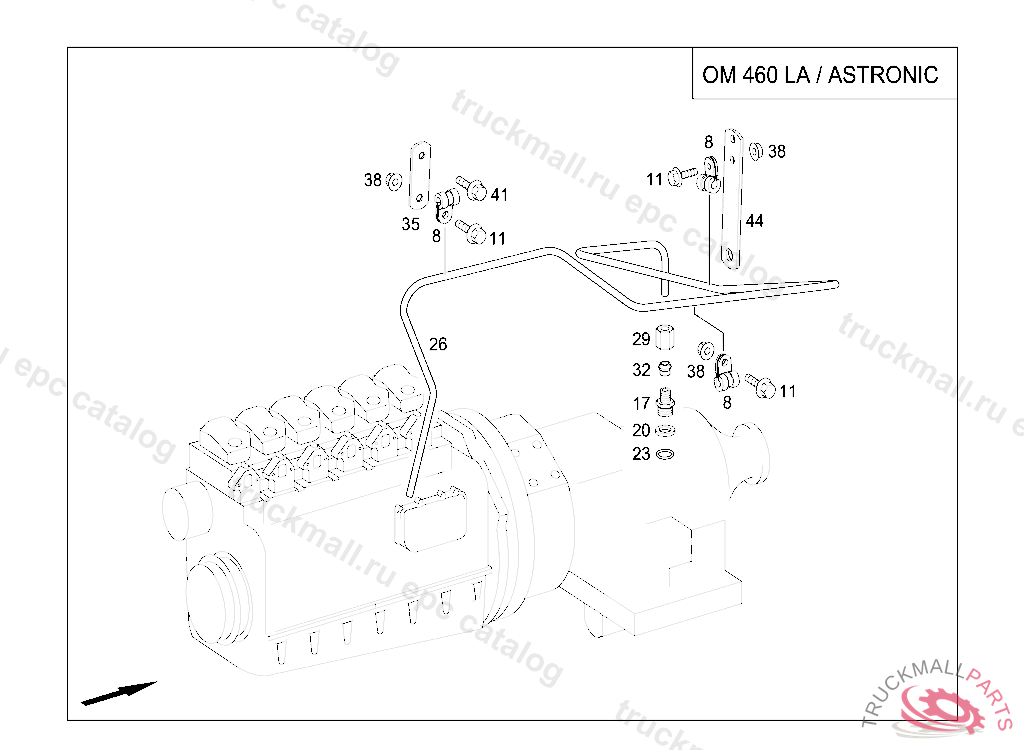

FAHRGESTELL - MULTEGO 3-ACHSER - 634.665 - 26 TRANSMISSION
Поз.
Артикул
Описание
8
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
8
CLAMP6/15, Replaced By: N000000007509
11
SCREW BRACKET AND CLAMP M6X20
17
SCREW-IN FITTING , Replaced By: A0029978472
17
FITTING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2010
20
THRUST RING14X10X2.6MM
23
O-RING
26
29
NUTAL6
29
UNION NUT
32
GLANDBS6
35
BRACKET
38
NUT BRACKET TO FIRE WALL
41
SCREW BRACKET TO CAB REAR PANEL M 8X20
44
BRACKET
