Поз.
Артикул
Описание

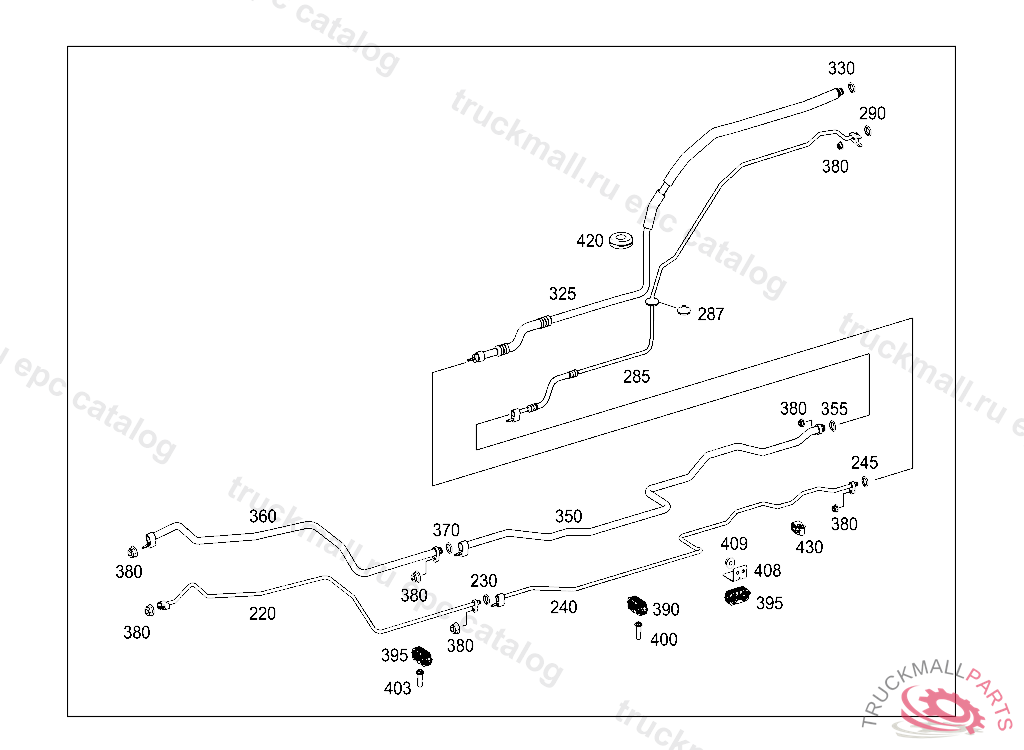

220
REFRIGERANT LINE FRONT INLET
220
REFRIGERANT LINE FRONT INLET, D803354820130719
230
O-RING PRESSURE LINE TO EXPANSION VALVE 7.5X2.1, J 48712220070601
240
REFRIGERANT LINE CENTER INLET
245
O-RING PRESSURE LINE TO EXPANSION VALVE 7.5X2.1, J 48712220070601
285
287
GROMMET FRONT BLINKER LAMP
290
O-RING PRESSURE LINE TO EXPANSION VALVE 7.5X2.1, J 48712220070601
325
330
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
350
REFRIGERANT LINE RETURN,FROM CENTRAL LEFT HEATER
355
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
360
REFRIGERANT LINE RETURN,FRONT
360
REFRIGERANT LINE RETURN,FRONT, D803354820130719
370
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
380
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
390
CLAMP REFRIGERANT LINE TO BODY 10 MM + 16-19 MM BLACK
390
CLAMP CLIMATE LINE ATTACHMENT 14-17 MM + 25-27 MM
395
LINE HOLDER ELECTRIC CABLES
400
THREADED BUSHING CABLE HOLDER
403
THREADED BUSHING CABLE HOLDER
408
BRACKET CLIMATE LINE ATTACHMENT
409
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
420
GROMMET
430
LINE HOLDER FUEL LINE MOUNTING
