Поз.
Артикул
Описание
10
10

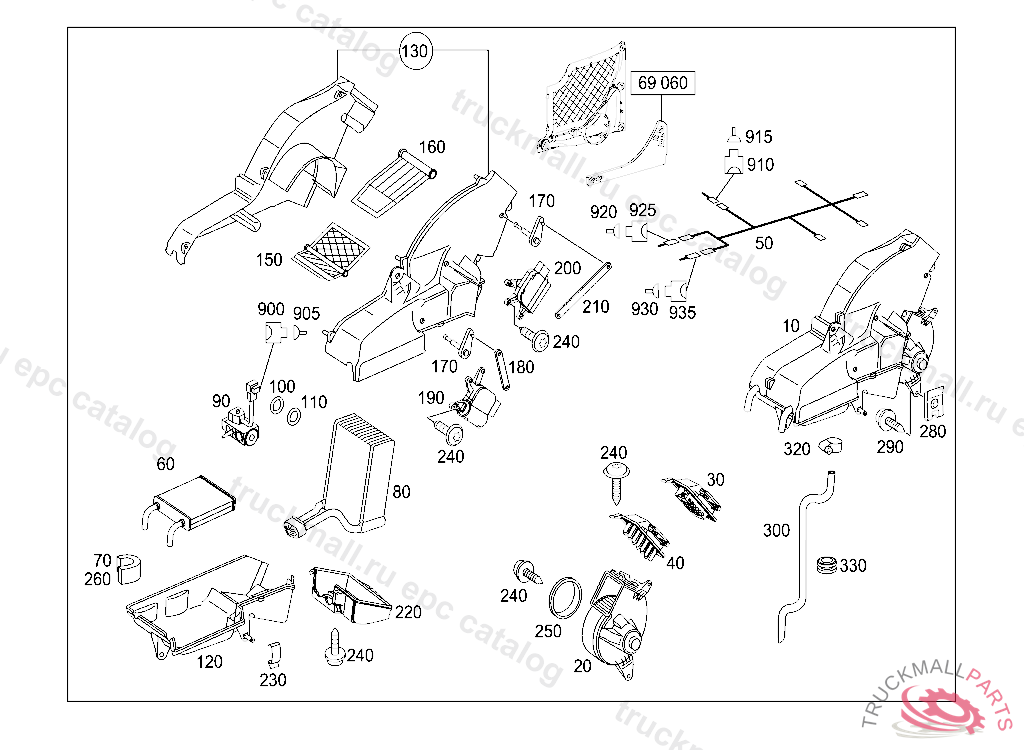

REFRIGERATION SYSTEM. REFRIGERATION SYSTEM IN THE REAR
10
10
HEATER IN THE REAR,357677620100831
20
BLOWER
30
30
BLOWER REGULATOR
40
BLOWER REGULATOR
50
EL. CABLE
50
EL. CABLE ,357677520100831
50
ELECTRICAL WIRING HARNESS ,357677620100831
60
HEAT EXCHANGER
70
INSULATION
80
EVAPORATOR
90
VALVE
90
VALVE PIPE LINE CONNECTION 14MM, E 01022520020418 A 33977020020418 F 28405020020424 R 07086820020708
90
VALVE (EXPANSION VALVE)
90
100
SEAL RING FROM LIQUID TANK TO T-FITTING
110
SEAL RING HOSE TO CONDENSER 14 MM
120
HOUSING LOWER PART
120
HOUSING LOWER PART
130
HOUSING LEFT AND RIGHT
130
HOUSING LEFT AND RIGHT
150
FLAP AIR MIXING FLAP
160
FLAP AIR FLAP
170
LEVER
180
LINK
190
STEPPER MOTOR ASSEMBLY
200
STEPPER MOTOR ASSEMBLY
210
LINK
220
COVER CASE COVER
230
SPRING
240
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
250
SEAL
260
INSULATION HEAT EXCHANGER
260
INSULATION
280
LOCK NUT. SPRING NUT HEADLINER TO BODY
290
TAPPING SCREWSCHRAUBPUNKT SRS PLAKETE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
300
320
LOOM TIE. CLAMP16 MM
330
GROMMET
900
PIN BUSHING HOUSING FROM BATTERY TO CONTACTOR
905
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
905
CONTACT SPRING0.22-0.5 MM2 SLK2.8
905
CONTACT SPRING4.0 MM2 SLK2.8
905
CONTACT SPRINGTO A 038 545 76 28
910
PIN BUSHING HOUSING SAM CONTROL UNIT 14-PIN SLK2.8,N10
915
CONTACT SPRINGTO A 038 545 76 28
915
CONTACT SPRING4.0 MM2 SLK2.8
915
CONTACT SPRING0.22-0.5 MM2 SLK2.8
915
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
920
CLUTCH. PIN BUSHING HOUSING FUSE AND RELAY BOX,DRIVER, F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 619720 WITH CODE 808
925
REP.SET CONTACT SAM CONTROL UNIT 4.0 MM2 LSK8,N10, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
930
PLUG COCKPIT CABLE HARNESS PLUG-CONNECTION 1-PIN LSK8,
935
REP.SET CONTACT. CABLE HARNESS4.0-6.0 MM2
