Поз.
Артикул
Описание
5

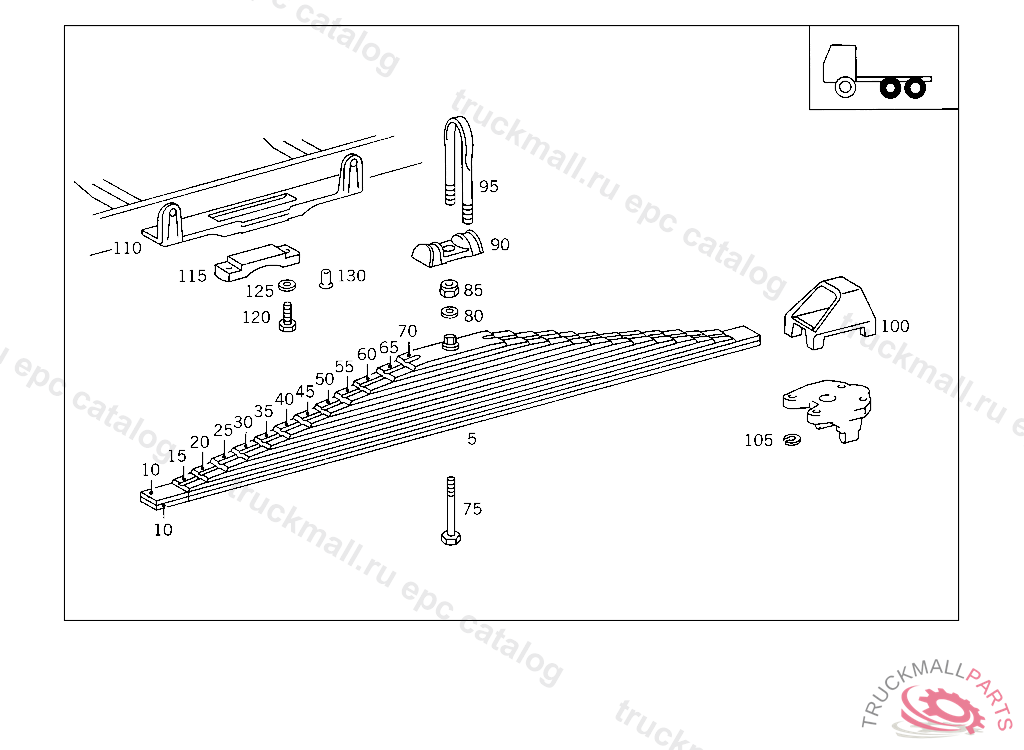

REAR SPRING 15-LEAF
5
REAR SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "13", ONLY FOR USE WITH 624 320 02 06 REAR SPRING
5
REAR SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "8"
5
REAR SPRING 14-LEAF
10
SPRING LEAFNO.1 + 2
10
SPRING LEAFNO.1,NO.2
10
SPRING LEAFNO.1,NO.2,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
10
SPRING LEAFNO.1,2
15
SPRING LEAFNO.3
15
SPRING LEAFNO.3,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
15
SPRING LEAFNO.3, TO BE ADAPTED DURING ASSEMBLY
15
SPRING LEAFNO.3
20
SPRING LEAFNO.4
20
SPRING LEAFNO.4,TO 62 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
20
SPRING LEAFNO.4
20
SPRING LEAFNO.4, TO BE ADAPTED DURING ASSEMBLY
25
SPRING LEAFNO.5
25
SPRING LEAFNO.5,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
25
SPRING LEAFNO.5
25
SPRING LEAFNO.5
30
SPRING LEAFNO.6
30
SPRING LEAFNO.6,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
30
SPRING LEAFNO.6
30
SPRING LEAFNO.6
35
SPRING LEAFNO.7
35
SPRING LEAFNO.7,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
35
SPRING LEAFNO.7
35
SPRING LEAFNO.7
40
SPRING LEAFNO.8
40
SPRING LEAFNO.8,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
40
SPRING LEAFNO.8
40
SPRING LEAFNO.8
45
SPRING LEAFNO.9
45
SPRING LEAFNO.9,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
45
SPRING LEAFNO.9
50
SPRING LEAFNO.10
50
SPRING LEAFNO.10,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
50
SPRING LEAFNO.10
55
SPRING LEAFNO.11
55
SPRING LEAFNO.11,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
55
SPRING LEAFNO.11
60
SPRING LEAFNO.12
60
SPRING LEAFNO.12,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
60
SPRING LEAFNO.12
65
SPRING LEAFNO.13
65
SPRING LEAFNO.13,TO 624 320 02 06, ONLY FOR USE WITH 624 320 02 06 REAR SPRING
65
SPRING LEAFNO.13
70
SPRING LEAFNO.14
70
SPRING LEAFNO.14
75
SPRING BOLT
75
SPRING BOLT (SPRING BOLT)
75
SPRING BOLTM 18X300, TO 624 320 02 06
75
SPRING BOLT ,4 338077
75
SPRING BOLT
80
WASHER SUPPORT TO SPARE WHEEL CARRIER
80
WASHER TORSION BAR TO BEARING BRACKET
80
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
85
NUT TORSION BAR TO BEARING BRACKET,5 904661
85
NUT CONTROL ARM TO REAR AXLE
85
NUT CONSOLE TO SUPPORT
85
NUT , Replaced By: N910113016001
90
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE TO 624 320 00 06
90
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
90
PLATE REAR SPRING TO SPRING SADDLE
95
U-BOLT REAR SPRING TO SPRING SADDLE 490 MM,TO 624 300 00 06
95
U-BOLT REAR SPRING TO SPRING SADDLE 440 MM
95
U-BOLT REAR SPRING TO SPRING SADDLE
95
U-BOLT REAR SPRING TO SPRING SADDLE 410 MM
100
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 919462, Replaced By: A6253250019
100
SPRING SEAT REAR AXLE I,RIGHT TO 395 320 06 06, ONLY FOR USE WITH 395 320 06 06 REAR SPRING
100
SPRING SEAT REAR AXLE I,RIGHT TO 395 320 06 06, ONLY FOR USE WITH 395 320 06 06 REAR SPRING
100
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 921596, Replaced By: A6593250019
100
SPRING SEAT REAR AXLE I,RIGHT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
100
SPRING SEAT REAR AXLE I,RIGHT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
100
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 919462, Replaced By: A6253250119
100
SPRING SEAT REAR AXLE I,LEFT TO 395 320 06 06, ONLY FOR USE WITH 395 320 06 06 REAR SPRING
100
SPRING SEAT REAR AXLE I,LEFT TO 395 320 06 06, ONLY FOR USE WITH 395 320 06 06 REAR SPRING
100
SPRING SEAT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 921596, Replaced By: A6593250119
100
SPRING SEAT REAR AXLE I,LEFT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
100
SPRING SEAT REAR AXLE I,LEFT, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 921596
100
SPRING SEAT
100
SPRING SEAT
100
SPRING SEAT
100
SPRING SEAT
105
LOCK WASHER DISC WHEELS TO FRONT AND REAR AXLES
110
PLATE REAR AXLE
115
RUBBER BUFFER REAR AXLE STOP
120
SCREW HAND PUMP TO BRACKET
125
WASHER , Replaced By: N007349010007
125
WASHER STRUT TO CROSS MEMBER
130
RIVET STOP TO SIDE MEMBER
999
SPRING LEAFNO.15
