Поз.
Артикул
Описание

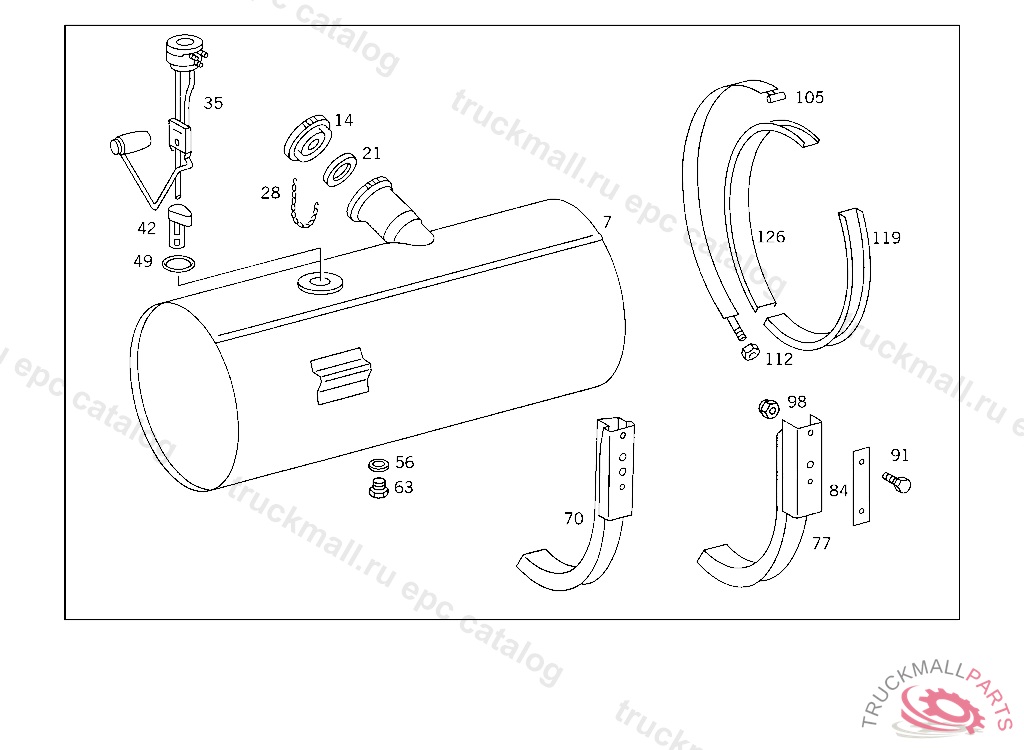

7
FUEL TANK200 L
7
FUEL TANK , Replaced By: A3554700101
14
FILLER CAP , Replaced By: A0004700305
14
FILLER CAP
21
SEAL RING
28
CHAIN FILLER CAP
35
SENDER UNIT FUEL GAUGE
42
FUEL STRAINER FUEL TANK,K 169122
49
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
56
SEAL RING FUEL LINE TO FEED PUMP
63
SCREW PLUG FUEL TANK
63
SCREW PLUG , Replaced By: N007604014110
70
SUPPORT FUEL TANK TO FRAME
77
SUPPORT REAR
84
SHIM SUPPORT TO SIDE MEMBER
91
SCREW SUPPORT TO SIDE MEMBER M 14X45
91
SCREW , Replaced By: N308676014012
98
NUT STEERING SUPPORT TO FRAME
98
NUT , Replaced By: N910113014000
105
STRAP FUEL TANK TO CONSOLE,5 149420
112
NUT STRAP TO SUPPORT
119
PAD FUEL TANK TO CONSOLE
126
PAD FUEL TANK TO CONSOLE
