Поз.
Артикул
Описание

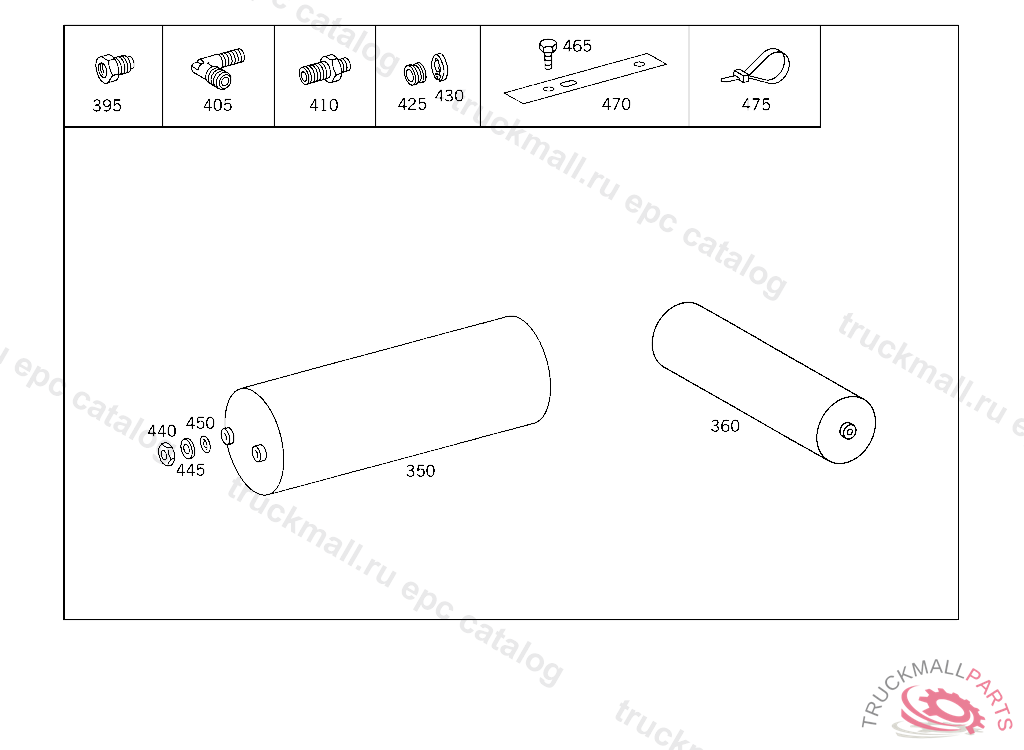

350
RESERVOIR5/25L
350
RESERVOIR , Replaced By: A0014328901
360
RESERVOIR ,5 934167, Replaced By: A0034320301
360
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
395
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
405
ELBOW FITTING CHECK VALVE TO RELAY VALVE
405
ELBOW FITTING , Replaced By: A0049906471
410
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
425
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
430
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
440
NUT CHECK VALVE TO AIR RESERVOIR
445
THRUST RING CHECK VALVE TO AIR RESERVOIR
445
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
450
O-RING CHECK VALVE TO AIR RESERVOIR
465
SCREW AT CROSS MEMBER
470
BASE SUPPORT TO SIDE MEMBER
475
LOOM TIE LINE MOUNTING
999
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
999
NUT BRACKET TO BRACKET
999
SCREW , Replaced By: N910142008001
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
999
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
SCREW BRACKET TO BRACKET
