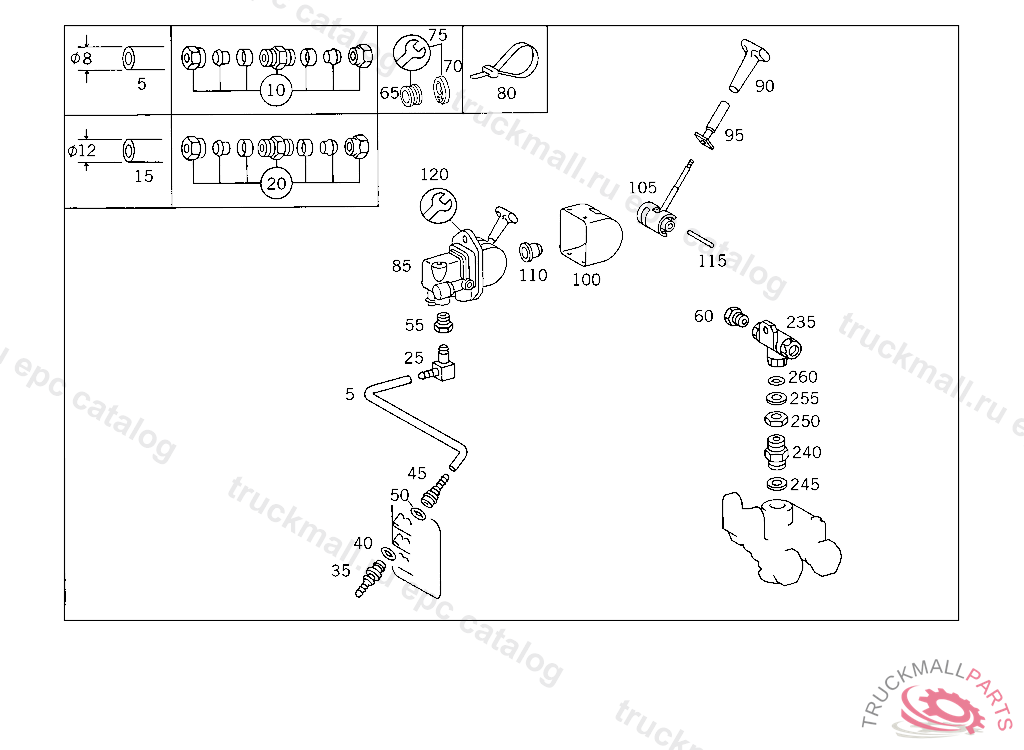

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE
15
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
15
HOSE , Replaced By: A0009872827
20
FITTING (PARTS KIT),LINE RUPTURE
25
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
25
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
25
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
25
ELBOW FITTING , Replaced By: A0049905371
35
CONNECTOR DISTRIBUTOR TO CAB
35
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
40
SEAL RING
45
CONNECTOR HOSE WIDTH, / I.D., 6 MM
50
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
55
SCREW. UNION SCREW LINE CONNECTION
55
SCREW. UNION SCREW , Replaced By: A0009973734
60
SCREW. UNION SCREW LINE CONNECTION
65
LOCK RING LINE CONNECTION
65
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
65
SEAL RING , Replaced By: A0009940747
70
LOCK , Replaced By: A0009945448
70
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
70
LOCK LINE CONNECTION
75
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
75
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
75
REPAIR KIT , Replaced By: A0309971748
80
LOOM TIE LINE MOUNTING 280 MM
85
VALVE PARKING BRAKE WITH TRAILER CONTROL "KNORR"
85
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
85
VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
90
HANDLETO 002 430 93 81
95
BUSHINGTO 002 430 93 81
100
PROTECTIVE CAPTO 002 430 93 81
105
LEVERTO 002 430 93 81
110
SPRING RETAINERTO 002 430 93 81
115
PINTO 002 430 93 81
120
REPAIR KIT HAND BRAKE VALVE "WABCO"
120
REPAIR KITBOSCH,TO 002 430 93 81
235
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
235
VALVE , Replaced By: A0044291544
240
FITTING SHUTTLE VALVE,CONNECTION: "20"
245
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
250
NUT CHECK VALVE TO AIR RESERVOIR
255
THRUST RING CHECK VALVE TO AIR RESERVOIR
255
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
260
O-RING CHECK VALVE TO AIR RESERVOIR
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
FITTING RETURN
999
BRACKET TRAILER CONTROL VALVE,K 213085
999
NUT FEED
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
