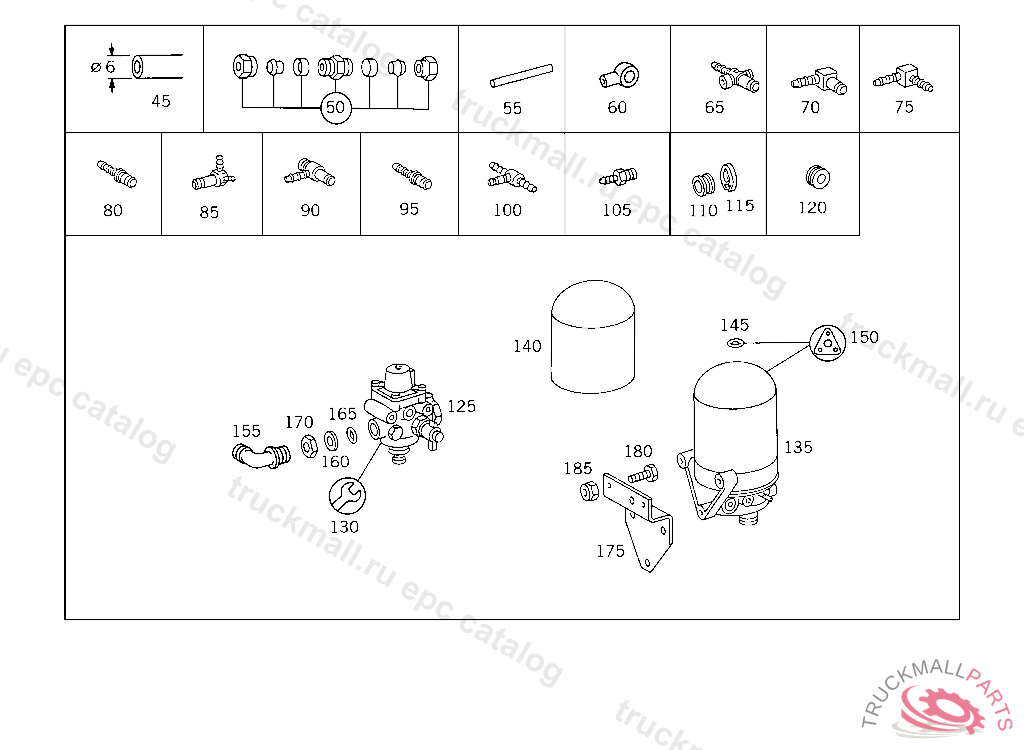

Поз.
Артикул
Описание
45
PLASTIC PIPE RISING PIPE 4X6 MM
45
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
50
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
55
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
60
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
65
DISTRIBUTOR LINE CONNECTION
70
ELBOW FITTING , Replaced By: A0049905371
70
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
70
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
75
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
80
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
85
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 4 MM/9 MM
90
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
95
CONNECTOR HOSE WIDTH, 6 MM,TO M16
95
CONNECTORTO M22 / 4MM / VOSS 230
95
CONNECTOR , Replaced By: A0029905478
100
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
100
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
105
FITTING LINE CONNECTION TO FIRE WALL,5 726664
110
LOCK RING LINE CONNECTION
110
SEAL RING , Replaced By: A0009940747
110
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
115
LOCK , Replaced By: A0009945448
115
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
115
LOCK LINE CONNECTION
120
GROMMET LINE THRU LEFT SIDE MEMBER
125
PRESSURE REGULATORKNORR
125
PRESSURE REGULATORWABCO
125
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
130
REPAIR KIT PRESSURE REGULATOR WABCO
130
REPAIR KIT PRESSURE REGULATOR KNORR
130
REPAIR KIT DIAPHRAGM PART BOSCH,209
130
REPAIR KIT SEAL RING BOSCH,209
135
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR
135
AIR DRIERKNORR,5 937586
135
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH
135
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
135
AIR DEHYDRATORKNORR,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014310415, +001A0004292139
135
AIR DEHYDRATORWABCO,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014312215, +001A0004292139
135
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
140
AIR CLEANER COMPLETE TO BOSCH,KNORR
140
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
145
SEAL RINGWABCO
150
GASKET KITKNORR
150
GASKET KITKNORR
150
GASKET KITWABCO
155
ELBOW FITTING ,5 433281
160
THRUST RING CHECK VALVE TO AIR RESERVOIR
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
165
O-RING CHECK VALVE TO AIR RESERVOIR
170
NUT CHECK VALVE TO AIR RESERVOIR
175
BRACKET AIR DEHYDRATOR,5 433281
180
SCREW PIPE CLAMP
180
SCREW BRACKET TO SIDE MEMBER
180
SCREW SUPPORT TO CROSS MEMBER M 10X28
180
SCREW , Replaced By: N304017008021
185
NUT , Replaced By: N913004008001
185
NUT , Replaced By: N910113010000
185
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
185
NUT STRAP TO BRACKET
999
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
999
NUT BRACKET TO BRACKET
999
SCREW , Replaced By: N910142008001
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
999
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
SCREW BRACKET TO BRACKET
