Поз.
Артикул
Описание

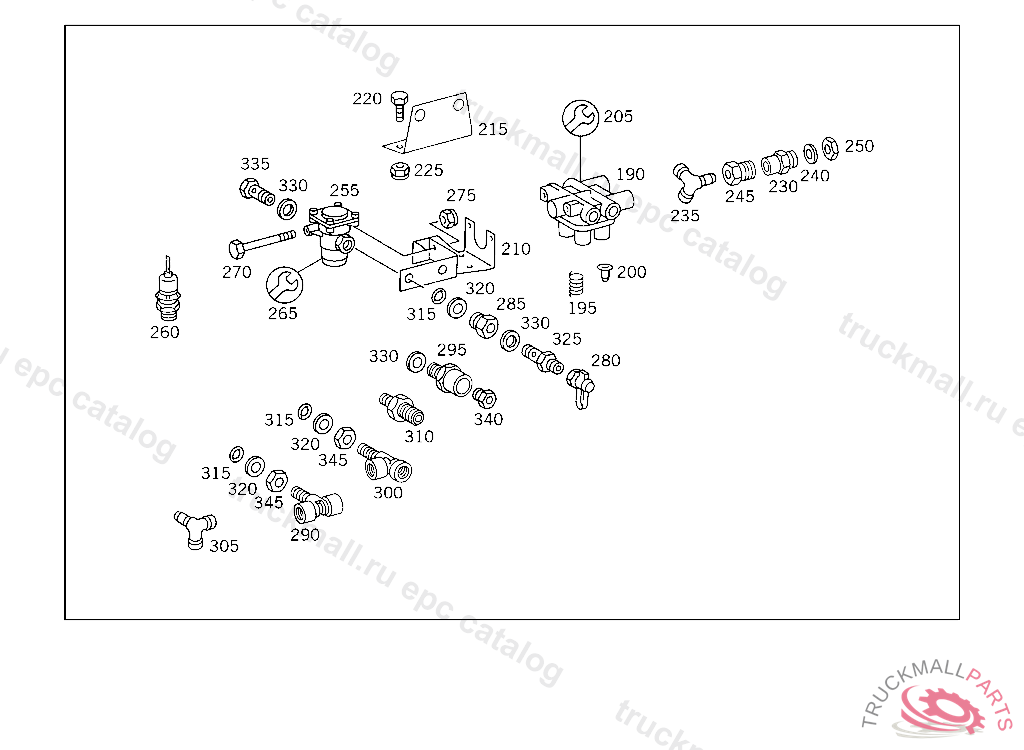

190
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
190
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
190
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
190
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) BOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
195
SPRINGBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
200
CUPBOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365
205
REPAIR KITTO 001 431 84 06,KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
205
REPAIR KITTO 001 431 47 06,WABCO 2210, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
205
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
205
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE BOSCH
205
REPAIR KIT ,5 7999995 800000 - 5 8127305 900000 - 5 936365, Replaced By: A0004302906
210
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE,5 525181
215
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE,5 525182
220
SCREW PIPE CLAMP
220
SCREW , Replaced By: N304017008021
225
NUT , Replaced By: N913004008001
225
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
FITTING LINE CONNECTION
235
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
240
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
245
SCREW. UNION SCREW LINE CONNECTION
250
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
255
VALVE (PRESSURE LIMIT VALVE)
260
VALVE PRESSURE LIMIT,K 025180
265
REPAIR KIT PRESSURE LIMIT VALVE
270
SCREW BRACKET TO 3/2-WAY VALVE
275
NUT , Replaced By: N913004008001
275
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
280
TEST CONNECTION
285
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
285
ADAPTER FITTING , Replaced By: A0069970072
290
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
295
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
300
FITTING RIGHT TRISTOP CYLINDER, REAR AXLE I, CONNECTION: "11"
305
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
310
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
315
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
320
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
325
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
330
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
335
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
340
SCREW. UNION SCREW LINE CONNECTION
345
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
999
NUT BRACKET TO BRACKET
999
SCREW , Replaced By: N910142008001
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
999
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW BRACKET TO BRACKET
