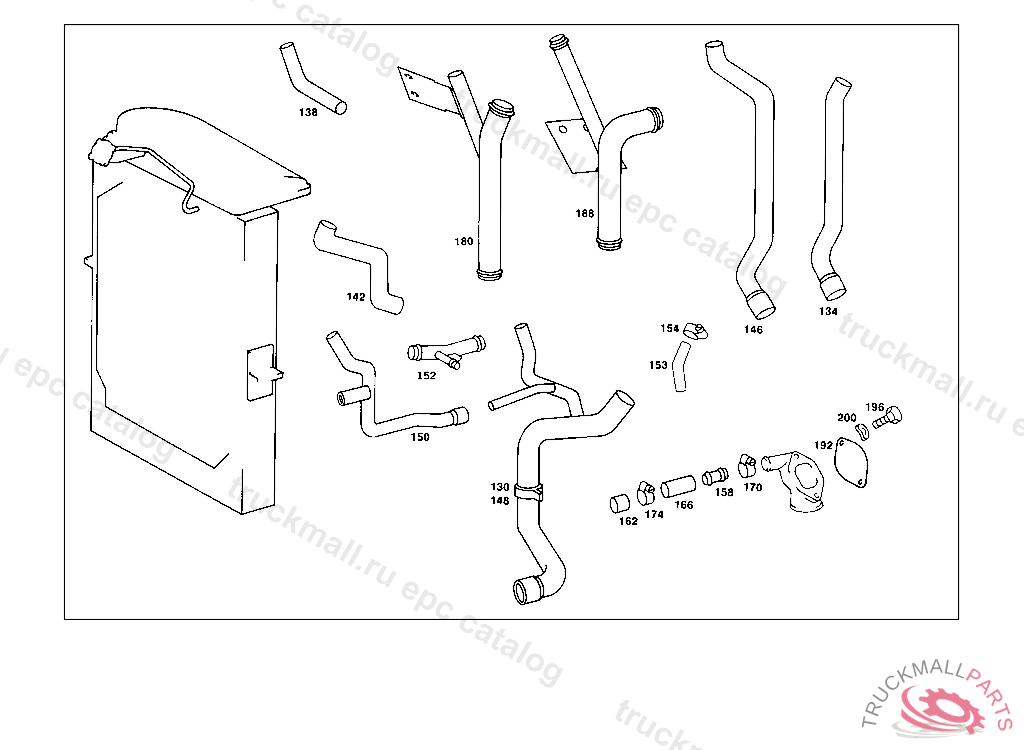

Поз.
Артикул
Описание
130
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
134
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
138
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
142
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
146
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
148
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,5 422023
148
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
148
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6175015582
150
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
150
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,5 519721
150
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
150
HOSE FROM EXPANSION TANK TO WATER PUMP
150
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,5 519722
152
INTERMEDIATE PIECE
153
HOSE FROM COOLING WATER OUTLET TO WATER PUMP
154
CLAMP25-40X13 MM
154
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
158
COVER HEATING WATER CONNECTION
158
COVER FROM COOLING WATER OUTLET TO WATER PUMP
162
LOCKING CAP HEATING PIPE,5 102265
166
HOSE HEATING WATER CONNECTION 24 X 33 MM
170
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
170
CLAMP25-40X13 MM
170
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
170
CLAMP , Replaced By: N000000000667
174
SCREW BRACKET TO SIDE MEMBER
174
SCREW REAR EXHAUST PIPE TO MUFFLER
174
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
180
LINE COOLING WATER
180
LINE , Replaced By: A3815002672
188
LINE COOLING WATER
192
FLANGE HEATING CONNECTION LOCK,5 301949
192
FLANGE HEATING CONNECTION LOCK
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
200
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
200
SPRING WASHER , Replaced By: N000137008212
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
HOSE HEATING PIPE TO RADIATOR
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
HOSE FROM COOLING WATER OUTLET TO WATER PUMP,K 157608
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 157608
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM COOLING WATER OUTLET TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 157608
999
LINE HEATING AND BREATHING,K 096750
999
LINE HEATING AND BREATHING,K 096750
999
LINE
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
LINE
999
BRACKET
999
BRACKET SEALING LIP TO RADIATOR
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 157607
999
LINE HEATING LINES,K 003669
999
LINE HEATING AND BREATHING
999
LINE ,5 464667 - 5 528983, Replaced By: A6555001572, +001A6555013082
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 157607
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 157607
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING AND BREATHING
999
LINE HEATING PIPES
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE HEATING PIPE TO RADIATOR
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM VALVE TO FEED LINE,K 004003
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
HOSE FROM CHECK VALVE TO PIPE LINE
999
HOSE HEATING FEED, FROM RADIATOR TO CAB HEATING PIPE
999
HOSE HEATER RETURN, FROM RADIATOR TO CAB HEATING PIPE
999
FLANGE , Replaced By: A6205060261
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 301948
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING PIPE
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE OIL COOLER
999
LINE , NOT USED
999
LINE (HEATING LINE),FROM ENGINE TO HEATER
999
LINE HEATING PIPE
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
LINE HEATING PIPE
999
LINE (HEATING PIPE)
999
LINE HEATING AND BREATHING
999
LINE HEATING AND BREATHING
999
HOSE
999
BRACKET HEATING PIPE,5 301949
999
HOSE HEATING PIPE TO RADIATOR
999
HOSE FROM FLANGE TO HEATING PIPE
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 301949
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING AND BREATHING
999
HOSE , Replaced By: A3635060235
999
HOSE FROM FLANGE TO HEATING PIPE
999
HOSE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR, 415 5 014668 416 5 000515 417 4 972023
999
HOSE
999
FLANGE AT ENGINE, WITH 387.134 ON VEHICLES HAVING NO MERCEDES BENZ CAB UP TO CHASSIS 4 367398
999
FLANGE HEATING AND BREATHING, 415 5 014668 416 5 000515 417 4 972023
999
LINE HEATING,MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER, 415 5 014668 416 5 000515 417 4 972023
999
HOSE , Replaced By: A3875060235
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
HOSE HEATING FEED,4 829878
999
LINE HEATING, TO CAB,4 829879
999
LINE HEATING, TO CAB,4 829878
999
CLAMP FEED LINE TO THERMOSTAT
999
ANGLE LINE MOUNTING
