Поз.
Артикул
Описание

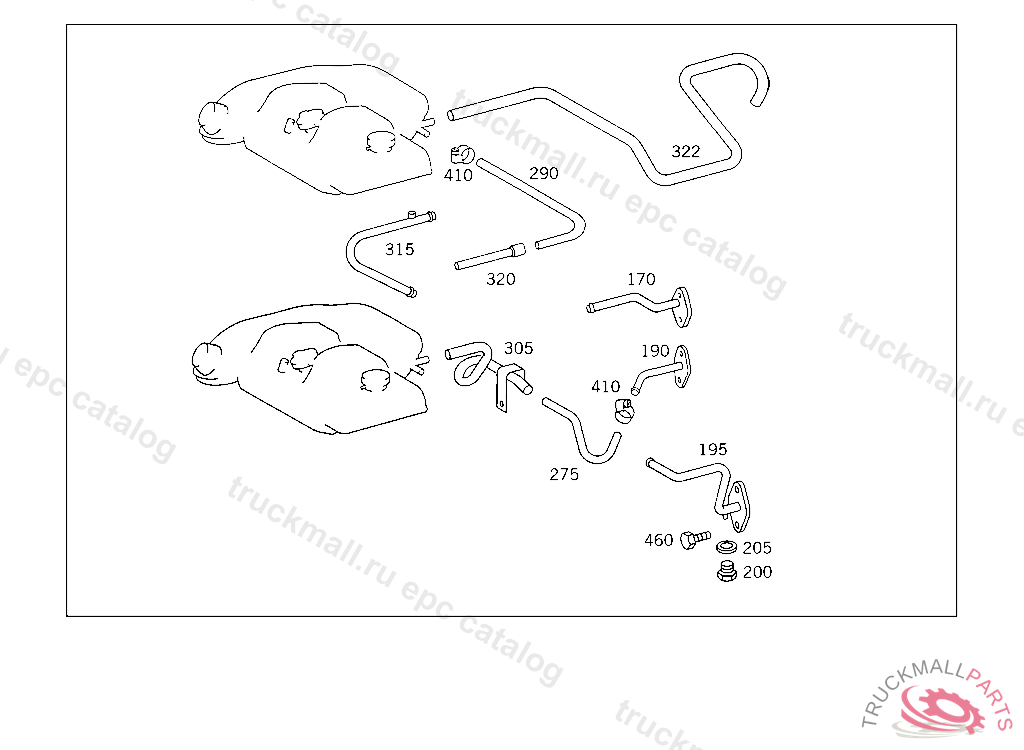

170
FLANGE FROM ENGINE TO EXPANSION TANK
190
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
190
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
190
BREATHER PIPE ENGINE BREATHING
190
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
190
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
195
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
195
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
200
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
200
SCREW PLUG , Replaced By: N000908012009
205
SEAL RING LINE CONNECTION
275
HOSE DE-AERATION PIPE TO EXPANSION TANK
275
HOSE DE-AERATION PIPE TO EXPANSION TANK
275
HOSE DE-AERATION PIPE TO EXPANSION TANK
290
HOSE DE-AERATION PIPE TO EXPANSION TANK
290
HOSE BRAKE VALVE,CONNECTION: "30"
290
HOSE DE-AERATION PIPE TO EXPANSION TANK
305
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
315
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
320
HOSE FROM EXPANSION TANK TO ENGINE
322
HOSE RETURN LINE AUXILIARY RADIATOR ON ENGINE, TO BE ADAPTED DURING ASSEMBLY
410
CLAMP HOSE 70-90X13 MM
410
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
410
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
410
CLAMP , Replaced By: N000000000670
410
CLAMP HOSE TO FITTING AND TO OIL TANK
410
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
410
CLAMP , Replaced By: N000000000667
410
CLAMP , Replaced By: N000000000671
410
CLAMP , Replaced By: N000000000674
460
SCREW , Replaced By: N000933008337
460
SCREW , Replaced By: N304017008021
460
SCREW , Replaced By: A0099900101
460
SCREW , Replaced By: N304017010051
460
SCREW BRACKET ON LOAD SENSOR
460
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
460
SCREW PUMP TO BRACKET
460
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
460
SCREW STRAP TO BRACKET
460
SCREW SUPPORT TO FENDER
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW BRACKET TO FRAME SIDE MEMBER
460
SCREW
460
SCREW COVER PLATE TO BRACKET
460
SCREW PIPE CLAMP
999
LINE FEED AND RETURN LINES TO HEATING
999
OUTLET AT WATER PUMP
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
