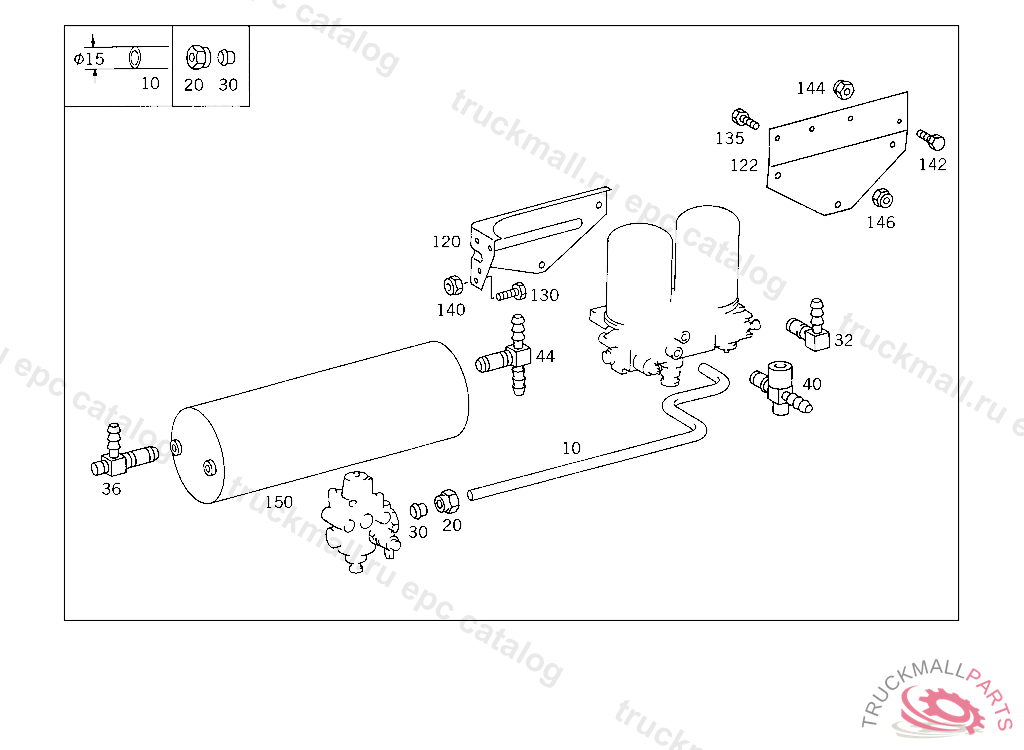

Поз.
Артикул
Описание
10
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
20
UNION NUT LINE CONNECTION
30
GLAND LINE CONNECTION
32
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
32
ELBOW FITTING , Replaced By: A0049905371
36
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
40
DISTRIBUTOR LINE CONNECTION
44
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
120
BRACKET AIR DEHYDRATOR
122
BRACKET AIR DEHYDRATOR
122
BRACKET AIR DEHYDRATOR
130
SCREW SUPPORT TO CROSS MEMBER M 10X28
135
SCREW BRACKET TO LEFT SIDE MEMBER
140
NUT , Replaced By: N910113010000
140
NUT STRAP TO BRACKET
142
SCREW PIPE CLAMP
142
SCREW , Replaced By: N304017008021
144
NUT , Replaced By: N913004008001
144
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT SUPPORT TO SIDE MEMBER
150
RESERVOIR , Replaced By: A0034323001
150
RESERVOIR
999
RESERVOIR6/20 L,276 MM,10 BAR
999
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
999
BRACKET AIR DEHYDRATOR,5 433280
999
BRACKET ANTI-FREEZE DEVICE,6 900024
999
BRACKET AIR DEHYDRATOR,5 433281
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
