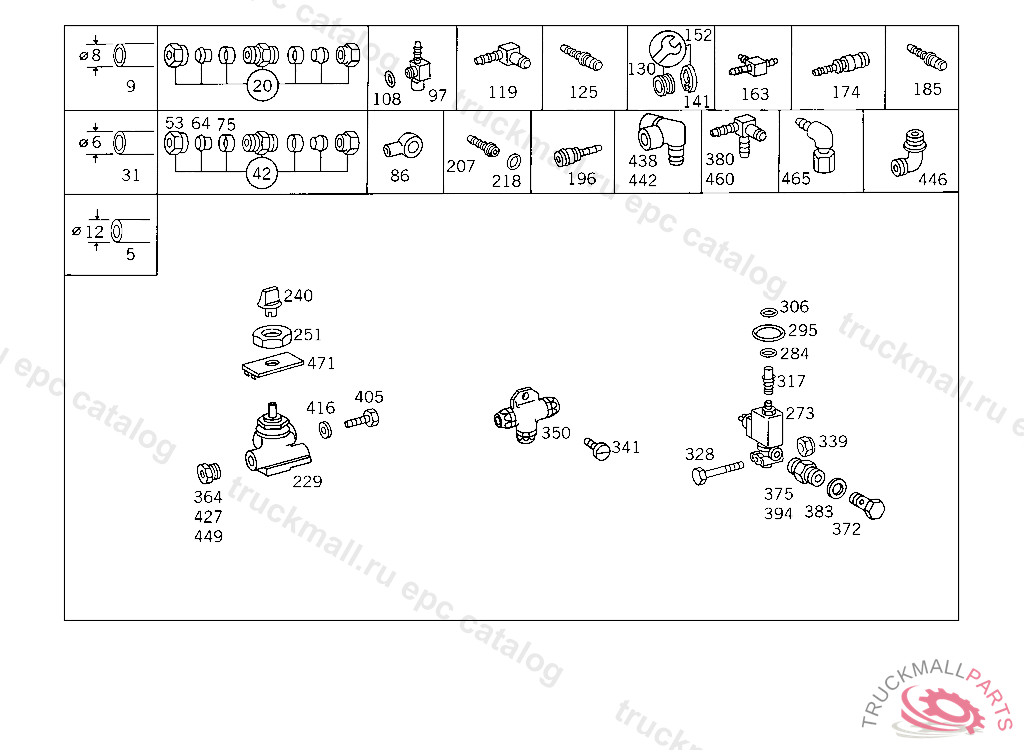

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE
20
FITTING (PARTS KIT),LINE RUPTURE
31
PLASTIC PIPE RISING PIPE 4X6 MM
31
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
42
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
53
UNION NUT
64
GLAND , Replaced By: A0019901667
64
SEAL CONE
75
SLEEVE LEAK LINE
86
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
86
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
97
CONNECTOR DISTRIBUTOR TO CAB
97
CONNECTOR DISTRIBUTOR TO CAB
108
SEAL RING
119
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 16
119
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
119
ELBOW FITTING , Replaced By: A0049905371
119
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
119
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
119
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
125
CONNECTOR HOSE WIDTH, 6 MM, TO M22
130
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
130
SEAL RING , Replaced By: A0009940747
130
LOCK RING LINE CONNECTION
141
LOCK , Replaced By: A0009945448
141
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
141
LOCK LINE CONNECTION
152
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
152
REPAIR KIT , Replaced By: A0309971748
152
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
163
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
174
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
185
CONNECTOR DISTRIBUTOR TO CAB
196
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
207
CONNECTOR HOSE WIDTH, / I.D., 6 MM
218
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
218
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019875046
218
SEAL RING
229
VALVE 3/2-WAY,EMERGENCY RELEASE, ON ENGINE SUPPORT
240
HANDLE 3/2-WAY VALVE TO BRACKET
251
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
273
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
284
SEAL RINGWABCO
295
SEAL RINGWABCO
306
SEAL RINGWABCO
317
VALVE PART
328
SCREW 3/2-WAY VALVE TO BRACKET
328
SCREW , Replaced By: N304014008009
339
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
339
NUT , Replaced By: N913004008001
341
SCREW TO PLUG THE FREE CONNECTIONS
350
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
350
VALVE , Replaced By: A0044291544
364
SCREW. UNION SCREW , Replaced By: A0009973734
364
SCREW. UNION SCREW LINE CONNECTION
372
HOLLOW SCREW HEATING CONNECTION
372
HOLLOW SCREW LINE CONNECTION
375
FITTING 3/2-WAY VALVE,CONNECTION: "30"
380
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
383
SEAL RING LINE CONNECTION
383
SEAL RING LINE CONNECTION
394
BREATHER , Replaced By: A3933280065
394
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
405
SCREW TO PLUG THE FREE CONNECTIONS
416
SEAL RINGBOSCH
427
SCREW. UNION SCREW LINE CONNECTION
438
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
442
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
442
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
442
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
446
ELBOW FITTING SHUTTLE VALVE TO BRAKE CYLINDER
449
SCREW. UNION SCREW LINE CONNECTION
460
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
460
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
460
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
465
ELBOW FITTING
471
GUIDE SIGN
999
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW-IN FITTING , Replaced By: A0029978472
999
SCREW EXHAUST BRAKE SEPARATION POINT
999
TANK RECESS. T-FITTING LINE CONNECTION
999
BRAKE HOSE REAR AXLE
999
FITTING , Replaced By: A0029905971
999
T-FITTING LINE CONNECTION
999
T-FITTING HOSE WIDTH, 6 MM
999
T-FITTING
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
CONNECTOR SHUTTLE VALVE TO BRAKE CYLINDER
