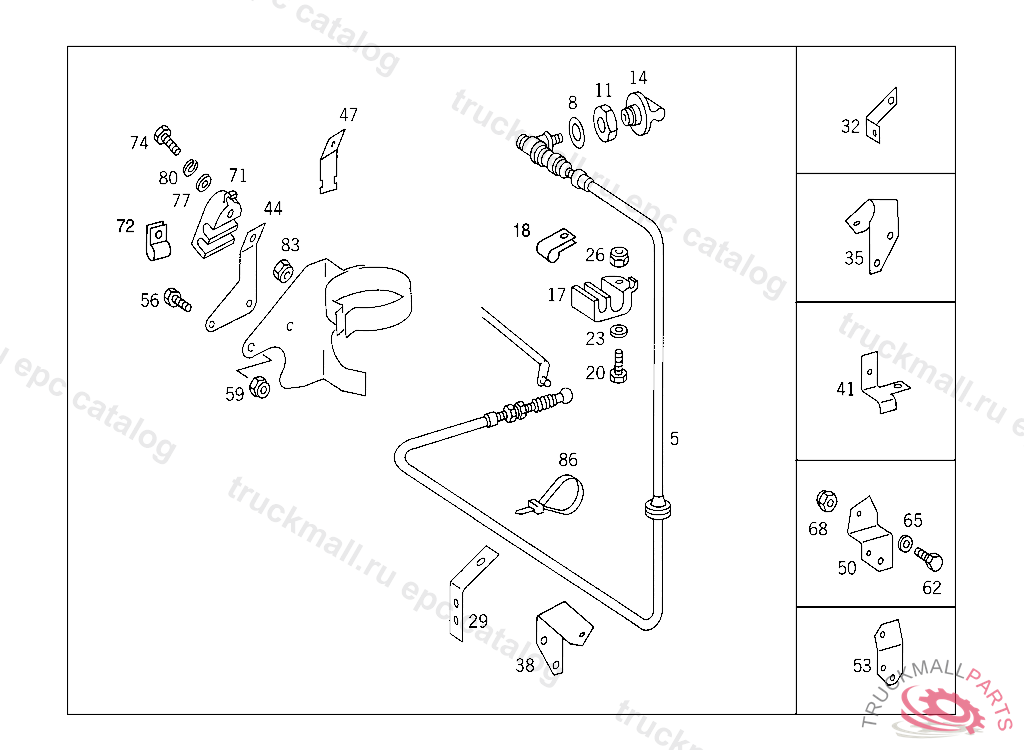

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
5
WIRE CABLE MANUAL CONTROL
8
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
11
NUT WIRE CABLE TO INSTRUMENT PANEL
14
KNOB IDLING ADJUSTMENT
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
18
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
18
CLAMP ,K 147121, Replaced By: N000000000319
20
SCREW , Replaced By: N000000001149
20
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
20
SCREW , Replaced By: A0029903712
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
23
WASHER COMPRESSED AIR LINE TO BRACKET
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
29
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET, TO BE ADAPTED DURING ASSEMBLY
41
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
53
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
62
SCREW LICENSE PLATE TO BRACKET
62
SCREW , Replaced By: N304017006020
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
WASHER COMPRESSED AIR LINE TO BRACKET
68
NUT PUMP TO BRACKET
68
NUT , Replaced By: N913004006001
71
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
72
CLAMP ,K 147121, Replaced By: N000000000319
72
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
74
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
74
SCREW , Replaced By: A0029903712
74
SCREW , Replaced By: N000000001149
77
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
77
WASHER COMPRESSED AIR LINE TO BRACKET
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
NUT PUMP TO BRACKET
83
NUT , Replaced By: N913004006001
86
LOOM TIE LINE MOUNTING
86
LOOM TIE LINE MOUNTING 280 MM
