Поз.
Артикул
Описание

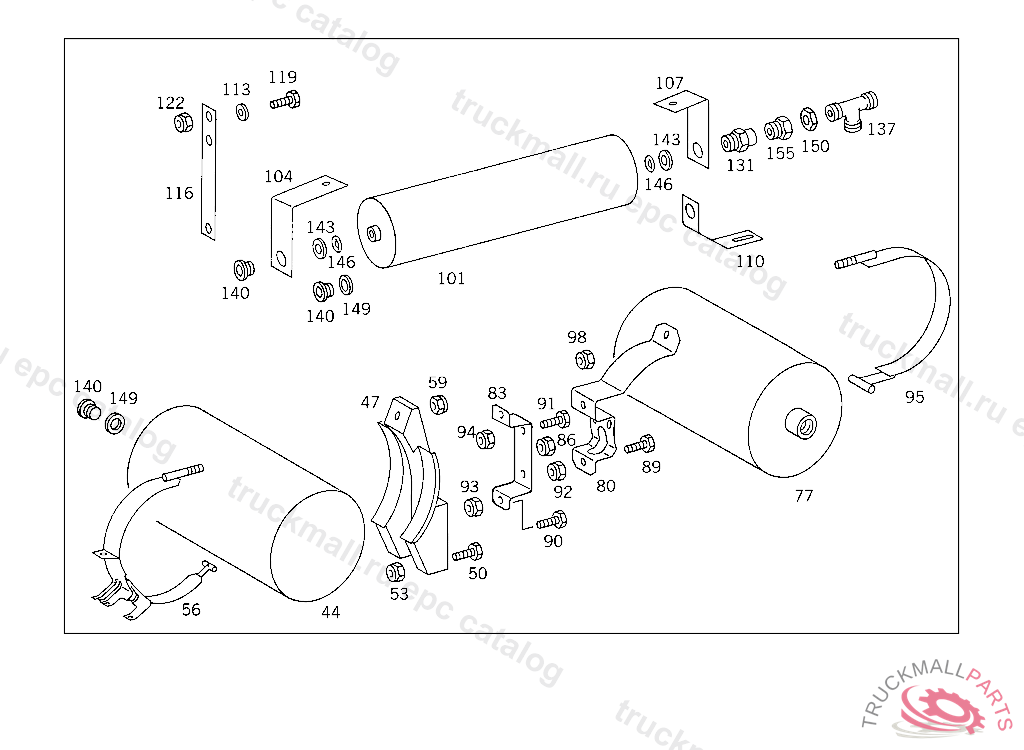

44
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
44
RESERVOIR20L,276 MM,8.5 BAR
47
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
50
SCREW , Replaced By: A0089907401
50
SCREW BRACKET TO SIDE MEMBER,K 168169
53
NUT , Replaced By: N913004008001
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
59
NUT , Replaced By: N910113010000
59
NUT STRAP TO BRACKET
77
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
77
RESERVOIR10L,206 MM,8.5 BAR
80
BRACKET AIR RESERVOIR TO CROSS MEMBER
89
SCREW PIPE CLAMP
89
SCREW , Replaced By: N304017008021
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
92
NUT , Replaced By: N913004008001
92
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
95
STRAP AIR RESERVOIR TO BRACKET
98
NUT , Replaced By: N910113010000
98
NUT STRAP TO BRACKET
101
RESERVOIR5.6L,114,3 MM,10 BAR
101
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
101
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
104
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
107
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
107
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
110
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
113
WASHER , Replaced By: N000125010532
113
WASHER RADIATOR TO RUBBER MOUNTING
131
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
140
SCREW PLUG , Replaced By: N000908022011
140
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
143
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
143
THRUST RING CHECK VALVE TO AIR RESERVOIR
146
O-RING CHECK VALVE TO AIR RESERVOIR
149
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
155
SCREW. UNION SCREW , Replaced By: A0009973734
155
SCREW. UNION SCREW LINE CONNECTION
