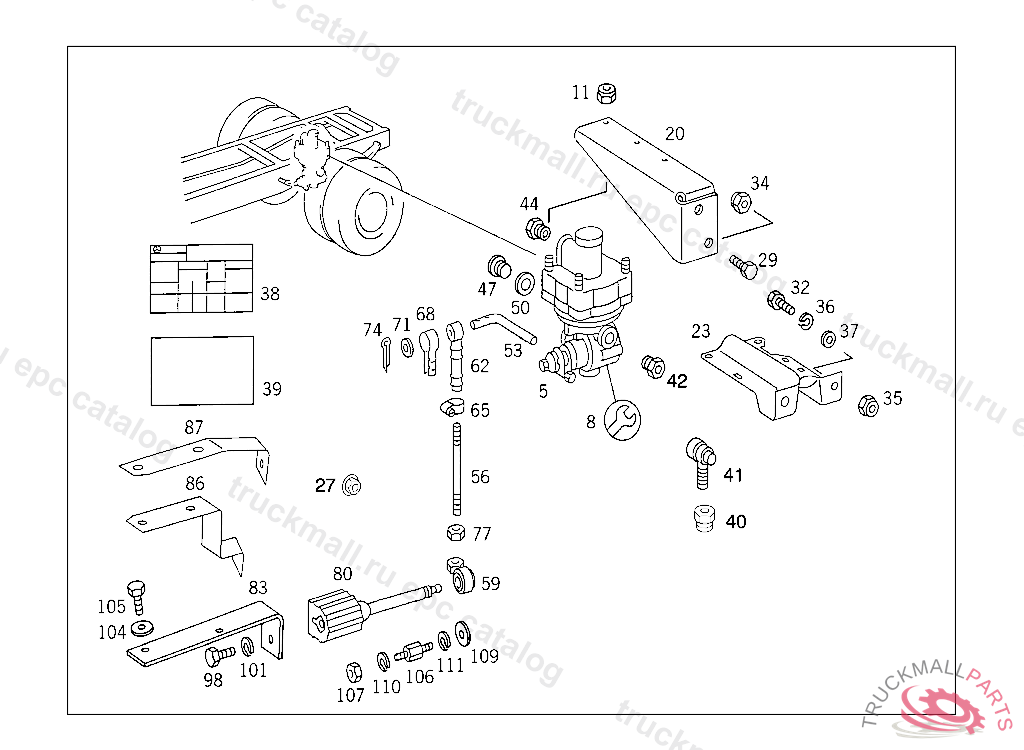

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
8
REPAIR KIT BRAKE POWER REGULATOR BOSCH
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
NUT , Replaced By: N913004008001
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
BRACKET BRAKE POWER REGULATOR
29
SCREW BRACKET TO SIDE MEMBER
34
NUT BRACKET TO SIDE MEMBER
38
GUIDE SIGN LOAD-DEPENDING BRAKE
38
GUIDE SIGN LOAD-DEPENDING BRAKE,5 592211
39
ADHESIVE FOIL GUIDE SIGN
42
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
53
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
56
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
59
BALL SOCKET PULL ROD
62
CONNECTOR PULL ROD TO LEVER
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP , Replaced By: N000000000665
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
71
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER , Replaced By: N000125008443
74
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
77
NUT
80
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
83
BRACKET METAL SPRING BELLOWS
98
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
101
LOCK WASHER FITTING TO BRACKET
104
WASHER LEFT AND RIGHT CONSOLES TO CAB
105
SCREW , Replaced By: N308676012012
105
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
