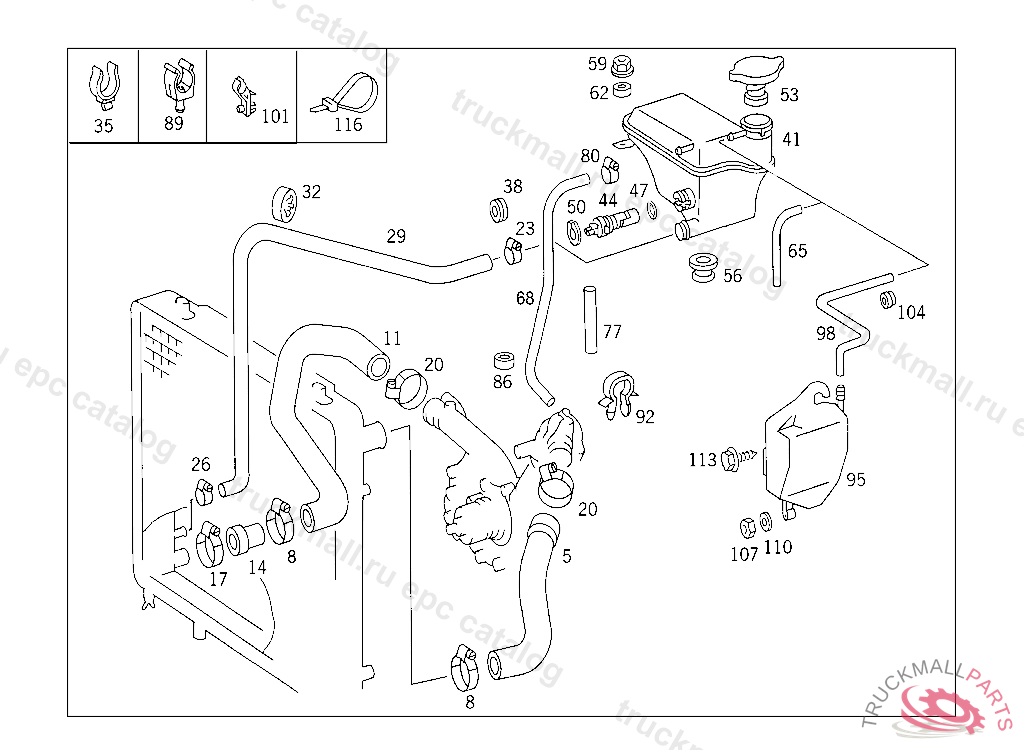

Поз.
Артикул
Описание
5
HOSE AT THERMOSTAT,TOP
8
CLAMP , Replaced By: A0069970590
8
LOOM TIE
11
HOSE BOTTOM
17
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
23
CLAMP25-40X13 MM
23
CLAMP , Replaced By: A0069970490
23
LOOM TIE , Replaced By: N000000000668
41
TANK EXPANSION TANK
41
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 225458, Replaced By: A1245001749
44
SWITCH COOLING WATER LEVEL INDICATOR
47
SEAL RING
50
LOCK RING MAIN SHAFT,FRONT
53
CLOSING COVER RADIATOR
53
FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 205503, Replaced By: A1245000406
56
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
59
NUT MOUNTING FRAME TO SUPPORT M6
65
HOSE
65
HOSE , Replaced By: A0219977682
68
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
77
INSULATING HOSE16X1 MM, ORDER BY THE METER
80
HOSE CLAMP LINE MOUNTING
86
RUBBER RING
89
BRACKET DE-AERATION LINE TO 124 505 03 55 / 04 55
95
TANK OVERFLOW
101
BRACKET AT HEADLAMP RIM
