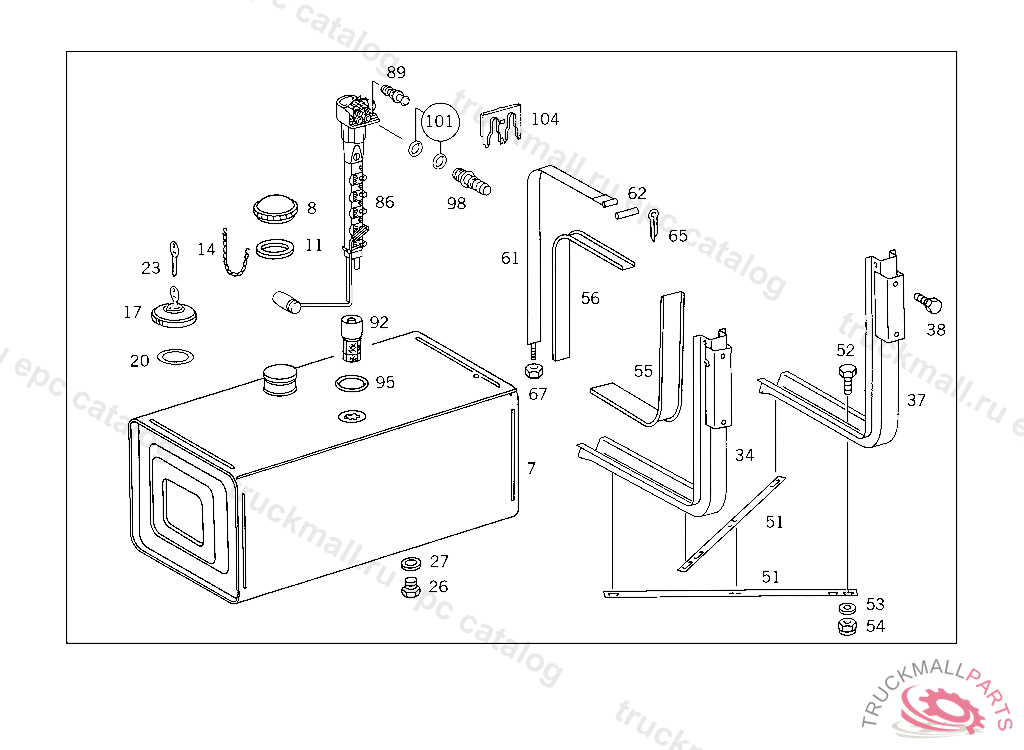

Поз.
Артикул
Описание
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
FILLER CAP LESS BREATHING
17
FILLER CAP LESS BREATHING
17
FILLER CAP LESS BREATHING
17
FILLER CAP , Replaced By: A0004718430
20
SEAL RING
20
SEAL RING
20
SEAL RING , Replaced By: A3049970340
23
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
23
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
26
SCREW PLUG FUEL TANK
26
SCREW PLUG , Replaced By: N007604014110
27
SEAL RING FUEL LINE TO FEED PUMP
34
SUPPORT REAR FUEL TANK,NO.1 CONSOLE,5 944348
38
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
38
SCREW , Replaced By: N308676014020
56
PAD FUEL TANK SUPPORT 72 / 80, ORDER BY THE METER
56
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
67
NUT STRAP TO SUPPORT
92
FUEL STRAINER FUEL TANK,K 169123
92
FUEL STRAINER FUEL TANK,K 169122
95
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
98
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
98
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
98
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
101
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
104
LOCK FUEL GAUGE SENDER UNIT CONNECTION
