Поз.
Артикул
Описание
10

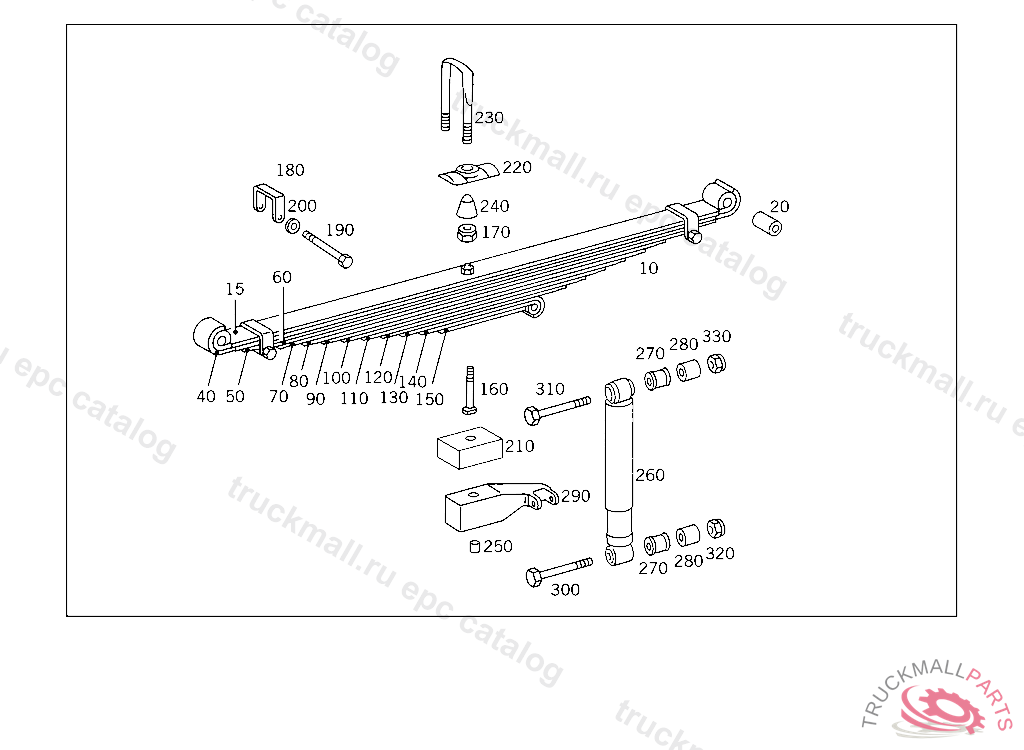

FRONT SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "13",K 063501
15
SPRING LEAFNO.1,K 063501
20
RUBBER MOUNTING , Replaced By: A0003223285
20
RUBBER MOUNTING
20
RUBBER MOUNTING , Replaced By: A0003223285
40
SPRING LEAFNO.2,K 063501
50
SPRING LEAFNO.3,K 063501
60
SPRING LEAFNO.4
70
SPRING LEAFNO.5
80
SPRING LEAFNO.6
90
SPRING LEAFNO.7
100
SPRING LEAFNO.8
110
SPRING LEAFNO.9
120
SPRING LEAFNO.10
130
SPRING LEAFNO.11
140
SPRING LEAFNO.12
150
SPRING LEAFNO.13
160
SCREW (SPRING BOLT)
170
NUT , Replaced By: N910113014000
170
NUT STEERING SUPPORT TO FRAME
180
SPRING CLAMP SPRING EYE,FRONT AND REAR
190
SCREW FOR SPRING CLAMPS
200
WASHER FOR SPRING CLAMPS
210
SHIM FRONT SPRINGS TO FRONT AXLE II
210
SHIM FRONT SPRINGS TO FRONT AXLE,5 507220
210
SHIM FRONT SPRINGS TO FRONT AXLE
220
PLATE , Replaced By: A6483310026
220
PLATE FRONT SPRINGS TO FRONT AXLE
220
PLATE FRONT SPRINGS TO FRONT AXLE
220
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
240
RUBBER BUFFER SPRING STOP
250
PIN FRONT SPRINGS TO FRONT AXLE
250
PIN , Replaced By: A6573310074
250
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
250
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
260
SHOCK ABSORBER , Replaced By: A0063230700
260
SHOCK ABSORBER , Replaced By: A0063230700
260
SHOCK ABSORBER
260
SHOCK ABSORBER
260
SHOCK ABSORBER
270
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
270
RUBBER BUFFER , Replaced By: A0003233144
270
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
270
RUBBER MOUNTINGTO 003 326 46 00
280
SPACER RINGTO 002 323 86 00,003 323 03 00,
280
BUSHINGTO 004 323 52 00
290
BRACKET SHOCK ABSORBER TO FRONT SPRING
300
SCREW SHOCK ABSORBER TO FRONT SPRING M 22X130
310
SCREW , Replaced By: N000960016250
310
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
320
NUT , Replaced By: N910113022001
320
NUT SHOCK ABSORBER TO FRONT SPRING, Replaced By: N910113022000
320
NUT FRONT SPRING TO SPRING BRACKET
330
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
330
NUT COMBINATION CYLINDER TO BEARING BRACKET
