Поз.
Артикул
Описание

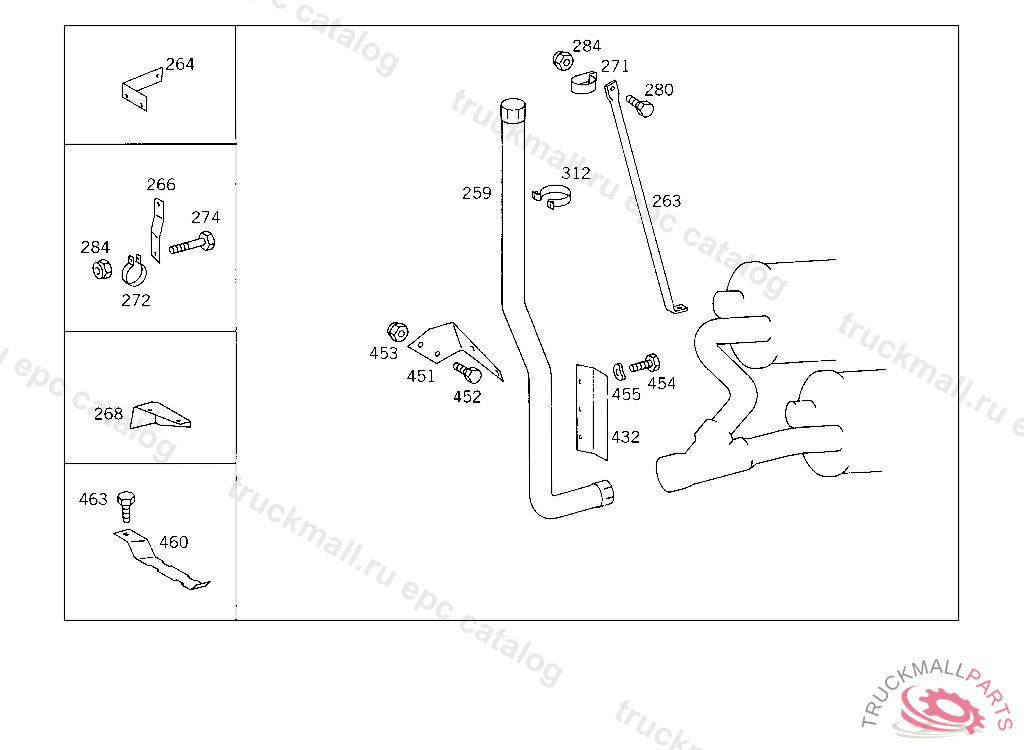

259
END PIECE BEHIND CAB,UPWARD
259
REAR EXHAUST PIPE , Replaced By: A6574921904
259
REAR EXHAUST PIPE UPWARD, TO BE ADAPTED DURING ASSEMBLY
259
END PIECE
259
REAR EXHAUST PIPE UPWARD, TO BE ADAPTED DURING ASSEMBLY
259
END PIECE
259
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6554921305
259
REAR EXHAUST PIPE BEHIND CAB,UPWARD
259
REAR EXHAUST PIPE , Replaced By: A6554922904
259
REAR EXHAUST PIPE , Replaced By: A6254921114
259
END PIECE BEHIND CAB,UPWARD
263
BRACKET STRUT
264
BRACKET AT SIDE MEMBER,K 120829
264
BRACKET AT SIDE MEMBER,K 120829
264
BRACKET REAR EXHAUST PIPES
266
BRACKET AT CROSS MEMBER
268
BRACKET VERTICAL TAIL PIPE
268
BRACKET VERTICAL TAIL PIPE BEHIND CAB
271
CLAMP EXHAUST PIPE TO BRACKET
272
CLAMP , Replaced By: N071555124501
272
CLAMP END PIECE TO EXHAUST PIPE
272
CLAMP END PIECE TO EXHAUST PIPE
274
SCREW , Replaced By: N308676014020
274
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
274
SCREW BRACKET TO CAB CONSOLE,K 035197
274
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
274
SCREW , Replaced By: N308676014012
274
SCREW SUPPORT TO SIDE MEMBER M 14X45
280
SCREW END PIECE TO EXHAUST PIPE M 10X25
280
SCREW END PIECE TO EXHAUST PIPE M 10X25
284
NUT , Replaced By: N910113010000
284
NUT STRAP TO BRACKET
284
NUT STRAP TO BRACKET
284
NUT STRAP TO BRACKET
284
NUT STRAP TO BRACKET
284
NUT STRAP TO BRACKET
312
CLAMP EXHAUST PIPE TO BRACKET
312
CLAMP , Replaced By: A6454900341
312
CLAMP UPPER EXHAUST PIPE TO BRACKET
432
PROTECTIVE PLATE EXHAUST PIPE
451
BRACKET BEARING BRACKET
451
BRACKET BEARING BRACKET
452
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
452
SCREW GUSSET PLATE TO CROSS MEMBER
452
SCREW BRACKET TO SIDE MEMBER
453
NUT , Replaced By: N910113014001
453
NUT BRACKET TO SIDE MEMBER
453
NUT BRACKET TO SIDE MEMBER
454
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
455
SPRING WASHER , Replaced By: N000137008212
455
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
460
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
460
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
463
SCREW BRACKET TO FRAME SIDE MEMBER
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
463
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO SIDE MEMBER
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
REAR EXHAUST PIPE ,5 501689, Replaced By: A6584920104
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE ,5 501689
999
BRACKET TAIL PIPE,5 756872K 015412
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE AT MUFFLER,LEFT
999
REAR EXHAUST PIPE AT MUFFLER,RIGHT
999
REAR EXHAUST PIPE AT MUFFLER,LEFT
999
REAR EXHAUST PIPE AT MUFFLER,RIGHT
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
BASE PLATE TAIL PIPES TO BRACKET,K 120830
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE ON THE RIGHT
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE , Replaced By: A6554901021
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE , Replaced By: A6554922914
999
BRACKET VERTICAL TAIL PIPE
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE , Replaced By: A6554926905
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
BRACKET , Replaced By: A6554922941
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6554922041
999
END PIECE ,K 005042
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER,5 557346
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE , Replaced By: A6554922814
999
REAR EXHAUST PIPE ,5 444691
999
END PIECE TAIL PIPE,5 756873
999
PROTECTIVE PLATE SCREENING PLATE,5 547064
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE TAIL PIPE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
EXHAUST PIPE REAR
999
PROTECTIVE PLATE (HEAT SHIELD)
999
CLAMP , Replaced By: A6454900341, +002A6244920053
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE REAR,K 002403
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
BRACKET EXHAUST MUFFLER
999
BRACKET TAIL PIPE
999
BASE PLATE TAIL PIPES TO BRACKET,K 120829
999
BRACKET POSTERIOR MUFFLER TO SIDE MEMBER
999
EXHAUST MUFFLER ,5 535800
999
EXHAUST MUFFLER ,5 518156
999
EXHAUST MUFFLER
999
REAR EXHAUST PIPE , Replaced By: A6254921114
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
BRACKET , Replaced By: A6204925341
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
SUPPORT TAIL PIPE ON THE RIGHT
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
BRACKET ,5 535799, Replaced By: A6204925341
999
CONSOLE REAR EXHAUST MUFFLER 276 MM
999
CONSOLE REAR EXHAUST MUFFLER 126 MM
999
BRACKET EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
MOUNTING LEFT VIBRATION ABSORBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
BRACKET RUBBER BUFFER,5 129244
999
DAMPING PAD PARTICLE FILTER
999
RUBBER BUFFER BRACKET TO SUPPORT
