Поз.
Артикул
Описание

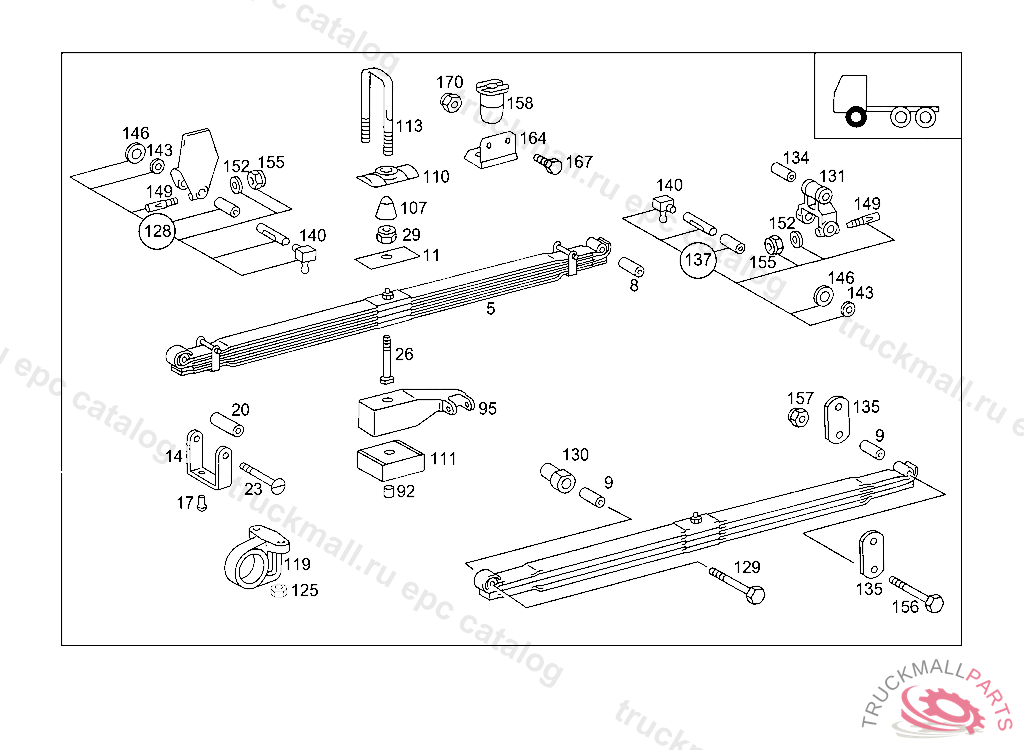

5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4",K 083474
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 3,4 7434944 877629
8
BUSHING FRONT
8
BUSHING FRONT
9
RUBBER MOUNTING
11
SHIM SPRING LEAF
11
SHIM SPRING LEAF
11
SHIM SPRING LEAF
14
SPRING CLAMP SPRING EYE,REAR,5 533058
14
SPRING CLAMP SPRING EYE,FRONT AND REAR,5 1933955 533057
17
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
20
SPACER TUBE SPRING CLAMP
20
SPACER TUBE SPRING CLAMP
23
SCREW FOR SPRING CLAMPS
23
SCREW FOR SPRING CLAMPS
26
SCREW (SPRING BOLT)
29
NUT STEERING SUPPORT TO FRAME
29
NUT , Replaced By: N910113014000
92
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
92
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
92
PIN , Replaced By: A6573310074
95
SHIM BETWEEN SPRING AND SHIM,RIGHT, NOT APPLICABLE TO 620.086,096,466, 621.086,096,097,466, 623.068,073,473
95
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
95
SHIM FRONT SPRINGS TO FRONT AXLE
95
SHIM FRONT SPRINGS TO FRONT AXLE
95
SHIM FRONT SPRINGS TO FRONT AXLE
107
RUBBER BUFFER SPRING STOP
110
PLATE FRONT SPRINGS TO FRONT AXLE
110
PLATE , Replaced By: A6483310026
110
PLATE FRONT SPRINGS TO FRONT AXLE
113
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
113
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
113
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
119
BEARING BRACKET FRONT AXLE TORSION BAR
125
NUT REAR SPRING TO REAR AXLE
125
NUT , Replaced By: N308674020000
125
NUT , Replaced By: N308673020002
128
SHACKLE PIN PARTS KIT
129
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
130
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
131
SHACKLE FRONT SPRING
134
BUSHING FRONT
134
BUSHING FRONT
135
SHACKLE FRONT SPRING,REAR,K 083474
137
SHACKLE PIN PARTS KIT
140
GREASE NIPPLE
143
WASHER AS REQUIRED 4.30 MM
143
WASHER AS REQUIRED 4.20 MM
143
WASHER AS REQUIRED 4.00 MM
146
SEAL RING SPRING SUSPENSION
149
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
152
WASHER RADIATOR TO RUBBER MOUNTING
152
WASHER , Replaced By: N000125010532
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
156
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
157
NUT FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET,K 062389
158
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
164
BRACKET HELPER SPRING
167
SCREW REAR EXHAUST PIPE TO MUFFLER
170
NUT STRAP TO BRACKET
170
NUT , Replaced By: N910113010000
