Поз.
Артикул
Описание
5

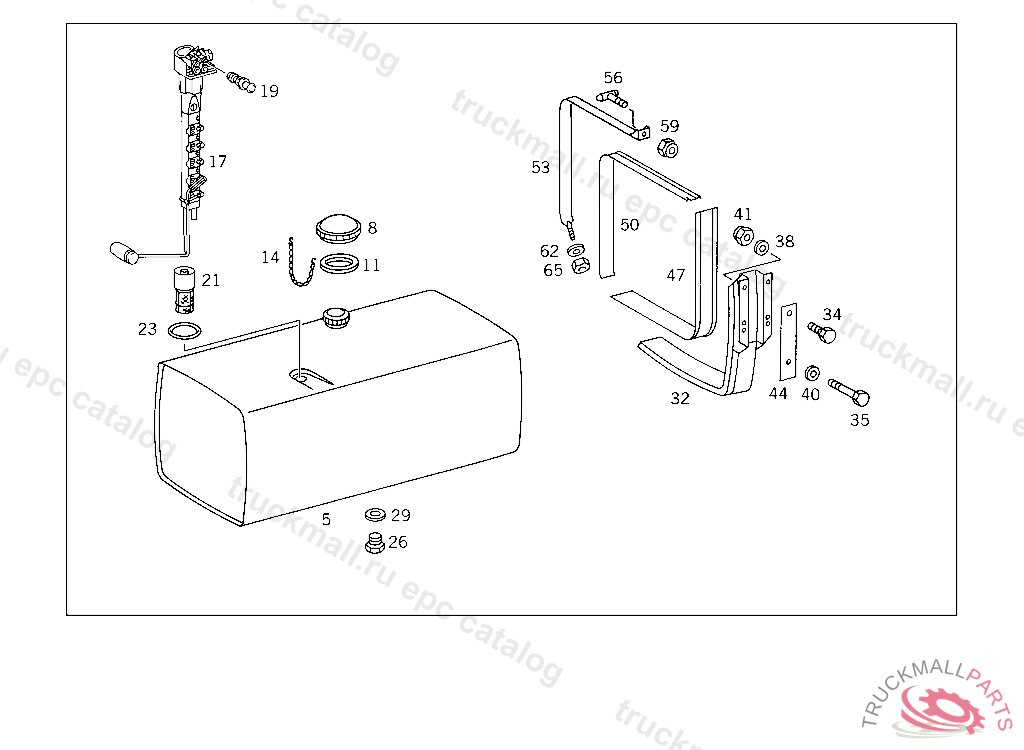

FUEL TANK400 L
8
FILLER CAP
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE
17
SENDER UNIT FUEL GAUGE
17
SENDER UNIT , Replaced By: A0085428117
17
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
19
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
21
FUEL STRAINER FUEL TANK,K 169123
21
FUEL STRAINER FUEL TANK,K 169123
21
FUEL STRAINER FUEL TANK,K 169122
21
FUEL STRAINER FUEL TANK,K 169122
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
26
SCREW PLUG FUEL DISCHARGE
29
SEALING RING. SEAL RING FUEL TANK
29
SEAL RING , Replaced By: N007603014402
32
SUPPORT FRONT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FRONT AND REAR
32
SUPPORT FRONT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT FRONT FUEL TANK
32
SUPPORT FRONT AND REAR
32
SUPPORT REAR FUEL TANK
32
SUPPORT FUEL TANK,FRONT AND REAR
32
SUPPORT FUEL TANK,FRONT AND REAR
32
SUPPORT FUEL TANK,FRONT AND REAR
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT FUEL TANK,FRONT AND REAR
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT REAR FUEL TANK
32
SUPPORT FUEL TANK
32
SUPPORT REAR FUEL TANK
34
SCREW , Replaced By: N308676014012
34
SCREW SUPPORT TO SIDE MEMBER M 14X45
35
SCREW STEERING SUPPORT TO FRAME M 14X50
35
SCREW STEERING SUPPORT TO FRAME M 14X55
35
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
35
SCREW STABILIZER TO BEARING
35
SCREW CROSS MEMBER ON BEARING BRACKET
35
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
35
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
35
SCREW , Replaced By: N308676014013
35
SCREW ROD TO TRANSFER CASE M 14X65
35
SCREW PROPELLER SHAFT TO TRANSMISSION
35
SCREW , Replaced By: N000961014158
35
SCREW , Replaced By: N308676014014
35
SCREW ROD TO TRANSFER CASE M 14X75
35
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
35
SCREW , Replaced By: N308676014012
35
SCREW , Replaced By: N308676014014
35
SCREW SUPPORT TO SIDE MEMBER M 14X45
38
WASHER SUPPORT TO SIDE MEMBER
38
WASHER SPARE WHEEL CARRIER
38
WASHER SPARE WHEEL CARRIER
40
WASHER , Replaced By: A3209901840
40
WASHER BRACKET TO SIDE MEMBER,5 703114
41
NUT , Replaced By: N910113014000
41
NUT STEERING SUPPORT TO FRAME
44
SHIM SUPPORT TO SIDE MEMBER
44
SHIM SUPPORT TO FRAME 240X40X5 MM
44
BASE CONSOLE TO SIDE MEMBER
44
SHIM SUPPORT TO SIDE MEMBER
44
SHIM SUPPORT TO SIDE MEMBER
44
SHIM SUPPORT TO SIDE MEMBER
44
BASE CONSOLE TO SIDE MEMBER
44
SHIM APPARATUS SUPPORT
44
SHIM , Replaced By: A3614750019, +001A3974750084
44
BASE SUPPORT TO SIDE MEMBER
47
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
47
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
47
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
53
STRAP FUEL TANK TO SUPPORT
56
SCREW STRAP TO SUPPORT
59
NUT , Replaced By: N910113014001
59
NUT BRACKET TO SIDE MEMBER
62
WASHER
65
NUT SUPPORT TO SIDE MEMBER
999
SHIM SUPPORT TO FRAME
999
WASHER ENGINE REAR MOUNTING, AT FRAME 8 MM, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SUPPORT TO SIDE MEMBER
