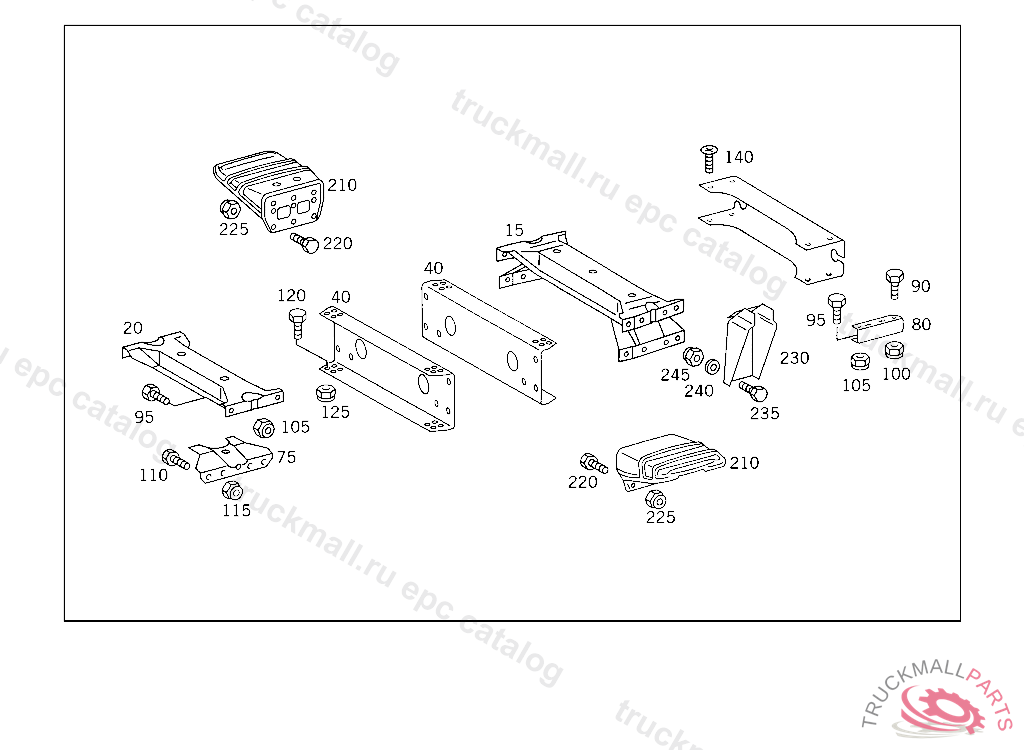

Поз.
Артикул
Описание
15
CROSS MEMBER IN FRAME BEND
15
CROSS MEMBER , Replaced By: A3913100136
20
CROSS MEMBERNO.3B
20
CROSS MEMBERNO.3B
40
CROSS MEMBER CENTRAL BEARING
40
CROSS MEMBER , Replaced By: A6533120025
75
REINFORCEMENT LEFT AND RIGHT
80
REINFORCEMENT LEFT AND RIGHT
90
SCREW , Replaced By: N308676014020
90
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
95
SCREW PROPELLER SHAFT BEARING TO CROSS MEMBER
100
NUT , Replaced By: N910113014001
100
NUT BRACKET TO SIDE MEMBER
105
NUT , Replaced By: N910113010002
105
HEXAGON NUT
110
SCREW TRANSMISSION MOUNTING
110
SCREW TRANSMISSION MOUNTING
115
NUT TRANSMISSION MOUNTING
115
NUT TRANSMISSION MOUNTING
120
SCREW , Replaced By: N308676014020
120
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
120
SCREW GUSSET PLATE TO SIDE MEMBER M 14X28
120
SCREW , Replaced By: N308676016020
120
SCREW CONSOLE TO FRAME
120
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
120
SCREW GUSSET PLATE TO SIDE MEMBER M 14X28
125
NUT , Replaced By: N910113014000
125
NUT STEERING SUPPORT TO FRAME
125
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
125
NUT COMBINATION CYLINDER TO BEARING BRACKET
125
NUT STEERING SUPPORT TO FRAME
140
SCREW BRACING TO FRAME M 14X45
140
SCREW REAR CROSS MEMBER TO SIDE MEMBERS
210
SUPPORT AIR SPRING BELLOWS,TOP
210
SUPPORT AIR SPRING BELLOWS,RIGHT
210
CONSOLE AIR SPRING BELLOWS,LEFT
220
SCREW , Replaced By: N308676016007
220
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
220
SCREW , Replaced By: N308676016006
220
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
220
SCREW BEARING BRACKET TO SIDE MEMBER
220
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
220
SCREW , Replaced By: N308676016015
220
SCREW BRACKET TO ENGINE MOUNTING
220
SCREW , Replaced By: N308676016004
220
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
220
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
220
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
220
SCREW , Replaced By: N000960016261
220
SCREW , Replaced By: N308676016014
220
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
225
NUT , Replaced By: N910113016001
225
NUT CONSOLE TO SUPPORT
225
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
225
NUT COMBINATION CYLINDER TO BEARING BRACKET
230
BRACKET SHOCK ABSORBER,TOP
230
BRACKET SHOCK ABSORBER,TOP
230
BRACKET
235
SCREW BRACKET TO FRAME M 12X35
235
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
235
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
235
SCREW , Replaced By: A9429901304
235
SCREW APPARATUS SUPPORT TO FRAME
240
WASHER
240
WASHER
245
NUT , Replaced By: N910113012003
245
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
245
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
245
NUT , Replaced By: N910113014000
245
NUT STEERING SUPPORT TO FRAME
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
999
FRAME , STATE IDENT NO. WHEN ORDERING
