Поз.
Артикул
Описание

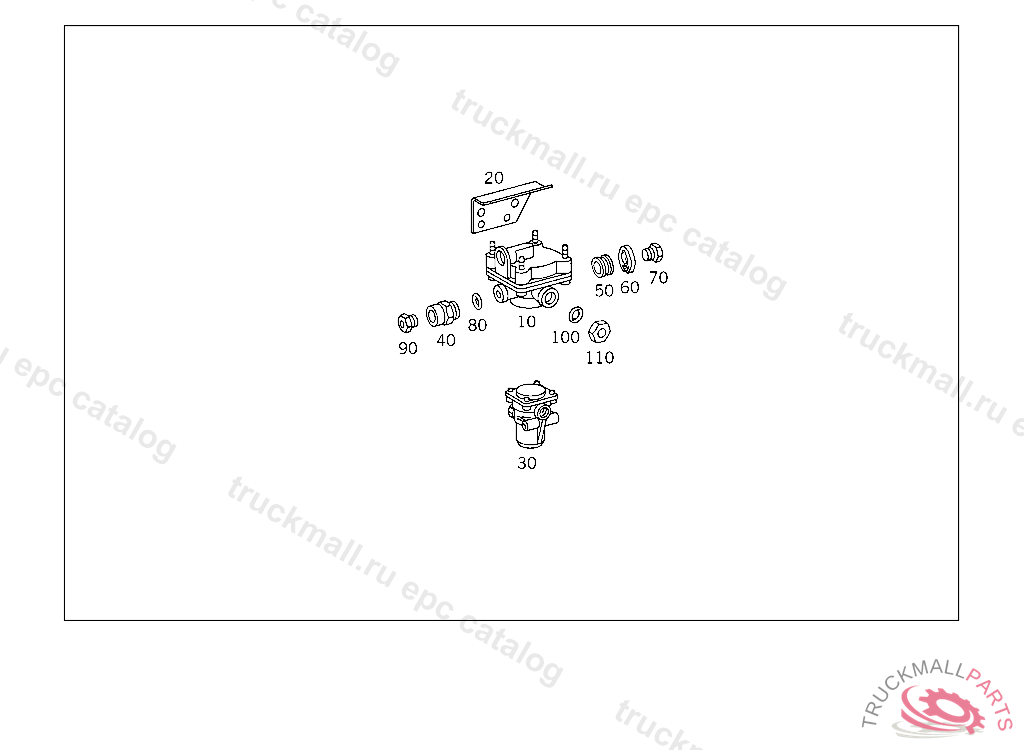

10
VALVE PRESSURE LIMITER FOR BELLOWS RESIDUAL PRESSURE
20
BRACKET OVERFLOW VALVE
30
VALVE (PRESSURE LIMIT VALVE)
40
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
40
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
50
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
50
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
60
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
60
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
70
SCREW. UNION SCREW LINE CONNECTION
70
SCREW. UNION SCREW LINE CONNECTION
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
90
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
90
SCREW PLUG , Replaced By: N000908022011
90
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
110
NUT , Replaced By: N913004008001
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KITWABCO
