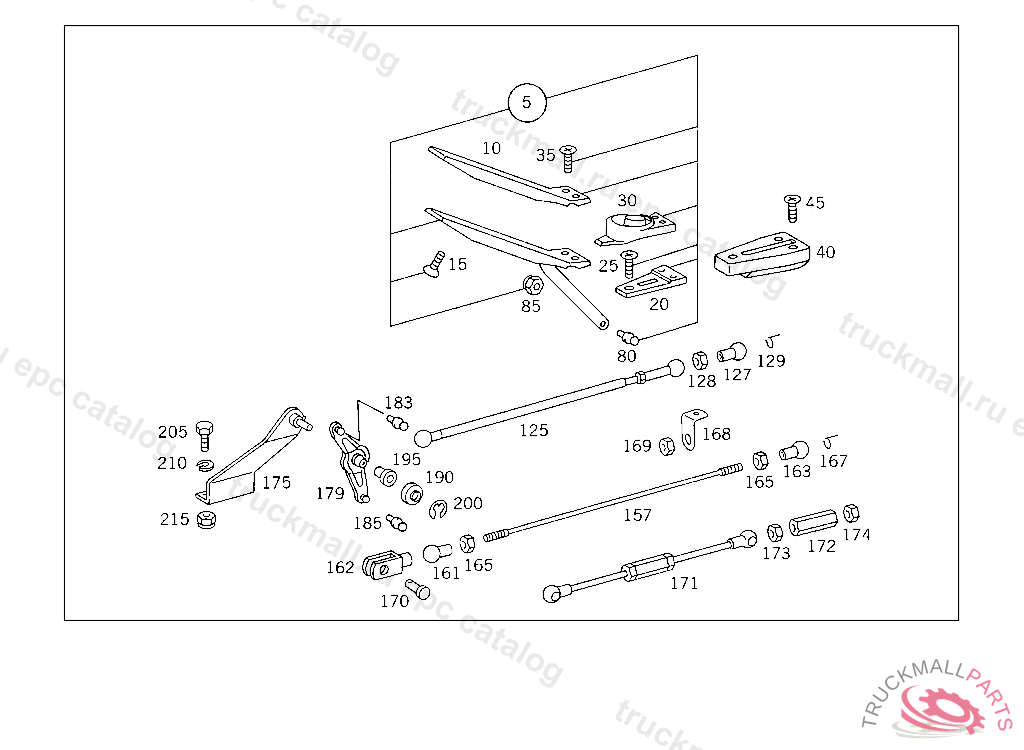

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
10
PAD ACCELERATOR PEDAL
15
SCREW ACCELERATOR PEDAL
20
SHIM ACCELERATOR PEDAL
25
SCREW ACCELERATOR PEDAL TO CAB M 6X20
30
BOOT ACCELERATOR PEDAL
35
SCREW ACCELERATOR PEDAL TO CAB M 6X25
40
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
45
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
80
BALL PIVOT LOAD SENSOR
85
NUT , Replaced By: N913004006001
85
NUT PUMP TO BRACKET
125
ROD LOAD SENSOR CONTROL
125
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
125
ROD LOAD SENSOR CONTROL
125
ROD FROM INTERMEDIATE LEVER TO ENGINE
127
BALL SOCKET PULL ROD TO LEVER
128
NUT BALL PIVOT TO LEVER
129
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
157
ROD FROM INTERMEDIATE LEVER TO ENGINE
157
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
161
BALL SOCKET ROD TO BALL PIVOT
162
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
163
BALL SOCKET ROD TO BALL PIVOT
165
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
165
NUT
165
NUT , Replaced By: N304032008006
167
SECURING CLIP. CIRCLIP
168
BRACKET FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
169
NUT , Replaced By: N304032008006
169
NUT
169
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
170
PIN ROD TO LEVER
171
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
172
NUT TURNBUCKLE
173
NUT
173
NUT , Replaced By: N304032008006
174
NUT INTERMEDIATE SPEED STOP
175
BEARING BRACKET INTERMEDIATE LEVER,5 943507
175
BEARING BRACKET INTERMEDIATE BEARING
175
BEARING BRACKET INTERMEDIATE BEARING
175
BEARING BRACKET INTERMEDIATE BEARING
175
BEARING BRACKET INTERMEDIATE BEARING
175
BEARING BRACKET INTERMEDIATE LEVER,5 943507
179
LEVER (INTERMEDIATE LEVER)
179
LEVER (INTERMEDIATE LEVER)
179
LEVER INTERMEDIATE BEARING
179
LEVER (INTERMEDIATE LEVER),5 943507
179
LEVER (INTERMEDIATE LEVER),5 943507
179
LEVER (INTERMEDIATE LEVER)
179
LEVER INTERMEDIATE BEARING
179
LEVER INTERMEDIATE BEARING
183
BALL PIVOT BOTTOM B13X5 MM
185
BALL STUD. BALL PIVOT TOP B10X4,5 MM
190
COVERING INTERMEDIATE BEARING
195
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
200
LOCK PLATE INTERMEDIATE BEARING
205
SCREW PIPE CLAMP
205
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
205
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
205
SCREW BRACKET TO SIDE MEMBER
205
SCREW , Replaced By: N304017008016
205
SCREW , Replaced By: N304017008021
205
SCREW , Replaced By: N304017008008
205
SCREW CLAMP TO BRACKET AND TO PIPE
205
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
NUT , Replaced By: N910113010000
215
NUT , Replaced By: N913004008001
215
NUT STRAP TO BRACKET
999
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
999
ROD , Replaced By: A6583010515, +001A3853010040, +001A4069910022, +001N071752008003
