Поз.
Артикул
Описание

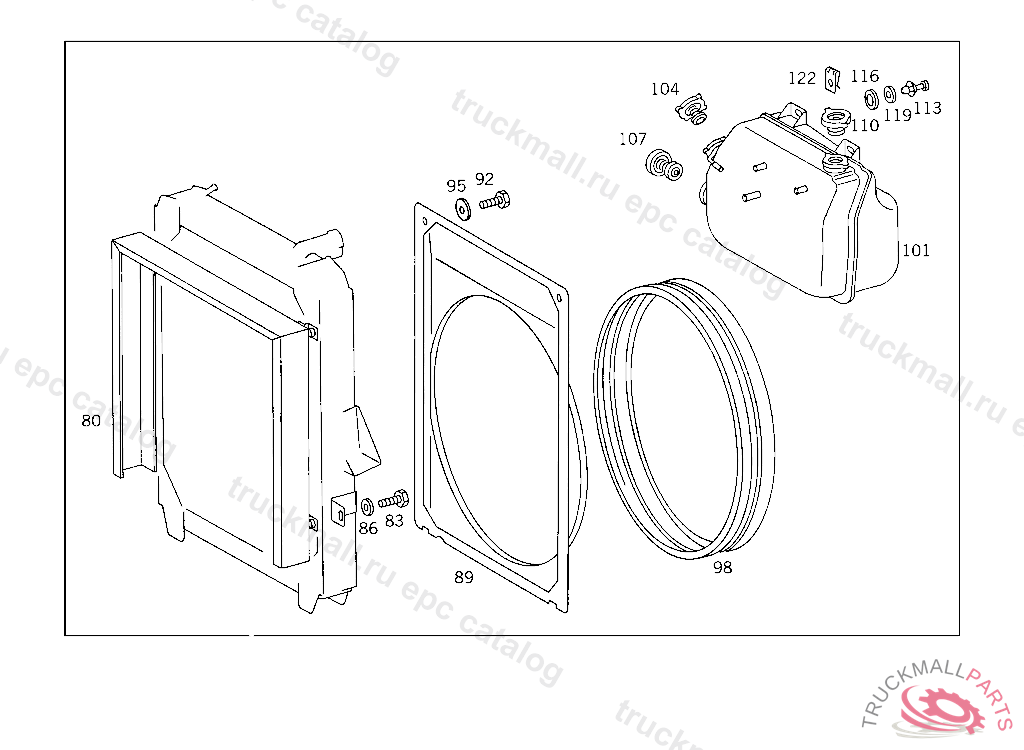

89
FAN SHROUD
89
FAN SHROUD RADIATOR
92
SCREW OVERLOAD PROTECTOR TO BRACKET
95
WASHER , Replaced By: N009021006208
98
BOOT FAN SHROUD
101
TANK (EXPANSION TANK)
104
RADIATOR CAP FILLER NECK
107
RADIATOR CAP
110
RADIATOR CAP CENTRAL
113
RIVET COOLANT LINE ON FAN SHROUD
116
RUBBER MOUNTING EXPANSION TANK TO BRACKET
119
WASHER , Replaced By: N000125017016
122
CLIP RESERVOIR TO CAB FRONT PANEL
122
LOCK AT WATER EXPANSION TANK
999
BRACKET AIR BAFFLE,D 008205
999
BRACKET AIR BAFFLE,D 008205
999
RADIATOR ,824938
999
SHIM ,D 008205
999
AIR BAFFLE ,D 008205D 147395
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW BRACKET TO BUMPER,LEFT M 10X25
999
NUT BRACKET TO LEFT SIDE MEMBER
