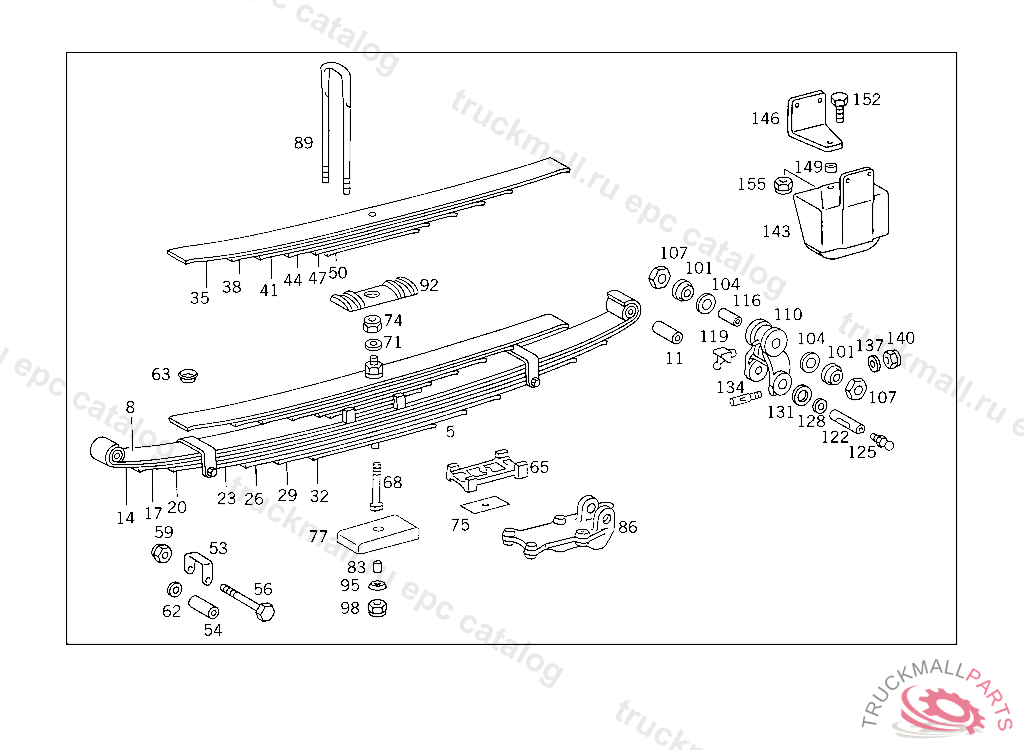

Поз.
Артикул
Описание
5
REAR SPRING 5-LEAF, WITH 4-LEAF HELPER SPRING
5
REAR SPRING 5-LEAF, WITH 4-LEAF HELPER SPRING
8
SPRING LEAFNO.1,TO 388 320 70 08
8
SPRING LEAFNO.1,TO 621 320 02 08
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,TO 388 320 70 08
14
SPRING LEAFNO.2
17
SPRING LEAFNO.3,TO 388 320 70 08
17
SPRING LEAFNO.3
20
SPRING LEAFNO.4,TO 388 320 70 08
20
SPRING LEAFNO.4
23
SPRING LEAFNO.5,TO 388 320 70 08
23
SPRING LEAFNO.5
35
SPRING LEAF HELPER SPRING NO.1,TO 388 320 70 08
35
SPRING LEAFNO.1
38
SPRING LEAF HELPER SPRING NO.2,TO 388 320 70 08
38
SPRING LEAFNO.2
41
SPRING LEAF HELPER SPRING NO.3,TO 388 320 70 08
41
SPRING LEAFNO.3
44
SPRING LEAF HELPER SPRING NO.4,TO 388 320 70 08
44
SPRING LEAFNO.4
53
SPRING CLAMPTO 388 320 70 08
53
SPRING CLAMPTO 388 320 70 08
53
SPRING CLAMP , Replaced By: A0023218933
54
SPACER TUBE SPRING CLAMP TO SPRING LEAF NO.3, TO 682 320 74 02
56
SCREW , Replaced By: A0079900601
56
SCREWM 12X1.5X130
59
NUT
62
WASHER FOR SPRING CLAMPS
63
LOCKING CONETO 388 320 70 08
65
SPACERTO 388 320 70 08
65
SPACER
65
SPACER REAR SPRING
68
SPRING BOLTTO 388 320 70 08
68
SPRING BOLT REAR SPRING
74
NUT TORSION BAR TO BEARING BRACKET,5 904661
75
SHIM
77
PAD REAR SPRING TO REAR AXLE HOUSING WITH DIFFERENTIAL
83
PIN BEARING BRACKET
86
BEARING TORSION BAR AND SHOCK ABSORBER,RIGHT
86
BEARING TORSION BAR AND SHOCK ABSORBER,LEFT
89
U-BOLT , Replaced By: A3893510025
92
SPRING CLAMPING PLATE REAR SPRING TO REAR AXLE
92
SPRING CLAMPING PLATE REAR SPRING TO REAR AXLE
95
WASHER STEEL VERSION
98
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
101
THRUST WASHER SHACKLE TO REAR-SPRING REAR BRACKET, OUTSIDE
101
THRUST WASHER SHACKLE TO REAR-SPRING REAR BRACKET, INSIDE
104
SEAL RING SHACKLE TO REAR-SPRING REAR BRACKET
107
NUT SHACKLE TO REAR-SPRING REAR BRACKET
110
SHACKLE , Replaced By: A6213250220, +002A3353240050
116
BUSHING
119
GREASE NIPPLE FOR SPRING
122
SHACKLE PIN REAR SPRING TO SPRING SHACKLE
122
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
125
GREASE NIPPLE PROTECTIVE TUBE
128
WASHER , Replaced By: A3523231076
128
WASHER4.30 MM
128
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
128
WASHER AS REQUIRED 4.2 MM
128
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
128
WASHER AS REQUIRED 4.0 MM
131
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
134
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
137
WASHER GROUND CABLE
140
NUT BRACKET TO SIDE MEMBER,XB209706
143
RUBBER BUFFER REAR SPRING STOP
146
ANGLE RUBBER MOUNTING TO FRAME
149
SPACER TUBE RUBBER MOUNTING TO FRAME
152
SCREW BRACKET TO FRAME M 10X45
155
NUT BRACKET TO SIDE MEMBER,XB209706
