Поз.
Артикул
Описание

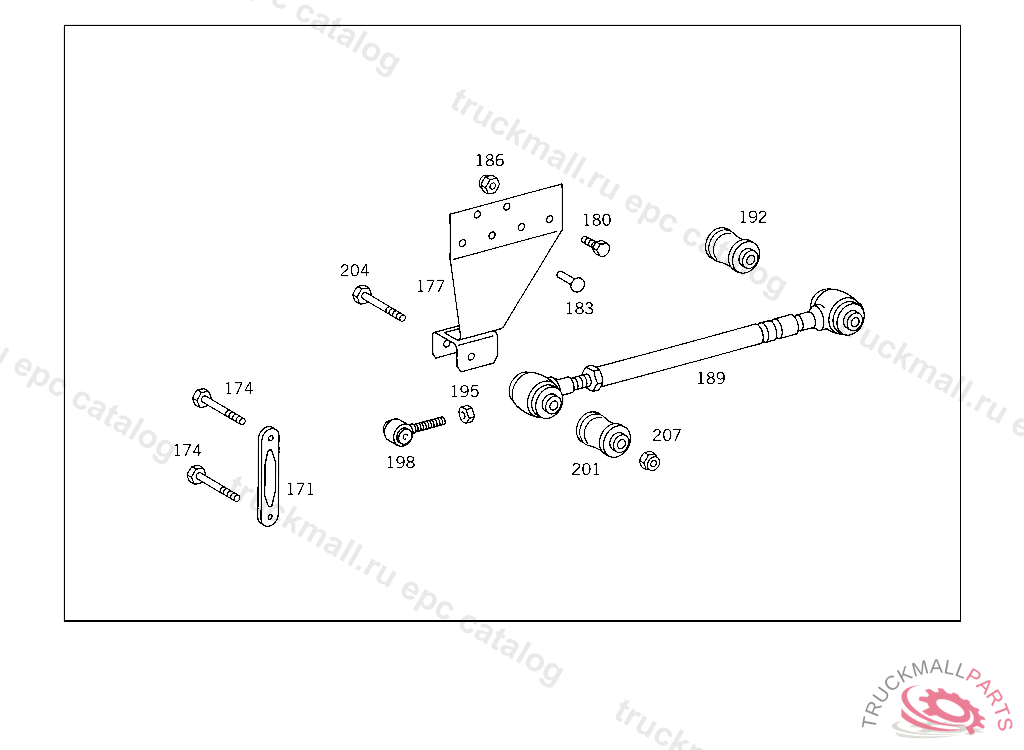

171
SHACKLE FRONT AXLE TORSION BAR 125 MM, ONLY APPLICABLE TO SPECIAL AMBULANCE/EMERGENCY DOCTOR'S VEHICLE TORSION BAR BEARING WITH DOUBLE SHACKLE 852362 N 000001 P 000001
171
SHACKLE TORSION BAR TO CONSOLE, N 000001 P 136823
171
SHACKLE
174
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
177
BRACKET THRUST ARM,LEFT, N 000001 P 137005
177
BRACKET THRUST ARM,LEFT, N 000001 P 137005
177
BRACKET THRUST ARM,RIGHT, N 000001 P 084501
177
BRACKET THRUST ARM,RIGHT, N 000001 P 137005
180
SCREW BRACKET TO SIDE MEMBER, N 000001 P 084501
180
SCREW BRACKET TO SIDE MEMBER, N 000001 P 137005
183
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
186
HEXAGON NUT
186
NUT , Replaced By: N910113010002
189
THRUST ARM AT BRACKET AND SHACKLE, N 000001 P 138315
192
RUBBER MOUNTING
195
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
198
LINK (ARTICULATED ROD)
201
RUBBER MOUNTING
204
SCREW CONSOLE TO CROSS MEMBER
207
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
