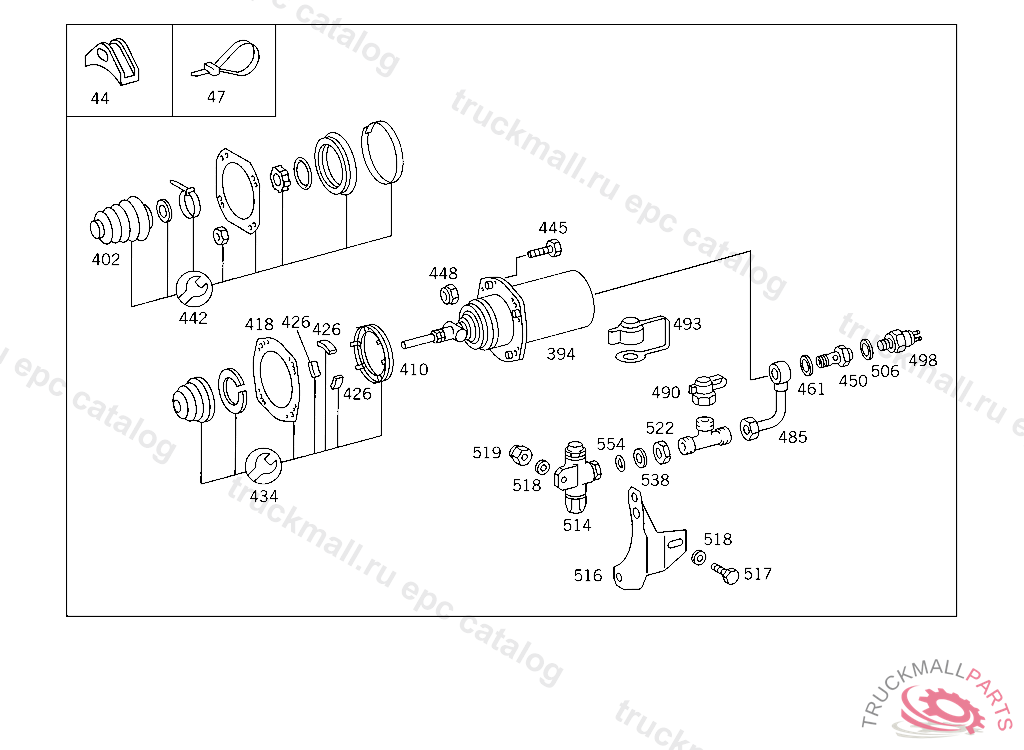

Поз.
Артикул
Описание
44
BRACKET FUEL LINE TO CROSS MEMBER
47
LOOM TIE LINE MOUNTING
394
BRAKE CYLINDER SPRING LOAD ACCUMULATOR KNORR
394
BRAKE CYLINDER SPRING LOAD ACCUMULATOR BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
402
CUPTO 000 431 76 14
410
CUPTO 000 431 24 14
418
SEAL RINGTO 000 431 24 14
426
SLIDETO 000 431 50 14,000 431 24 14
434
REPAIR KITTO 001 431 65 14,000 431 24 14
434
REPAIR KIT , Replaced By: A0034201724
442
REPAIR KITTO 000 431 76 14
445
HEXAGON HEAD BOLT BRACKET TO BRACKET
448
NUT CROSS MEMBER TO SIDE MEMBERS
450
T-FITTING , 845901 N 000000 P 000000, Replaced By: A0029906170, +001A6684207136, +002N007603016401
450
T-FITTING SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1", 845902 N 000001 P 000001
461
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
485
LINE FROM SPRING LOAD ACCUMULATOR CYLINDER TO LOCKING VALVE, 845902 N 000001 P 000001
485
LINE , Replaced By: A6684207136
490
TEST CONNECTION CONNECTION: 4.2,4 719029
490
TEST CONNECTION CONNECTION: 4.2,4 719029
493
PLUG
498
SWITCH SUPPLY PRESSURE
506
SEAL RING LINE CONNECTION
514
VALVE (SHUTTLE VALVE)
514
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0044292144
516
BRACKET , Replaced By: A6684313640
516
BRACKET SHUTTLE VALVE
517
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
518
WASHER EXHAUST MUFFLER TO STRAP
519
NUT STRAP TO BRACKET
522
NUT INTERMEDIATE SPEED STOP
538
THRUST RING CHECK VALVE TO AIR RESERVOIR
538
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
538
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
554
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING ,4 261891
