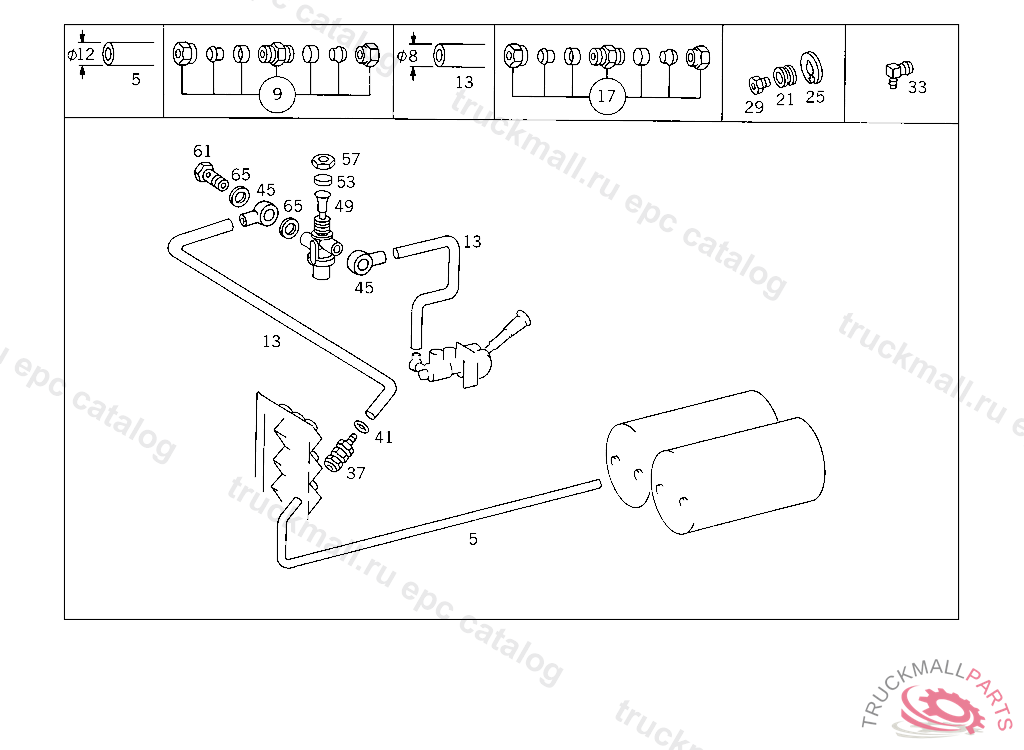

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
9
FITTING (PARTS KIT),LINE RUPTURE
13
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
17
FITTING (PARTS KIT),LINE RUPTURE
21
SEAL RING , Replaced By: A0009940747
21
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
21
LOCK RING LINE CONNECTION
25
LOCK LINE CONNECTION
25
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
25
LOCK , Replaced By: A0009945448
29
SCREW. UNION SCREW , Replaced By: A0009973734
29
SCREW. UNION SCREW LINE CONNECTION
29
SCREW. UNION SCREW LINE CONNECTION
33
ELBOW FITTING , Replaced By: A0049905371
33
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
37
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
41
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
45
BANJO UNION HEATING CONNECTION,K 169122
49
VALVE TWO-WAY,4 685151
53
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
57
NUT STARTER PILOT PUMP TO WINDOW SILL
61
HOLLOW SCREW , Replaced By: N915036010108
61
HOLLOW SCREW FUEL LINE TO FEED PUMP
65
SEAL RING FUEL LINE TO FEED PUMP
999
FITTING PARKING BRAKE VALVE
999
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
