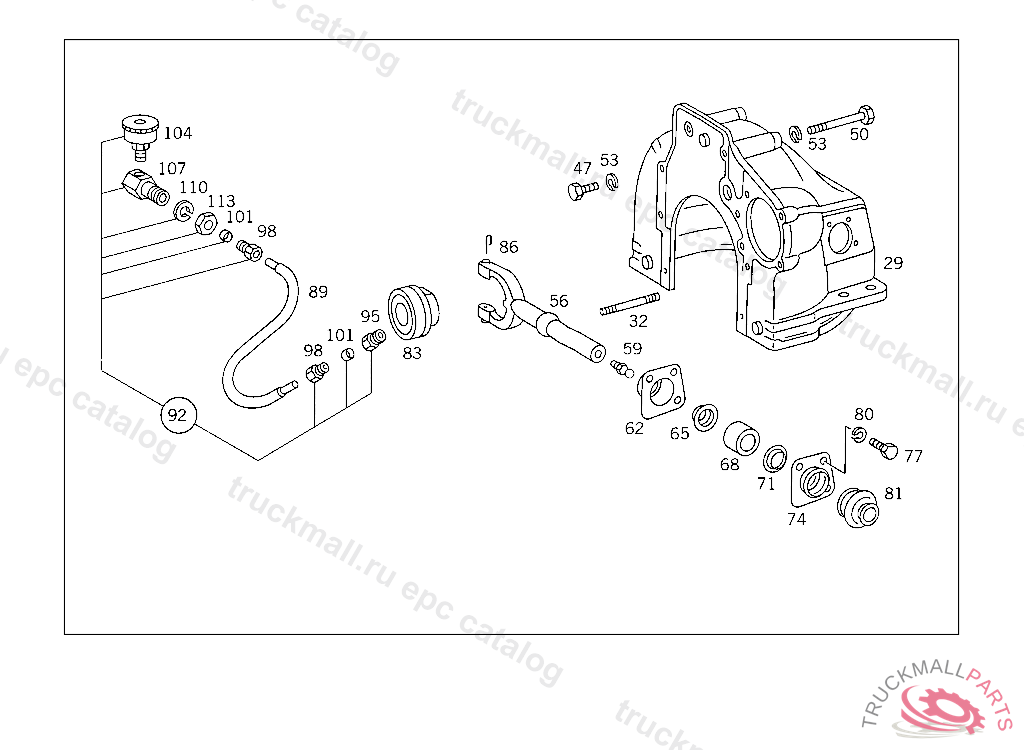

Поз.
Артикул
Описание
29
BELL HOUSING
32
STUD STARTING MOTOR MOUNTING
47
SCREW , Replaced By: N910105012025
47
SCREW , Replaced By: A0029906804
50
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X145
53
LOCK WASHER FITTING TO BRACKET
56
RELEASE LEVER (RELEASE YOKE)
59
BALL PIVOT RELEASE YOKE
59
BALL PIVOT RELEASE YOKE
62
BRACKET INSIDE
65
SEAL RING RELEASE YOKE
65
SEAL RING RELEASE YOKE
68
BEARING RELEASE YOKE
68
BEARING RELEASE YOKE
71
SEAL RING RELEASE YOKE
71
SEAL RING RELEASE YOKE
74
BRACKET OUTSIDE
77
SCREW PIPE CLAMP
77
SCREW , Replaced By: N304017008021
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
81
BOOT RELEASE YOKE
83
RELEASE BEARING , Replaced By: A0012509315
83
RELEASE BEARING , Replaced By: A0012509315
83
RELEASE BEARING
86
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
89
HOSE RELEASE BEARING LUBRICATION
92
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
95
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
98
UNION SCREW RELEASE COLLAR LUBRICATION
101
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
104
CAP RELEASE BEARING LUBRICATION
104
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
107
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
107
GREASE NIPPLE RELEASE COLLAR LUBRICATION
110
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
113
NUT RELEASE BEARING LUBRICATION
113
NUT , Replaced By: N308675014002
113
NUT , Replaced By: N308675014000
