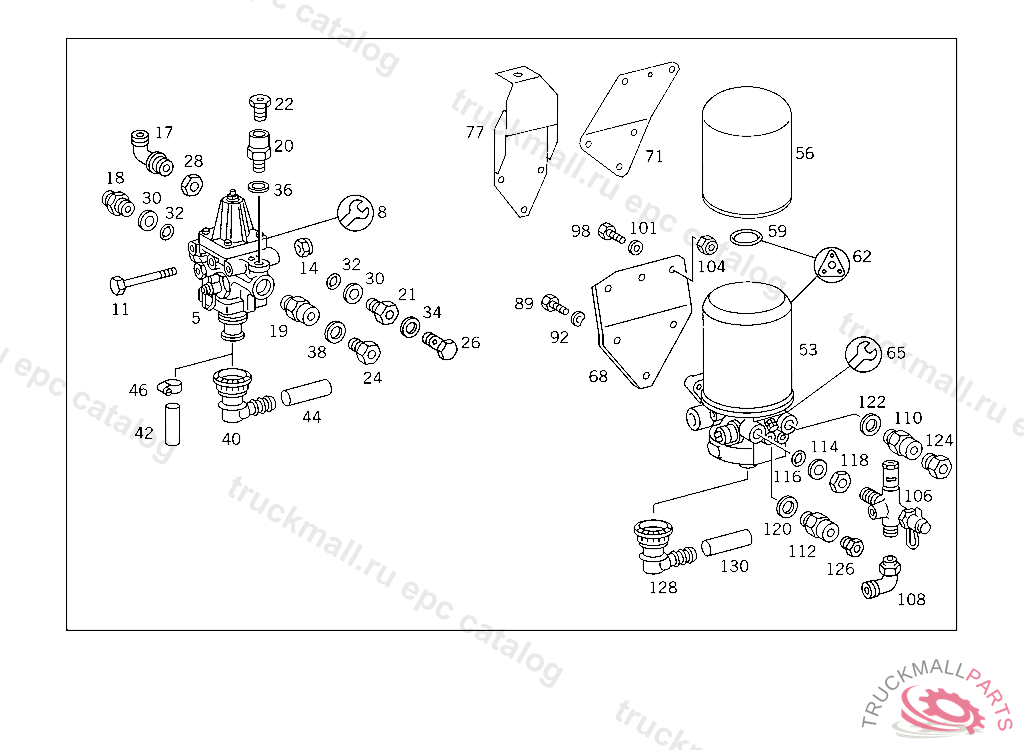

Поз.
Артикул
Описание
5
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
5
PRESSURE REGULATORBOSCH
5
PRESSURE REGULATORWABCO
5
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORKNORR 90310
5
PRESSURE REGULATORKNORR
5
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORKNORR
5
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION BOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORWABCO
5
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
8
REPAIR KIT SEAL RING BOSCH,209
8
REPAIR KIT PRESSURE REGULATOR WABCO
8
REPAIR KIT PRESSURE REGULATOR KNORR
8
REPAIR KIT PRESSURE REGULATOR BOSCH,241
8
REPAIR KITTO 002 431 84 06, KNORR 90310
8
REPAIR KITTO 002 431 83 06, KNORR 90309
8
REPAIR KIT DIAPHRAGM PART BOSCH,209
11
SCREW REAR AXLE REGULATING SOLENOID VALVE
14
NUT , Replaced By: N913004008001
18
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
18
FITTING SHUTTLE VALVE,CONNECTION: "20"
19
FITTING LINE CONNECTION
19
FITTING LINE CONNECTION
20
FITTING LINE CONNECTION
21
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
21
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
22
SCREW. UNION SCREW LINE CONNECTION
22
SCREW. UNION SCREW , Replaced By: A0009973734
24
SCREW. UNION SCREW LINE CONNECTION
26
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
28
NUT CHECK VALVE TO AIR RESERVOIR
30
THRUST RING CHECK VALVE TO AIR RESERVOIR
30
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
O-RING CHECK VALVE TO AIR RESERVOIR
34
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
36
SEAL RING LINE CONNECTION
38
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
42
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
46
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH
53
AIR DEHYDRATORBOSCH,5 937586
53
AIR DRIERKNORR,5 937586
53
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
53
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR
56
AIR CLEANER COMPLETE TO BOSCH,KNORR
56
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
59
SEAL RINGWABCO
62
GASKET KITKNORR
62
GASKET KITWABCO
62
GASKET KIT SEAL RINGS KNORR,5 937586
65
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
65
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
77
BRACKET AIR DEHYDRATOR,5 537473
89
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
89
SCREW , Replaced By: N308676012012
98
SCREW , Replaced By: N308676012026
101
WASHER BRACKET TO FRAME
104
NUT SUPPORT TO SIDE MEMBER
106
FITTING AIR DEHYDRATOR
108
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
110
FITTING LINE CONNECTION
112
FITTING LINE CONNECTION
114
THRUST RING CHECK VALVE TO AIR RESERVOIR
116
O-RING CHECK VALVE TO AIR RESERVOIR
118
NUT CHECK VALVE TO AIR RESERVOIR
120
SEAL RING LINE CONNECTION
122
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
124
SCREW. UNION SCREW LINE CONNECTION
126
SCREW. UNION SCREW , Replaced By: A0009973734
126
SCREW. UNION SCREW LINE CONNECTION
128
CONNECTOR 90 DEG. OFFSET
128
CONNECTOR BLEEDING
130
HOSE , Replaced By: A0009872927
130
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
