Поз.
Артикул
Описание

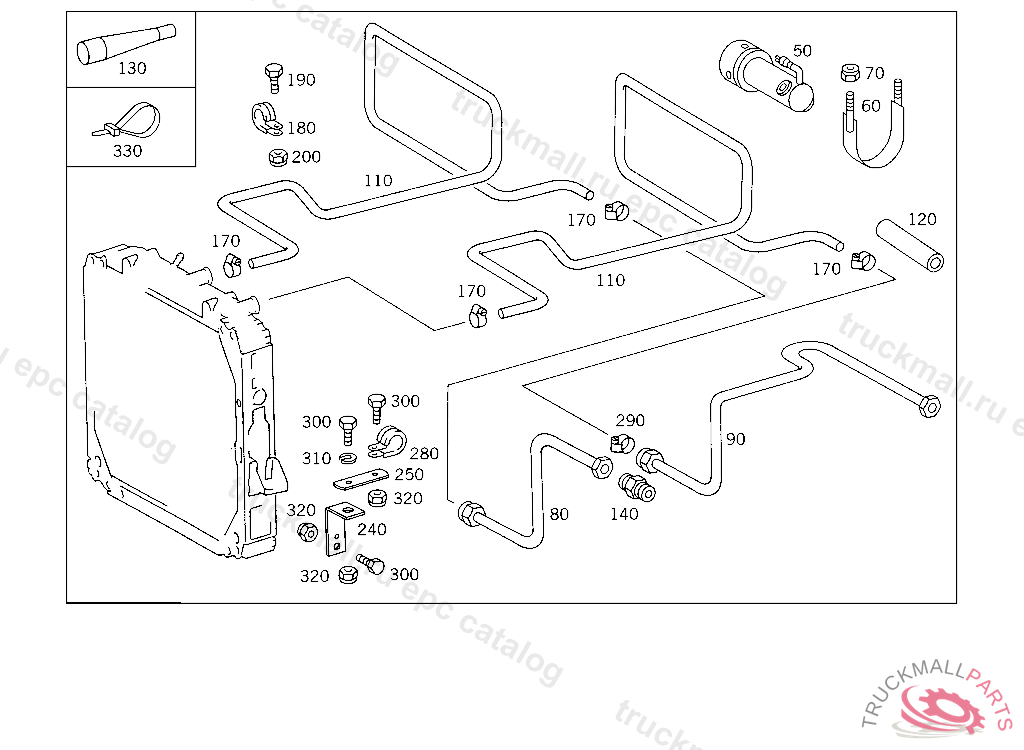

50
OIL PUMP
60
STRAP PUMP TO BRACKET
70
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
NUT , Replaced By: N913023010002
80
LINE RETURN LINE
80
LINE , Replaced By: A0004290101, +001N915003008202, +001N915008008402, +001N915017010200
80
LINE RETURN LINE
80
LINE RETURN LINE
80
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762709196
80
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
80
LINE ,5 746784
90
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
90
LINE , Replaced By: A0004290101, +001N915003008202, +001N915008008402, +001N915017010200
90
LINE FEED LINE
90
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762709296
90
LINE FEED LINE
90
LINE FEED LINE
90
LINE ,5 746784
110
LINE ,5 746784
110
PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762719896
110
PIPE ON OIL SUCTION FITTING,TRANSMISSION
110
LINE OIL LINE CONNECTION,5 746784
110
PIPE FROM PUMP DELIVERY END TO LINE
110
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6762710697
110
PIPE ON PUMP,SUCTION END
110
PIPE ON FITTING PTO,RETURN FLOW
110
PIPE OIL LINE CONNECTION,5 746785
110
PIPE OIL LINE CONNECTION,5 746785
110
PIPE OIL LINE CONNECTION,5 746785
110
PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6762719996
110
PIPE , Replaced By: A6762710697
110
PIPE , Replaced By: A6762710897
110
PIPE OIL LINE CONNECTION,5 746785
110
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6762710597
110
PIPE ON PUMP,PRESSURE END
120
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
120
HOSE OIL LINE CONNECTION,FEED
120
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 006434, Replaced By: A6769970282
120
HOSE OIL LINE CONNECTION,RETURN FLOW
120
INSULATING HOSE STARTING CABLE
120
HOSE , Replaced By: A0005468930
120
HOSE , Replaced By: A0189975582
120
HOSE OIL LINE CONNECTION
120
HOSE FROM RADIATOR TO ENGINE
120
HOSE FROM RADIATOR TO ENGINE
130
HOSE FROM TRANSMISSION TO ENGINE,5 746785
140
FITTING OIL LINE CONNECTION
140
FITTING SUCTION LINE TO TRANSMISSION
140
FITTING SUCTION LINE TO TRANSMISSION
140
FITTING SUCTION LINE TO TRANSMISSION
140
FITTING LINE CONNECTIONS
170
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
170
CLAMP HOSE TO FITTING AND TO OIL TANK
170
CLAMP , Replaced By: N916017011001
170
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
170
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
170
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
170
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
170
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
170
CLAMP , Replaced By: N000000000667
180
CLAMP , Replaced By: N000000001045
180
CLAMP , Replaced By: N916016010211
180
CLAMP CABLE HARNESS MOUNTING
190
SCREW OIL LINE TO RADIATOR
190
SCREW AT FILTER BRACKET
200
NUT PUMP TO BRACKET
200
NUT AT FILTER BRACKET
200
NUT AT FILTER BRACKET
200
NUT , Replaced By: N913004006001
240
BRACKET FUEL LINES TO TRANSMISSION
240
BRACKET FUEL LINES TO TRANSMISSION
250
BRACKET LINES TO ENGINE
250
BRACKET LINES TO ENGINE
250
BRACKET LINES TO ENGINE
250
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
250
BRACKET LINES TO ENGINE
280
CLAMP CABLE HARNESS MOUNTING
280
CLAMP CABLE HARNESS MOUNTING
280
CLAMP CABLE HARNESS MOUNTING
280
CLAMP , Replaced By: N916016010211
280
CLAMP LINE MOUNTING
280
CLAMP , Replaced By: N000000001045
290
CLAMP HOSE TO FITTING AND TO OIL TANK
290
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
300
SCREW CLAMP MOUNTING M 6X16
300
SCREW CLAMP MOUNTING M 6X16
300
SCREW CLAMP MOUNTING M 6X16
300
SCREW , Replaced By: N000000001146
300
SCREW , Replaced By: N304017006016
300
SCREW BRACKET TO SUPPORT M 16X20
300
SCREW , Replaced By: N007985006193
300
SCREW AT FILTER BRACKET
300
SCREW PUMP TO BRACKET
300
SCREW PUMP TO BRACKET
300
SCREW BRACKET TO BRACKET M 6X35 MM
300
SCREW BRACKET TO BRACKET M 6X35 MM
300
SCREW COVER PLATE TO BRACKET
300
SCREW COVER PLATE TO BRACKET
310
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
320
NUT AT FILTER BRACKET
320
NUT AT FILTER BRACKET
320
NUT AT FILTER BRACKET
320
NUT , Replaced By: N913004006001
320
NUT BALL PIVOT TO LEVER
320
NUT PUMP TO BRACKET
330
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET , NOT USED
999
BRACKET , NOT USED
999
BRACKET , NOT USED
999
RADIATOR WATER
999
RADIATOR , Replaced By: A6765001603
999
RADIATOR , Replaced By: A6775002003
999
RADIATOR
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW CONNECTION DELIVERY LINE TO STEERING
